Mitsubishi 2G10 Engine
![]() | |
production | Mitsubishi Motors Corporation |
manufacturing period | 1968 to 1976 |
type | 2-stroke, straight 2-piston reed valve |
fuel | petrol |
Displacement | 0.36L (359cc) |
Inner Diameter x Stroke | 59.6mm x 62.0mm |
The Mitsubishi 2G10 is a water- cooled 2-stroke in-line 2-cylinder gasoline engine for the company's mini vehicles manufactured by Mitsubishi Motors (originally Mitsubishi Heavy Industries ) .
It is a liquid-cooled engine with a cast -iron cylinder block and crankcase , developed to replace the air-cooled ME24 engine . It was first installed in the company's first Minica (late model, LA23) in 1968 , and later installed in the company's Minica Skipper and the second generation Minicab truck (late model). , Furthermore, it continued to be produced for a long time after the change to yellow number.
The reason why the name changed from the ME24 type is that in 1967 the engine naming convention in Mitsubishi cars was changed . 2G1 indicates the first series of two -cylinder petrol engines , and 2G10 0 indicates that it was the first engine developed in the series . In addition, the 2G10 type indicated that there were various variations by adding a hyphen and a number after the model name (2G10 -5 as an example).
The 2G10 type did not officially have name , but the air cleaner box was painted in a different color depending on the model it was installed on, and it was nicknamed the red engine or gold engine .
The successor is the 2G2 series , a 4-stroke version of the 2G10 type that appeared in September 1972. The shift to 4-stroke was in anticipation of tightening automobile exhaust gas regulations , and was positioned as the decisive blow for the Mitsubishi Clean Air System (MCA) for mini vehicles. However, the 2G10 continued to be manufactured as a low-end engine until the standard for light vehicles was expanded to 550 cc in January 1976 .
PERFORMANCE: Standard
max power (DIN): 32 hp at 8,000 rpm
max torque (DIN): 22 1b ft, 3 kg m at 5,500 rpm
max engine rpm: 8,700; 88.9 hp/l
max speeds: (I) 20 mph, 32 km/h; (II) 32 mph, 51 km/h; (III) 48 mph, 78 km/h; (IV) 71 mph, 115 km/h
power-weight ratio: 34.8 lb/hp, 15.8 kg/hp
De Luxe, Skipper,FL Coupé
max power (DIN): 36 hp at 8,500 rpm
max torque (DIN): 23 1b ft, 3.2 kg m at 6,500 rpm
max engine rpm: 9,000; 100.3 hp/l.
max speeds: (I) 21 mph, 33 km/h; (II) 33 mph, 53 km/h; (III) 50 mph, 80 km/h; (IV) 75 mph, 120 km/h
power-weight ratio: 31.9 lb/hp, 14.4 kg/hp.
Used in
- 1968-1969 Mitsubishi Minica Model LA23
- 1969-1976 Minica Model A101/101V
- 1971-1972 Mitsubishi Minica Skipper A101
- 1972-1976 Mitsubishi Minicab W T131
Technical
-

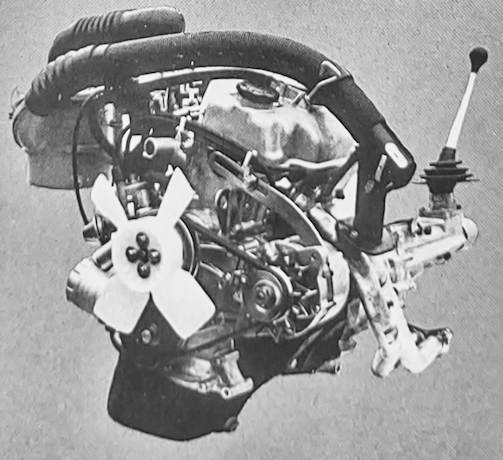

Mitsubishi 2G1 engine Technical details and specifications (1968-1976)
ENGINE
front. 4 stroke
2 cylinders, in line
Engine capacity:21.9 cu in, 359 cc
bore and stroke: 2.44 x 2.35 in, 62 x 59.6 mm
compression ratio: 9:1 De Luxe 9.5:1
cast Iron cylinder block
light alloy head
3 crankshaft bearings
valves: overhead, rockers
camshafts: l, overhead
lubrication: rotary pump, full flow filter
1 Mikuni-Solex downdraught twin barrel carburettor
fuel feed: mechanical pump
water cooled© Motor car History
Performance specifications
engine type
2-stroke in-line 2-cylinder
Displacement
359cc
bore x stroke
62.0 x 59.6mm
fuel
Automix separate lubrication type, gasoline
Maximum output
2G10 Minica LA23 Super Deluxe
23PS (17kW) / 5500rpm
2G10-1 First Generation "Red Engine"
28PS (21kW) / 6000rpm
2G10-2 "Gold Engine"
38PS (28kW) / 7000rpm
2G10-4 2nd Generation "Red Engine"
34PS (25kW) / 6500rpm
2G10-5 3rd Generation "Red Engine"
31PS (23kW) / ?rpm
Maximum torque
2G10 Minica LA23 Super Deluxe
33 N⋅m (24 lb⋅ft) / 5000 rpm
2G10-1 First Generation "Red Engine"
35 N⋅m (26 lb⋅ft) / 5000 rpm
2G10-2 "Gold Engine"
38.3 N⋅m (28 lb⋅ft) / 6500 rpm
2G10-5 3rd Generation "Red Engine"
37 N⋅m (27 lb⋅ft) / ?rpm
