Info
Volvo S40 Second generation
2004–2012 | |
---|---|
![]() | |
Overview | |
Production | 2004–2012 |
Assembly | Ghent, Belgium (by Volvo Cars Ghent factory) Pretoria, South Africa Shah Alam, Malaysia Chongqing, China |
Body and chassis | |
Body style | 4-door sedan 5-door station wagon (as V50) |
Layout | Front engine, front-wheel drive / four-wheel drive |
Platform | Volvo P1 platform |
Related | Mazda3 Ford Focus Volvo C30 Volvo C70 |
Powertrain | |
Engine | 1.6 I4 2.0 E-85/Petrol I4 2.5T I5 1.6D I4 2.0D I4 2.0D I5 2.4D I5 |
Transmission | 5-speed manual 6-speed manual 5-speed Geartronic 6-speed Geartronic |
Dimensions | |
Wheelbase | 2,640 mm (103.9 in) |
Length | 2004–2005 S40: 175.9 2006–2007 S40: 176.2 2004–2007 V50: 4,514 mm (177.7 in) 2008–2012 S40: 176.5 in 2008–2012 V50: 4,522 mm (178.0 in) |
Width | 1,770 mm (69.7 in) |
Height | S40 FWD: 1,452 mm (57.2 in) S40 AWD: 1,470 mm (57.9 in) V50: 1,457 mm (57.4 in) |
Curb weight | 1399–1426 kg (3084–3144 lb) |
Introduced in the middle of the 2004 model year, the second generation S40 (known as the 2004.5 Volvo S40) introduced a new design based on the Volvo P1 platform built at the Volvo Cars factory in Ghent, Belgium. At the same time, the V40 was replaced by the V50 estate, also based on the P1 platform and built in Ghent. The S40 was nominated for the World Car of the Year award for 2005 and won the Canadian Car of the Year Best New Sport Compact award for 2005. It was also elected the South African Car of the Year for 2005 by the South African Guild of Motoring Journalists.
The chassis for this car and the majority of its components were developed by Volvo, however similar mechanical components can be found in the Mazda3 and the European Ford Focus. The engine, a 2.5L 5 cylinder (B5254T3, and B5254S respectively for the turbo and naturally aspirated models) is the latest generation of Volvo's 5 cylinder engines. These inline fives have been continually developed by Volvo since the debut of the engine in the 850, in 1993. The top of the line S40 T5 AWD, as well as the 2.4 and 2.4i, powertrain is still made by Volvo. The transmission is developed with Getrag at Volvo's Koping Transmission Center in Sweden, and the AWD system bought from Haldex Traction of Sweden.
The S40 T5 (one of the several variants of the S40) features a 2.5 L (2521 cc) five-cylinder fuel-injected engine with a light-pressure turbocharger. The valvetrain has four valves per cylinder and is a DOHC design. The engine is transversely mounted at the front of the vehicle and drives the front wheels, as was with the first generation.
A new range of engines and transmissions has been introduced at the end of May 2010 (see "Engine specifications" below). In North America, however, the naturally aspirated 5-cylinder engine, all-wheel drive, and manual transmission were all dropped for the 2011 model year, leaving only the automatic, front-wheel drive T5 in base and R-Design trims.
The 2011 model year was the last for the S40 and V50 in the United States and Canada.
2008 facelift
The S40 was refreshed for 2008. Improvements include improved audio systems, increased storage space and new safety features like Emergency Brake Lights which flash rapidly during hard braking to alert traffic behind the car. The new S40 also comes with optional Active Bi-Xenon headlights which point the light beam in the direction of the road as it curves (standard in SE Lux models). There is also a camera which can be located on the side mirrors which alerts the driver of passing vehicles beside the car. The camera is optional on all models. This is given the name BLIS (Blind Spot Information System). Volvo released the 2.0 litre diesel Geartronic on the third week of February 2008 except in Ireland where it was released in the last week of May (due to delivery intervals).
The T5 engine received a performance increase of 9 hp (6.7 kW), giving an output of 227 hp (169 kW). The D5 engine became available with a manual gearbox offering 400 N·m (300 ft·lbf) of torque and an automatic transmission offering 350 N·m (260 ft·lbf) in the second half of 2007.
The 2009 model saw rear-end trunk lid changes, changing the badge from "VOLVO" to "V O L V O" with spaces between the letters and larger characters, as in the newer Volvo models.
In 2010, the new, larger, circular Volvo logo appeared on the front grille.
Engine specifications (2011 model)
From the end of May 2010, a new range of engines is available for the so-called "2011 model".
The range now includes three petrol engines (1.6, 2.0 and T5, the latter only available with front-wheel drive and automatic transmission), four Diesel engines (the existing DRIVe and the new D2, D3 and D4) and the 2.0F Flexible-fuel engine that can run either on normal petrol or E85, an ethanol-petrol mixture. The updated 2.0 and T5 and the new D2, D3 and D4 are compliant with the Euro 5 emission standard (the rest are Euro 4-compliant), and the DRIVe includes a start-stop system for reduced fuel consumption and emissions. New 6-speed gearboxes are used in the D2 (manual: B6 D2), D3 and D4 (manual: M66D, automatic: Aisin AWF21).

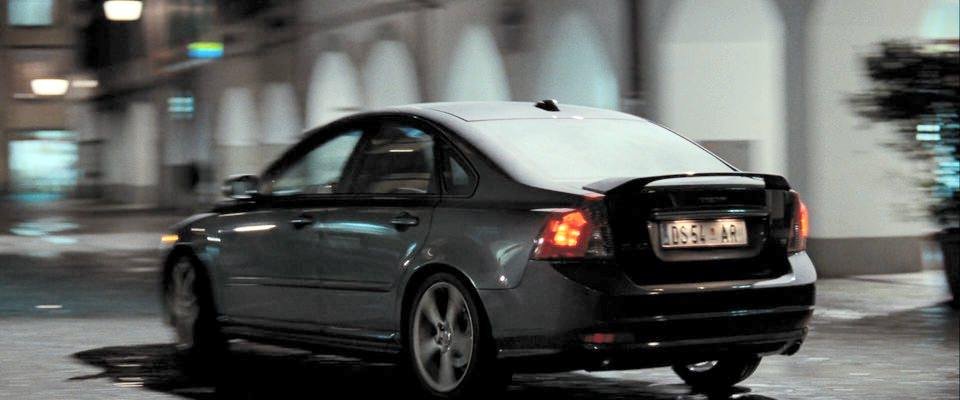

James Bond Quantum of Solace 2008 Volvo S40 T5 in Bregenz, Austria
Technical
-
Specification S40 1.6 S40 2.0 S40 T5 S40 DRIVe S40 D2 S40 D3 (*) S40 D4 S40 2.0F FLEXIFUEL Engine Type 4-cyl. 4-cyl. 5-cyl. Turbo 4-cyl. Turbo 4-cyl. Turbo 5-cyl. Turbo 5-cyl. Turbo 4-cyl. Fuel Petrol Petrol Petrol Diesel Diesel Diesel Diesel Petrol/E85 Valves 16 16 20 16 8 20 20 16 cc 1596 1999 2521 1560 1560 1984 1984 1999 Power kW 74 107 169 80 84 110 130 107 PS 100 145 230 109 115 150 177 145 @rpm 6000 6000 5000 4000 3600 3500 3500 6000 Torque Nm 150 185 320 240 270 350 400 185 @rpm 4000 4500 1500-5000 1750 1750 1500-2750 1750-2750 4500 Transmission manual 5-speed 5-speed — 5-speed 6-speed 6-speed 6-speed 5-speed auto — — 5-speed — — 6-speed 6-speed — Top speed manual 185 km/h 210 km/h — 190 km/h 195 km/h N/A (*) 220 km/h 210 km/h auto — — 235 km/h — — N/A (*) 215 km/h — 0–100 km/h manual 11.9 s 9.5 s — 11.4 s 11.4 s 9.5 s 8.7 s 9.5 s auto — — 6.8 s — — 9.6 s 8.8 s — Fuel consumption l/100 km (urban/extra-urban/combined)
manual 9.2/5.8/7.1 10.8/5.7/7.6 — 4.9/3.4/3.9 5.2/3.8/4.3 7.0/4.0/5.0 7.0/4.0/5.0 10.9/5.8/7.7 auto — — 13.5/6.5/9.0 — — 7.6/4.5/5.6 7.6/4.5/5.6 — CO2 emissions manual 169 g/km 176 g/km — 104 g/km 114 g/km 134 g/km 134 g/km 183 g/km auto — — 211 g/km — — 149 g/km 149 g/km — Options: Equipment included on some trim levels - Audio remote
- Body coloured bumpers
- CD
- CD Multichanger
- Cloth seat trim
- Cruise control
- Electric driver`s seat
- Front fog lights
- Headlight washers
- Heated seats
- Height adjustable drivers seat
- Isofix child seat anchor points
- Leather seat trim
- Lumbar support
- Parking sensors
- Partial leather seat trim
- Sat Nav
- Service indicator
