|1961 to 1965|
|Manufacturer||Triumph Motor Company|
|Assembly||United Kingdom Australia|
|Body and chassis|
|Body style||2-door roadster|
|Engine||2138 cc I4|
|Wheelbase||2,238 mm (88.1 in)|
|Length||3,962 mm (156.0 in)|
|Width||1,461 mm (57.5 in)|
|Height||1,270 mm (50.0 in)|
|Curb weight||966 kg (2,130 lb)|

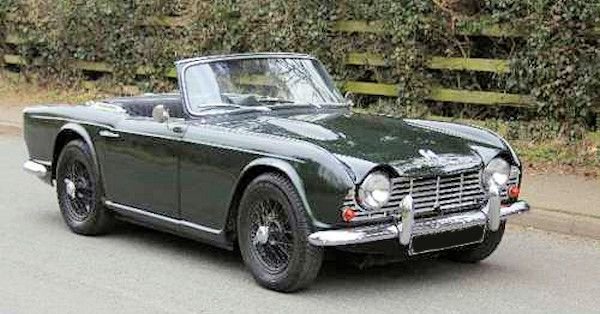

The Triumph TR4 is a sports car built in the United Kingdom by the Standard Triumph Motor Company and introduced in 1961. Code named "Zest" during development, the car was based on the chassis and drivetrain of the previous TR sports cars, but with a modern Michelotti styled body. 40,253 cars were built during production years. The TR4 proved very successful and continued the rugged, "hairy-chested" image that the previous TRs had enjoyed.
Styling and coachwork
The new TR4 body style did away with the classical cutaway door design of the previous TRs to allow for wind-down (roll-up) windows (in place of less convenient side-curtains), and the angular rear allowed a boot (trunk) with considerable capacity for a sports car.

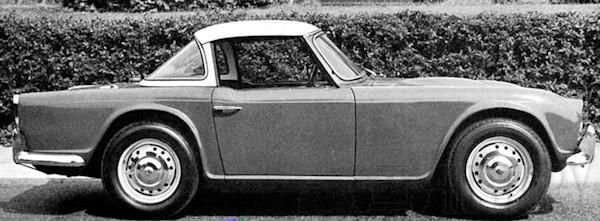

Advanced features included the first use of adjustable fascia ventilation in a production car and the option of a unique hard top that consisted of a fixed glass rear window (called a backlight) with an integral rollbar and a detachable, steel centre panel (aluminium for the first 500 units). This was the first such roof system on a production car and preceded by 5 years the Porsche 911/912 Targa, which has since become a generic name for this style of top.
On the TR4 the rigid roof panel was replaceable with an easily folded and stowed vinyl insert and supporting frame called a Surrey Top. The entire hard top assembly is often mistakenly referred to as a Surrey Top. In original factory parts catalogues the rigid top and backlight assembly is listed as the Hard Top kit. The vinyl insert and frame are offered separately as a Surrey Top.
Features such as wind-down windows were seen as a necessary step forward to meet competition and achieve good sales in the important US market, where the vast majority of TR4s were eventually sold. Dealers had concerns that buyers might not fully appreciate the new amenities, therefore a special short run of TR3As (commonly called TR3Bs) was produced in 1961 and '62.

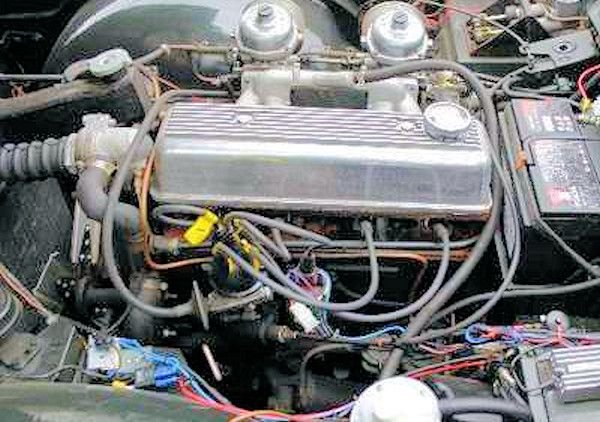

The pushrod 4-cylinder engine based on the early design of the Ferguson tractor engine, was continued from the earlier TR2/3 models, but the displacement was increased from 1991 cc to 2138 cc in the TR4 by increasing bore size. Gradual improvements in the manifolds and cylinder head allowed for some improvements culminating in the TR4A model.
The 1991 cc engine became a no-cost option for those cars destined to race in the under-two-litre classes of the day. Some cars were fitted with vane-type superchargers, as the three main bearing engine was liable to crankshaft failure if revved beyond 6,500 rpm; superchargers allowed a TR4 to produce much more horse-power and torque at relatively modest revolutions.
Basic 2.0L engine for 2.0L competition use
- engine capacity 121.49 cu in1,991 cu cm
- bore and stroke 3.27 3.62 in, 83 mm
- max power (SAE) 101 hp at 5,000 rpm
- max torque 118 1b ft, 16&3 m at rpm
- 8.5 compression ratio
- 50.7 hp/l specific power max speed 103 mph, km/h.
The standard engine produced 105 bhp (78 kW) SAE but, supercharged and otherwise performance-tuned, a 2.2-litre I4 version could produce in excess of 200 bhp (150 kW) at the flywheel. The TR4, in common with its predecessors, was fitted with a wet-sleeve engine, so that for competition use the engine's cubic capacity could be changed by swapping the cylinder liners and pistons, allowing a competitor to race under different capacity rules (i.e. below or above 2 litres for example).Standard inline-four engine.
- engine capacity 130.46 cu in, 2.138 cu cm
- fuel consumption 24.5 m/imp gal. 20.4 m/US gal
- max speed 110 mph. 177,1 km/h
- max power (SAE): 105 hp at 4,750 rpm
- max torque (SAE): 85 lb 11.7, kg m at 3,350 rpm
- max engine rpm: specanc power: 49 hp/l
- power weight ratio: 196 lb/hp, 8.9 kg/hp
- acceleration: standing 1/4 mile 17.9 sec, O—50 mph (0—80 km/h 8.2 sec
Other key improvements over the TR3 included a wider track front and rear, slightly larger standard engine displacement, full synchromesh on all forward gears, and rack and pinion steering. In addition, the optional Laycock de Normanville electrically operated overdrive Laycock Overdrive could now be selected for 2nd and 3rd gear as well as 4th, effectively providing the TR4 with a seven-speed manual close ratio gearbox.
The TR4 was originally fitted with 15x4.5" disc wheels. Optional 48-lace wire wheels could be ordered painted the same colour as the car's bodywork (rare), stove-enamelled (matte silver with chrome spinners, most common) or in matte or polished chrome finishes (originally rare, but now more commonly fitted). The most typical tyre originally fitted was 155x15 bias ply. In the US at one point, American Racing alloy (magnesium and aluminium) wheels were offered as an option, in 15x5.5" or 15x6" size. Tyres were a problem for original owners who opted for 60-spoke wire wheels, as the correct size radial-ply tyre for the factory rims was 155x15, an odd-sized tyre at the time only available from Michelin at considerable expense. The much more common 185x15 radials were too wide to be fitted safely. As a result, many owners had new and wider rims fitted and their wheels re-laced.
Optional :wire wheels and knock-on hubs,competition suspension and hardtop.
The TR4 had a number of racing successes in America, primarily through the efforts of the Californian engineer Kas Kastner and his top driver, Bob Tullius. In 1962 the TR4 won the E Production national championship, following which the SCCA reclassified the car to D Production, and Tullius won that class title in 1963 and ’64. Soon after the TR4 was introduced Kas Kastner along with Mike Cook, who was in the advertising department at Triumph in New York City, convinced the company to provide three new TR4s to race in the 12 Hours of Sebring race in 1963. Beginning in Sept 1962 the cars were prepared in California, where Kastner was Service Supervisor for Triumph. The cars were then flown to Florida for the endurance race in March 1963. These cars were driven by Mike Rothschild and Peter Bolton from England, Bob Tullius, Charlie Gates, Ed Deihl, Bob Cole, Bruce Kellner and Jim Spencer and finished overall 22nd, 24th, and 35th of 65 entries, and 1st, 2nd and 4th in the 2.5 GT class. This was the beginning of the Triumph Competition Department Kastner headed for several years and used to publicize and market the TR4. The next year a privateer TR4 finished dead last in the 1964 running of the Sebring 12-hour race and Kas Kastner returned to Sebring in 1966 with four carefully prepared TR4As, three of which finished winning the class. In 1966 at Sebring, Bob Tullius threw a piston in the most highly tuned car and did not finish. Perhaps the greatest racing victory for the TR4A was at Daytona, where a Kastner-prepared car driven by Charlie Gates won the 1965 SCCA D Modified Championship against Ferraris and other prepared race car exotics.
In 1965, the TR4A with IRS or independent rear suspension superseded the TR4. Apart from the rear suspension, which used trailing arms and a differential bolted to the redesigned chassis frame and a number of small styling changes and refinements, the two models appear nearly identical. In fact, an estimated 25 per cent of TR4As were not equipped with IRS, but instead reverted to a live axle design similar to the TR4, which was adapted to fit the new chassis.
Perhaps the rarest production TR4 model is the Dové GTR4 (and GTR4A) – a TR4 rebuilt as a coupé by a specialist coachbuilder for the Dove dealership in Wimbledon, London; only 43 were produced. The conversions were by Harrington Motor Bodyworks, mostly known for construction of the Harrington Alpine, a similarly converted Sunbeam Alpine. Although most were based on the TR4 model, the sales brochure pictures a TR4A version of these cars. The engines came with such period extras as a heater in the water jackets to assist early morning starts. Some were fitted with fully balanced motors by Jack Brabham Motors or Laystall Engineering in London, which was offered as an option in the sales catalogue. Two jump seats were placed behind the driver's seat using identical materials to the originally equipped standard TR4. A wood-rimmed wheel with riveted perimeter was fitted to some models along with auxiliary lamps under the front bumper bars. A metallised identifying sticker with "Dové" on it was fitted to the glovebox lid. On the rear deck to the left below the lid, was another identifying badge with the Dové logo. The side window glasses were specially shaped with a flat top edge to fit the new roof line. Each Dové was an individual order and some variation occurred in each car. Tinted swing-down see-through acrylic sun visors were custom fitted. The aerodynamics of the Dové gave it good acceleration from 80 mph (130 km/h) to 100 mph (160 km/h) in comparison with the standard version of the car. They were originally conceived by L.F. Dove & Co. as their attempt to fill the GT category for Europe, hence the French nomenclature with an inflection at the end of the word Dové. The cars were priced at £1250, almost as much as a Jaguar E-Type, and as such were uncompetitive price-wise. One example was exported for sale through Australian Motor Industries in Melbourne, Australia. A road test of one of these cars was reported in Autocar magazine dated 7 June 1963. Up to a dozen of the cars are known to still exist.
- A very rough example of the Triumph TR4 is seen in the movie, Alvin and the Chipmunks as Dave's Car.
- A TR4 roadster can also be seen in the US 1960's TV series, My Favorite Martian
- A TR4 also features in the movie The Heartbreak Kid as Charles Grodin's car.
- A TR4 is central to the story of the 1964 film Échappement libre (Backfire in the USA).
- Triumph TR4A roadster can be seen in the German TV crime series "Tatort" from 1971 with the title "Kressin und der Laster nach Lüttich (Liege)
A Triumph TR4 in Alvin and the Chipmunks Movie from 2007
Triumph TR4 Technical details and specifications (1961-1965)
location front, 4 stroke
cylinders: 4, vertical in line
bore and stroke: 3.39 x 3.62 in, 86 92 mm
engine capacity: 130.46 cu in. 2,138 cu cm
compression ratio: 9
cylinder block: cast iron
cylinder head: cast iron. wet liners
camshafts: 1 Side
crankshaft bearings: 3
valves: 2 per cylinder, overhead. in line. push-rods and rockers
lubrication: rotary pump. full flow filter
lubricating system capacity: 11 imp pt 13.11 US pt.
carburation: 2 SU type H6 semi-downdraught carburettors
fuel feed: mechanical pump
cooling system: water
driving wheels: rear
clutch single dry plate hydraulically controlled
gearbox: mechanical; gears: 4 + reverse
synchromesh gears: all
gearbox ratios: I 3.140 II 2.010, III 1.330 IV 3.220
(option) Laycock-de Normanville: overdrive on 2nd,3rd and 4th
gear lever location: central
final drive: hypoid bevel
axle ratio: 3.700 (option) 4.100
type box-type ladder frames X cross members
front suspension: independent, wishbones, coil springs, antl-roil bar, telescopic dampers
rear suspension: rigid axle, semi-elliptic leafsprings. lever dampers.
turns of Steering lock to lock: 3.25.
turning circle (between walls): 35.4 ft 10.8 m
front disc (diameter 9 in, 229mm) rear drums
battery: 57 Ah
generator type: dynamo, 264 W
igniton distributor: Lucas
DIMENSIONS AND WEIGHT
wheel base: 88.18 in 2.240 mm
front track: 49.02 in, 1.245 mm
rear track: 48.03 in, 1.220 mm
overall length: 155.90 in 3,960 mm
overall width; 57.87 in 1.470 mm
overall height: 50 in, 1,270 mm
ground clearance: 5.90 in 150 mm
dry weight: 2,072 1b, 940 kg
distribution of weight: 54% front axle, 46% rear axle
© Motor car History
Triumph TR4 Maintenance and Service Guide (1961-1965)
Fuel type: 100 oct petrol
Engine oil change: 11 imp pt, 13.11 US pt SAE 20 (winter) 30 (summer), change every 3,000 miles, 4800 km
Cooling capacitv: 12.80 imp ptv 15.43 US
Gearbox oil: 1.50 imp pt 1.69 US pt 0.8 SAE 90 change every 12,000 miles 19,300 km
Final drive oil: 1.50 imp pt, 1.69 US pt, 0.8 1, SAE change 6000 every miles, 9,700 km
Tappet clearances: inlet 0.010 in 025 mm,exhaust 0.010 in, 0.25 mm
Valve timing: inlet opens 17° before tdc and closes 57° afte bdc, exhaust opens 57° before bdc and closes 17° after tdc
Normal tyre pressure: front 22 psi, 1.5 atm, rear 24 psi, 1.7 atm
Tyres: 6.95 x'5 (option) 5.90 15
Fuel tank capacity: 11.7 imp gal, 14 US gal
Carrying capacity: 529 1b, 240 kg
© Motor car History
