Toyota W engine

1983 to 1995
Toyota W engine range and history
Manufacturer Hino Motors
Also called Hino W04D
Production 1983-1995
Combustion chamber
Configuration Inline-4
Displacement 4,009 cc (244.6 cu in)
Cylinder bore 104 mm (4.1 in)
Piston stroke 118 mm (4.6 in)
Cylinder block alloy cast iron
Cylinder head alloy cast iron
Valvetrain OHV
Compression ratio 17.9:1
Combustion
Fuel system direct injection
Fuel type diesel
Cooling system water-cooled
Output
Power output 86 kW (115 hp) @ 3200 rpm
Torque output 275 N·m (203 ft·lb) @ 2000 rpm
Dimensions
Length 898 mm (35.4 in)
Width 637 mm (25.1 in)
Height 762 mm (30.0 in)
Dry weight 340 kg (750 lb)



The Toyota W Engine is a water cooled straight-4 diesel engine.

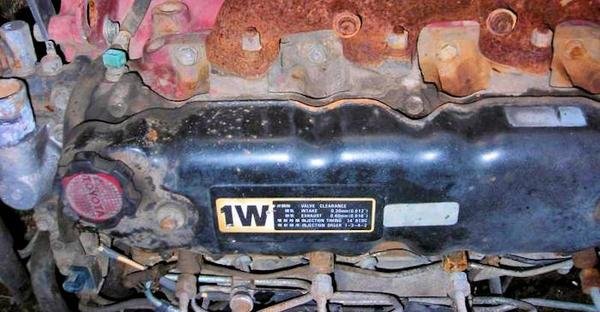

The Toyota 1W Engine was built by Hino Motors for use in Toyota Dyna and Toyoace light trucks in the Japanese market. It is a 4.0 L direct injection 8 valve OHV diesel engine. The equivalent Hino W04D engine is used for Toyota Dyna trucks and in current model Hino 300 Series trucks

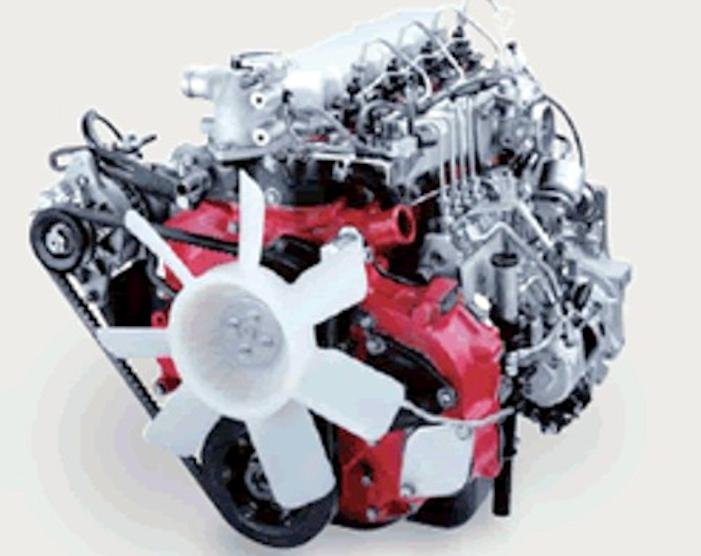

Hino W04D engine

This engine was also used and marinized by the American motorboat manufacturer Bayliner for use in their 32 Motoryacht from 1985-1995.

Applications

  • Toyota Dyna (WU26, WU40, WU50, WU90, WU95)
  • Toyota Toyoace
  • Toyota Type 73 Medium Truck (first generation)
