Mazda Porter 1st Generation
|Class||pickup truck, van|
|Engine||356 cc BA V-twin 358 cc DA OHV I4 577 cc V-twin 586 cc RA OHV I4|

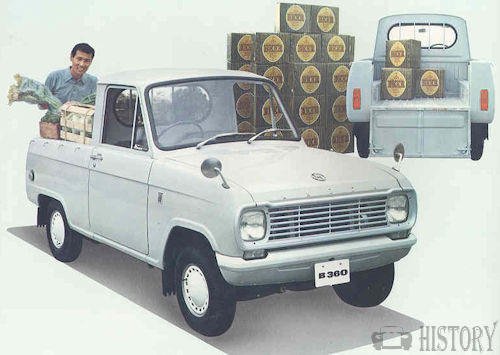

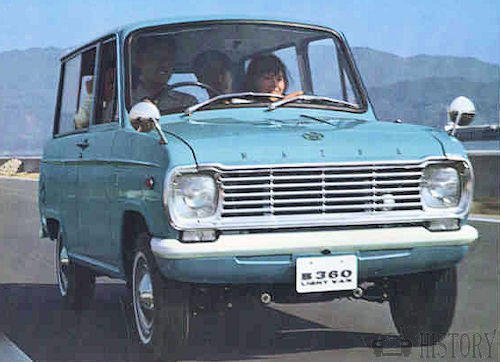

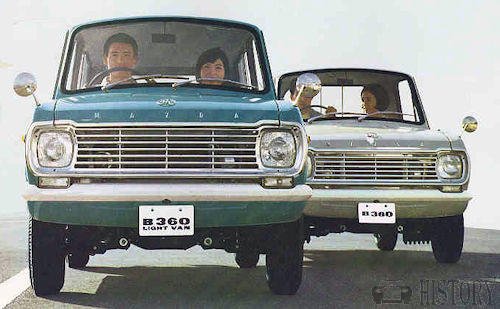

The mazda Porter Available either as a pickup truck (KBDB33) or a small van (KBDBV), the first Porter (E360 in export markets) was produced from November 1968 to April 1976. The car was closely based on the B360 predecessor, but with all-new body panels.

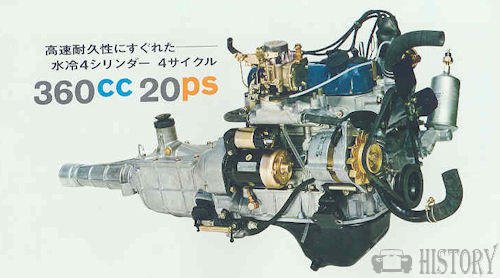

The initial engine was the carry-over four-stroke, 20 hp (15 kW) 358 cc I4 from the B360. The engine was changed to the Chantez' 35 hp (26 kW) 359 cc water-cooled, two-stroke two-cylinder in April 1973, which required some cosmetic changes (KBAA/KBAAV). In 1975 the Porter was modified to fit new, larger license plates and the engine downgraded to 32 hp (24 kW) to match new, stricter emissions regulations.
The wheelbase was 1,995 mm (78.5 in) with leaf springs in the rear, weight was 475 kg (1,047 lb) and maximum cargo capacity was 300 kg (661 lb) when first introduced.
Porter Cab (1st generation)
The Porter Cab (KECA53) was introduced in March 1969. It was a small, cabover pickup truck on a 1,835 mm (72.2 in) wheelbase, equipped with a live rear axle and a 23 PS (17 kW) at 5500 rpm, 359 cc water-cooled, two-stroke two-cylinder. This, the CC, was Mazda's first two-stroke engine. Top speed was 90 km/h (56 mph).
In 1970 new doors were developed, with sliding windows were exchanged for roll-down items, incorporating a quarter window. A ventilation vent was also added to the front. Like the Porter, the Porter Cab received the Chantez-derived AA engine in April 1973, which offered 30 PS (22 kW) at 6000 rpm, five less than in the Chantez. In January 1975, the Porter Cab too was lightly modified to fit the new larger license plates - hitherto, kei cars had carried smaller license plates than regular cars (230 mm (9.1 in) x 125 mm (4.9 in) rather than 330 x 165 mm). The Porter Cab, with its peculiar cowlings around the headlights carried an instantly recognizable "surprised" appearance.
Like the Porter before it, the Porter Cab was labelled E360 in export markets.
