Ford Mondeo Mk 5 (2013-2019)
Motor Cars
Britain
2010s

Ford Mondeo Mark 5 Fifth Generation

 (2013–2019)
Ford Mondeo Mark 5 Fifth Generation range
Also calledFord Fusion (United States)
Model years2013–2019
EnginePetrol engines and Flexible Fuel engines: 1.0 L EcoBoost I3 1.6 L EcoBoost I4 2.0 L EcoBoost I4 Diesel engines: 1.5L TDCi I4 2.0L TDCi I4
Transmission6-speed manual 6-speed 6F35 automatic (all engines)
Wheelbase2,850 mm (112.2 in)
Length4,869 mm (191.7 in)
Width1,852 mm (72.9 in)
Height1,476 mm (58.1 in)
Curb weight1,507–1,554 kg (3,322–3,426 lb)

The fifth generation Mondeo, also known as the 2013 Ford Fusion, was unveiled at the 2012 North American International Auto Show.

With a design team lead by Ford of Europe designer Chris Hamilton based in Detroit for the design and global launch phase, the new model takes many styling cues from the European Ford Evos concept unveiled in 2011 at the Frankfurt Motor Show, and the previous generation Ford Mondeo. Like the newest redesigns of the Focus and Fiesta before it, the new Mondeo is set on a global platform that is shared with the now identical Fusion, which will be sold in the U.S.

Euro NCAP Rating – 5 stars

Individual safety ratings
Adult Occupant:86%
Child Occupant:82%
Pedestrian:66%
Safety Assist:66%

At the Detroit Motor Show in January 2012, Ford presented the new Ford Fusion , which is largely identical to the Mondeo '13. Both models were developed in spring 2012 by the Vercarmodel Saro design studio . The Fusion has been available in North and South America since fall 2012 , with North America only being offered as a notchback sedan. Since its launch it is with a petrol engine and hybrid drive available, the plug-in hybrid Fusion Energi followed 2013. Produced is the merger initially exclusively in the Mexican Ford plant Hermosillo , and later inFlat Rock (Michigan) .

Ford Mondeo Mark 5 Fifth Generation side view

The fifth generation Mondeo is again available with a hatchback or notchback and as a station wagon. As a limousine , it now has coupé-like trains. The notchback variant is only offered as a hybrid, Vignale or Vignale hybrid. In contrast to its predecessor, this Mondeo was originally intended to be marketed worldwide from autumn 2013. The tournament was specially developed for Europe and should only be produced and offered here. Due to the closure of the Belgian Ford plant in Genk , the market launch was postponed by around a year.

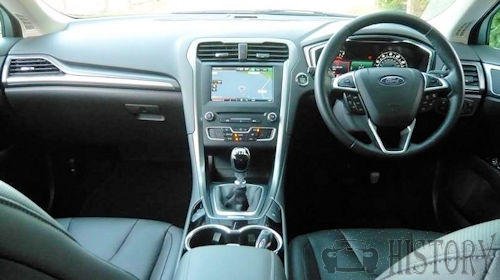

Ford Mondeo Mark 5 Fifth Generation dash

The range removes the former V6 3.0 engine, and on launch will have a complete range of Ford EcoBoost engines.All engines are offered with a six-speed manual transmission or a six- speed automatic transmission . For the first time since the start of the model series, all-wheel drive will also be available again , which can also be combined with the diesel engines and automatic transmissions. The optionally available LED headlights (Ford Dynamic LED) are also new . As further innovations are assistance systems such as lane departure warning , adaptive cruise control , parking assistant and a Blind Spot Assist announced.

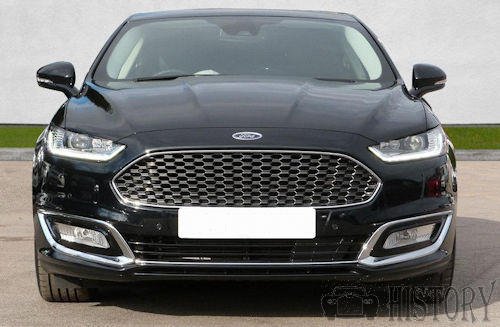

Ford Mondeo Mark 5 Fifth Generation front view



From Autumn 2013, there will be added a three-cylinder 123 bhp Ecoboost, to produce just 125g/km of CO2 emissions.For the market launch on February 7, 2015 stand next to the EcoBoost- Gasoline engines with 1.5 and 2.0 liters displacement, diesel engines with 1.6 and 2.0 liters to choose from. There is also the Mondeo as a full hybrid version with a 2.0-liter gasoline engine which, together with the electric motor, produces 140 kW. Later the car will also be available as a plug-in hybrid Mondeo Energi . Both hybrid versions should be able to drive purely electrically up to a speed of 100 km / h.

1.0 EcoBoost Performance

Power123 bhp
Top Speed124 mph
0-60 mph11.6 secs
Torque170 Nm, 125 ft-lb
CO2 Emissions119 g/km
Euro Emissions Standard6
Miles Per Tank750 miles

2.0 EcoBoost Performance

Power236 bhp
Top Speed149 mph
0-60 mph7.6 secs
Torque340 Nm, 251 ft-lb
CO2 Emissions171 g/km
Euro Emissions Standard6
Miles Per Tank627 miles


In 2014/2015 a plug-in hybrid badged as an Energi will be added, and powered by a lithium-ion battery pack and 185 bhp Atkinson cycle 2.0-litre petrol engine.

Luggage Capacity541 litres
Unbraked Towing Weight750kg
Braked Towing Weight1800kg

Ford Mondeo Mark 5 Fifth Generation rear view

Edited By
Created
09 April 2013
Updated
06 October 2021
Related items
Vehicles launched in 2013 | Ford Mondeo | Ford EcoBoost

Technical

Technical

  • Ford Mondeo Technical data  Specs & Dimensions (2013 onwards)

    Gasoline engines



    1.0 EcoBoost

    1.5 EcoBoost

    2.0 EcoBoost

    2.0 hybrid

    Construction period

    02 / 2015–05 / 2018

    08 / 2014–05 / 2018

    05 / 2018-09 / 2019

    08/2014–05/2018

    since 08/2014

    Engine characteristics

    Engine type

    R3 petrol engine

    R4 petrol engine



    Number of valves per cylinder

    4th



    Valve control

    DOHC , timing belt

    DOHC, chain

    DOHC, chain



    Mixture preparation

    Direct injection



    Engine charging

    Turbocharger , intercooler

    -



    cooling

    Water cooling



    Bore × stroke

    71.9 mm × 82.0 mm

    79.0 mm × 76.5 mm

    87.5 mm x 83.1 mm

    87.5 mm x 83.1 mm



    Displacement

    998 cc

    1499 cc

    1999 cc

    1999 cc



    maximum power

    92 kW (125 hp) at 6000 min -1

    118 kW (160 hp) at 6000 min -1

    121 kW (165 hp) at 6000 min -1

    149 kW (203 hp) at 5400 min -1

    176 kW (240 hp) at 5300 min -1

    138 kW (187 hp) at 6000 min -1



    max. torque

    170 Nm at 1400 to 4500 min -1

    240 Nm at 1600-4000 min -1

    242 Nm at 1600-4000 min -1

    345 Nm at 2700-3500 min -1

    345 Nm at 2300 to 4900 min -1

    300 Nm at 1750 to 4500 min -1



    Power transmission

    Drive, as standard

    Front wheel drive



    Drive, optional

    -



    Gearbox, as standard

    6-speed manual transmission

    6-stage automatic

    CVT transmission



    Gearbox, optional

    -

    6-stage automatic

    -



    Measured values ​​(limousine)

    Top speed

    200 km / h

    222 km / h
    (214 km / h)

    214 km / h
    (209 km / h)

    232 km / h

    240 km / h

    187 km / h



    Acceleration, 0-100 km / h

    12.0 s

    9.2 s
    (9.1 s)

    10.3 s
    (11.1 s)

    8.7 s

    7.9 s

    9.2 s



    Fuel consumption over 100 km (combined)

    5.1 l super

    5.8 l super
    (6.3 l super)

    6.3–6.6 l super
    (7.3–7.4 l super)

    7.3 l super

    4.2 l super



    CO 2 emissions (combined)

    119 g / km

    134 g / km
    (146 g / km)

    144–150 g / km
    (163–167 g / km)

    169 g / km

    99 g / km



    Emissions standard according to EU classification

    Euro 6

    Euro 6d-TEMP

    Euro 6

    EUR 6
    (from 02/2019: EUR 6d-TEMP)
    (from 09/2020: EUR 6d)



    Measured values ​​(combi)

    Top speed

    195 km / h

    217 km / h
    (209 km / h)

    212 km / h
    (207 km / h)

    227 km / h

    235 km / h

    187 km / h



    Acceleration, 0-100 km / h

    12.1 s

    9.3 s
    (9.2 s)

    10.4 s
    (11.2 s)

    8.8 s

    8.0 s

    9.4 s



    Fuel consumption over 100 km (combined)

    5.2 l super

    5.9 l super
    (6.5 l super)

    6.4–6.6 l super
    (7.5–7.6 l super)

    7.5 l super

    4.4-5.0 l super



    CO 2 emissions (combined)

    120 g / km

    137 g / km
    (152 g / km)

    145–152 g / km
    (168–172 g / km)

    174 g / km

    101-113 g / km



    Emissions standard according to EU classification

    Euro 6

    Euro 6d-TEMP

    Euro 6

    EUR 6
    (from 02/2019: EUR 6d-TEMP)
    (from 09/2020: EUR 6d)


    • Values ​​in round brackets stand for the automatic transmission.
    • The availability of the engines depends on the model, equipment and market.
    • Hybrid for station wagon since 02/2019

    Diesel engines



    1.5 Duratorq TDCi

    1.5 Duratorq TDCi ECOnetic

    1.6 Duratorq TDCi

    1.6 Duratorq TDCi ECOnetic

    2.0 EcoBlue

    2.0 Duratorq TDCi

    2.0 Duratorq BiTurbo TDCi

    Construction period

    05 / 2015–05 / 2018

    08/2014 - 05/2015

    since 02/2019

    08/2014–02/2019

    05 / 2015–05 / 2018

    Engine characteristics

    Engine type

    R4 diesel engine

    Number of valves per cylinder

    2

    4th

    Valve control

    OHC , timing belt

    DOHC , timing belt

    Mixture preparation

    Common rail injection

    Engine charging

    Turbocharger , intercooler

    Bi-turbocharger , intercooler

    cooling

    Water cooling

    Bore × stroke

    73.5 mm x 88.3 mm

    75.0 mm x 88.3 mm







    85.0 mm × 88.0 mm

    Displacement

    1499 cc

    1560 cc

    1995 cc

    1997 cc

    maximum power

    88 kW (120 hp) at 3600 min -1

    85 kW (115 hp) at 3600 min -1

    88 kW (120 hp) at 3500 min -1

    110 kW (150 hp) at 3500 min -1

    140 kW (190 hp) at 3500 min -1

    110 kW (150 hp) at 3750 min -1

    132 kW (180 hp) at 3500 min -1

    154 kW (209 hp) at 3750 min -1

    max. torque

    270 Nm at 1750-2500 min -1

    340 Nm at 1,750 to 2,250 min -1

    370 Nm at 2000 to 2500 min -1

    400 Nm at 2000-3000 min -1

    350 Nm at 1750 to 2750 min -1

    400 Nm at 2000 to 3250 min -1

    450 Nm at 1750 to 3000 min -1

    Power transmission

    Drive, as standard

    Front wheel drive

    Drive, optional

    -

    All-wheel drive [M5 1]

    -

    Gearbox, as standard

    6-speed manual transmission

    8-speed automatic transmission

    6-speed manual transmission

    6-speed powershift

    Gearbox, optional

    -

    8-speed automatic transmission

    -

    6-speed powershift

    -

    Measured values ​​(limousine)

    Top speed

    192 km / h

    197 km / h

    215 km / h
    (211 km / h)

    223 km / h
    [221 km / h]

    215 km / h
    (213 km / h)
    [215 km / h]

    225 km / h
    (223 km / h)
    [221 km / h]

    233 km / h

    Acceleration, 0-100 km / h

    11.5 s

    11.7 s

    12.1 s

    12.3 s

    11.4 s

    9.7 s
    (10.3 s)

    8.9 s
    [9.1 s]

    9.3 s
    (9.9 s)
    [10.3 s]

    8.3 s
    (8.6 s)
    [9.3 s]

    7.9 s

    Fuel consumption over 100 km (combined)

    4.0 l diesel

    3.6 l diesel

    4.2 l diesel

    3.7 l diesel

    4.5-4.8 l diesel

    4.5-4.8 l diesel
    (4.9-5.0 l diesel)

    4.9–5.1 l diesel
    [5.3–5.5 l diesel]

    4.2 l diesel
    (4.8 l diesel)
    [4.8 l diesel]

    4.3 l diesel
    (4.8 l diesel)
    [5.2 l diesel]

    4.8 l diesel

    CO 2 emissions (combined)

    104 g / km

    94 g / km

    109 g / km

    99 g / km

    117-123 g / km

    118–123 g / km
    (130–132 g / km)

    130-133 g / km
    [138-142 g / km]

    109 g / km
    (125 g / km)
    [124 gg / km]

    115 g / km
    (125 g / km)
    [134 gg / km]

    124 g / km

    Emissions standard according to EU classification

    Euro 6

    Euro 6d-TEMP

    Euro 6

    Measured values ​​(combi)

    Top speed

    190 km / h

    187 km / h

    193 km / h

    210 km / h
    (206 km / h)

    218 km / h
    [216 km / h]

    210 km / h
    (208 km / h)
    [210 km / h]

    220 km / h
    (218 km / h)
    [216 km / h]

    228 km / h

    Acceleration, 0-100 km / h

    11.7 s

    11.9 s

    12.3 s

    12.5 s

    11.5 s

    9.8 s
    (10.4 s)

    9.0 s
    [9.2 s]

    9.4 s
    (10.0 s)
    [10.5 s]

    8.4 s
    (8.7 s)
    [9.5 s]

    8.1 s

    Fuel consumption over 100 km (combined)

    4.1 l diesel

    3.8 l diesel

    4.3 l diesel

    3.9 l diesel

    4.3 l diesel
    (4.9 l diesel)
    [4.9 l diesel]

    4.4 liters of diesel
    (4.9 l Diesel)
    [5.3 l Diesel]

    5.0 l diesel

    4.3 l diesel
    (4.8 l diesel)
    [4.9 l diesel]

    4.8 l diesel
    (4.8 l diesel)
    [5.3 l diesel]

    5.0-5.2 l diesel

    CO 2 emissions (combined)

    107 g / km

    99 g / km

    114 g / km

    104 g / km

    121-127 g / km

    121–127 g / km
    (134–137 g / km)

    134-137 g / km
    [141-144 g / km]

    112 g / km
    (128 g / km)
    [127 g / km]

    117 g / km
    (128 g / km)
    [137 g / km]

    129 g / km

    Emissions standard according to EU classification

    Euro 6

    Euro 6d-TEMP
    (from 09/2020: Euro 6d)

    Euro 6

    1. ↑ On the 110 kW diesel only in conjunction with the 6-speed manual transmission.
      On the 138 kW diesel only in conjunction with the 6-speed Powershift transmission
    • Values ​​in round brackets stand for the automatic transmission.
      Values ​​in square brackets indicate the available all-wheel drive.

    Stylespecs

    From £21,095



    Engine

    Power
    (bhp)

    0-60 mph
    (secs)

    Fuel Economy
    (mpg)

    Insurance
    Group

    Road Tax
    (per annum)

    Length
    (mm)



    1.5 TDCi Diesel

    118

    11.3

    78

    17

    £0

    4,871



    1.6 TDCi Diesel

    113

    11.7

    78

    17

    £0

    4,871



    2.0 TDCi Diesel

    147

    9.1

    68

    23

    £20

    4,871

    Zetecspecs

    From £19,995



    Engine

    Power
    (bhp)

    0-60 mph
    (secs)

    Fuel Economy
    (mpg)

    Insurance
    Group

    Road Tax
    (per annum)

    Length
    (mm)



    1.0 EcoBoost Petrol

    123

    11.6

    55

    17

    £30

    4,871



    1.5 EcoBoost Petrol

    157

    8.8 - 8.9

    44 - 48

    23

    £130 - £145

    4,871



    1.5 TDCi Diesel

    118

    11.3

    78

    17

    £0

    4,871



    1.6 TDCi Diesel

    113

    11.7

    78

    17

    £0

    4,871



    2.0 TDCi Diesel

    147

    9.0 - 10.0

    58 - 68

    23

    £20 - £110

    4,871

    ST-Linespecs

    From £25,095



    Engine

    Power
    (bhp)

    0-60 mph
    (secs)

    Fuel Economy
    (mpg)

    Insurance
    Group

    Road Tax
    (per annum)

    Length
    (mm)



    2.0 TDCi (150ps) Diesel

    147

    9.0

    65

    23

    £30

    4,871



    2.0 TDCi (180ps) Diesel

    177

    8.0 - 9.0

    53 - 62

    27 - 28

    £30 - £130

    4,871

    Titaniumspecs

    From £23,295



    Engine

    Power
    (bhp)

    0-60 mph
    (secs)

    Fuel Economy
    (mpg)

    Insurance
    Group

    Road Tax
    (per annum)

    Length
    (mm)



    1.5 EcoBoost Petrol

    157

    8.8 - 8.9

    44 - 47

    23

    £130 - £145

    4,871



    1.5 TDCi Diesel

    118

    11.3

    78

    17

    £0

    4,871



    1.6 TDCi Diesel

    113

    11.7

    78

    17

    £0

    4,871



    2.0 EcoBoost Petrol

    236

    7.6

    38

    29

    £210

    4,871



    2.0 TDCi (180bhp) Diesel

    177

    8.0 - 9.0

    53 - 62

    26 - 27

    £30 - £130

    4,871



    2.0 TDCi (210bhp) Diesel

    207

    7.6

    56

    30

    £110

    4,871



    2.0 TDCi Diesel

    147

    9.0 - 10.0

    57 - 68

    23

    £20 - £110

    4,871



    Options: Equipment included on some trim levels
    • Air conditioning
    • Body coloured bumpers
    • CD
    • Climate control
    • Cloth seat trim
    • Electric driver`s seat
    • Electric mirrors
    • Electric passenger`s seat
    • Front fog lights
    • Heated seats
    • Height adjustable drivers seat
    • Leather seat trim
    • Lumbar support
    • Parking sensors
    • Rear electric windows
    • Sat Nav
    • Sports seats

Video

Author Motor car History Duration 05:53

Maintenance

Maintenance Advanced Data

Members Only !  >>  Register here. <<

Models and years covered 1910 to around 2020 all make and years. Car and Commercial vehicles Worldwide including basic to advanced.

Including Below on request for members..

  • Engine rebuilds
  • Manufacturer recall checks
  • Known problems
  • Trouble shooting
  • Wiring diagrams
  • Transmission rebuilds
  • Brakes
  • Steering
  • Suspension
  • Wheel alignment data
  • Dimensions and sizes
  • Torque wrench settings
  • Capacities
  • Carburettors
  • Injection systems
  • Cooling system
  • Serial number locations
Share this page on Motor Car
