Dodge Viper Third generation

2003 to 2006
Dodge Viper Third generation
Overview
Also calledDodge SRT-10 (UK)
Production2002–2006
DesignerOsamu Shikado (1999)
Body and chassis
Body style2-door roadster 2-door coupe
Powertrain
Engine505 cu in (8.3 L) V10 500 hp (370 kW) @ 5600 rpm 525 lb·ft (712 N·m) @ 4200 rpm (SRT-10 Roadster) 510 hp (380 kW) @ 5600 rpm 535 lb·ft (725 N·m) @ 4200 rpm (SRT-10 Coupe)
TransmissionT56 Tremec 6-speed manual
Dimensions
Wheelbase98.8 in (2,510 mm)
Length175.6 in (4,460 mm)
Width75.7 in (1,920 mm)
Height47.6 in (1,210 mm) (coupe) 48.6 in (1,230 mm) (SRT-10) 48.6 in (1,230 mm) (convertible)
Curb weight3,380 lb (1,530 kg)

 The Dodge Viper underwent a major redesign in 2002, courtesy of DaimlerChrysler's Street and Racing Technology group.
The new Viper SRT-10, which replaced both the GTS and the RT/10 was heavily restyled with sharp, angled bodywork. The engine's displacement was increased to 505 cu in (8.3 L) which, with other upgrades, increased output to 500 bhp (370 kW) and 525 lb·ft (712 N·m). Despite the power increases, engine weight was reduced to about 500 lb (230 kg).

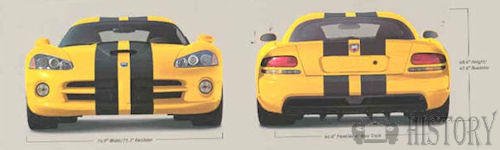

Dodge Viper Third generation front rear
The chassis was also improved, becoming more rigid and weighing approximately 80 lb (36 kg) less than the previous model. An even lighter and stronger chassis was planned, but was abandoned because of cost (parts from the planned suspension were used in the Hennessey Viper Venom 1000 Twin Turbo.) The initial model was a convertible. In 2004 Dodge introduced a limited-edition Mamba package; Mamba-edition cars featured black interiors, with red stitching and trim and price increased by about MSRP US$3000. 200 Mambas were produced.

The Viper SRT-10 Coupe was introduced at the 2005 Detroit Auto Show as a 2006 model. It shares many of its body panels with the convertible, but takes its side and rear styling from the Competition Coupe. The coupe looks much like the previous Viper GTS and retains the "double-bubble" roof shape of the original along with the original GTS's tail lights, as well as offering the original GTS Blue with white stripes paint scheme on the initial run of First Edition cars like the original Viper coupe.

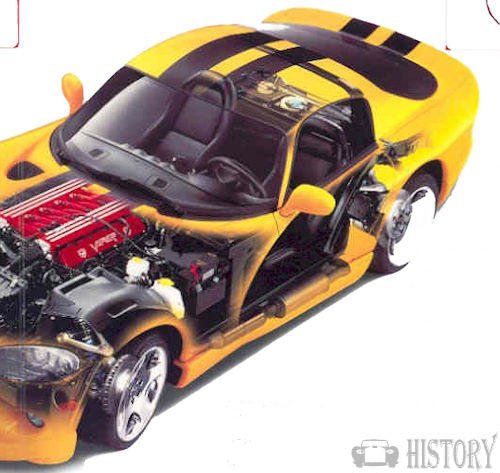

Dodge Viper Third generation xray view

The engine is SAE-certified to produce 510 bhp (380 kW) and 535 lb·ft (725 N·m). Unlike the original coupe, the chassis was not modified. This makes the coupe heavier than the convertible, and thus slightly slower to accelerate. Handling and high-speed performance are improved by the coupe's stiffer frame, reduced drag, and increased downforce.

No 2007 model Vipers were produced; instead, Chrysler extended production of the 2006 model while preparing the updated 2008 model.

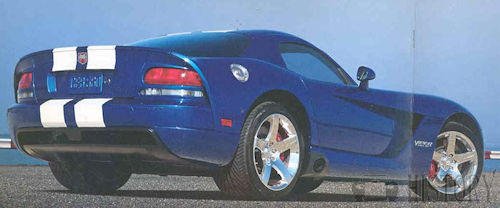

 Dodge Viper Third generation rear view

Related items
Vehicles launched in 2003 | American Automotive 2000s | American Sports Cars | Dodge Viper | coupe | Roadster | Sports Cars

Technical

  • Performance

    Dodge Viper third generation (SRT-10 roadster)

    • 0-60 mph (97 km/h): 3.9 sec
    • 0-100 mph (160 km/h): 8.36 sec
    • quarter mile: 11.77 sec @ 123.68 mph (199.04 km/h)
    • top speed: 189.5 mph (305.0 km/h)
    • slalom: 70.4 mph (113.3 km/h)
    • skidpad average acceleration: 1.05 g (10.3 m/s2)
    • 100–0: 274 ft (84 m)

    Dodge Viper third generation (SRT-10 coupe)

    • 0-60 mph (97 km/h): 3.8 sec
    • 0-100 mph (160 km/h): 8.36 sec
    • quarter mile: 11.77  sec @ 123.68 mph (199.04 km/h)
    • top speed: 192.6 mph (310.0 km/h)
    • slalom: 70.4 mph (113.3 km/h)
    • skidpad average acceleration: 1.05 g (10.3 m/s2)
    • 100–0: 274 ft (84 m)
