Daimler Eighteen DB18  Consort

 1939 to 1953

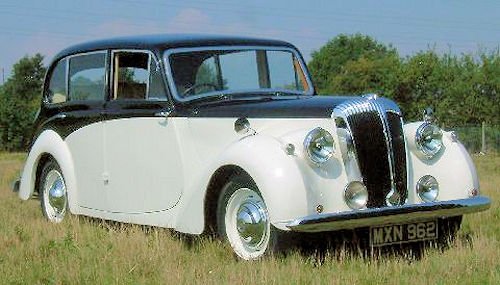

Daimler Eighteen DB18  Consort
Manufacturer The Daimler Company Limited
Also called Daimler Eighteen (1939–1950) Daimler 2½-litre (1939–1950) Daimler Consort (1949–1953)
Production 1939–1953
Predecessor Daimler New Fifteen
Successor Daimler Conquest whole new smaller vehicle Daimler Regency same chassis, bigger engine
Body style four-door saloon numerous coachbuilt versions, standard catalogued models by Daimler subsidiaries Hooper (formal) and Barker (drophead coupés), others as arranged with coachbuilder by customer
Layout FR layout
Engine 2,522 cc 6-cylinder in-line ohv
Transmission 4-speed preselective self-changing gearbox and Fluid Flywheel an open propellor shaft and underhung worm-driven axle, hypoid bevel from June 1950 Overdrive on Special Sports
Wheelbase 114 in (2,900 mm)
Length 180 in (4,600 mm) (2½-litre) 180 in (4,600 mm) (Consort)
Width 65 in (1,700 mm)
Height 63 in (1,600 mm)



The Daimler Eighteen or Daimler DB18, a 2½-litre version of the preceding 2.2-litre New Fifteen introduced in 1937.

Using the engine developed for the Daimler Scout Car,it was offered to customers from 1939 as a six-cylinder chassis on which Daimler and various British coach builders offered a range of bodies including drop-head coupes.

Development

The model was introduced immediately before the start of the World War II, during which the company was compelled to concentrated on the manufacture of military vehicles. Therefore most DB18s were produced after 1945.

To contemporaries the model was generally known as the Daimler 2½-litre until Daimler adopted the North American habit of giving their cars names (although not on any badgework), and a slightly updated version of the car was introduced in October 1948 at the London Motor Show, "principally for export" and branded as the Daimler Consort. The updates included the integration of the firewall into the body rather than it being part of the chassis, a move from rod operated mechanical brakes to a Girling-Bendix hydraulic front and rod operated rear system, incorporating the head lights into the front guards, and providing a badge plate behind the front bumper with a more curved radiator grille.

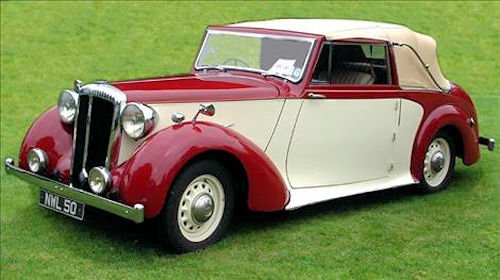

Daimler Eighteen DB18  dhc

Specification

The car used a 2,522 cc in-line six-cylinder, pushrod ohv engine fed by a single SU carburetter. Throughout its life, 70 brake horsepower (52 kW) was claimed, though a change in the gearing in 1950 was marked by an increase in maximum speed from 76 miles per hour (122 km/h) to 82 miles per hour (132 km/h) for the saloon, while the acceleration time from 0 – 50 miles per hour (80 km/h) improved from 17.9 to 16.9 seconds. By the standards of the time the car was brisker than it looked.

The car was supplied with the Daimler Fluid Flywheel coupled to a 4-speed Wilson Pre-selector gearbox. The independent front suspension used coil springs, while the back axle was suspended using a traditional semi-elliptical set-up. The chassis was "underslung" at the rear with the main chassis members passing below the rear axle. In mid-1950 the restricted ground clearance was improved by the adoption of a conventional hypoid bevel drive to the rear axle replacing the traditional Daimler underslung worm drive which had hampered sales outside Britain.

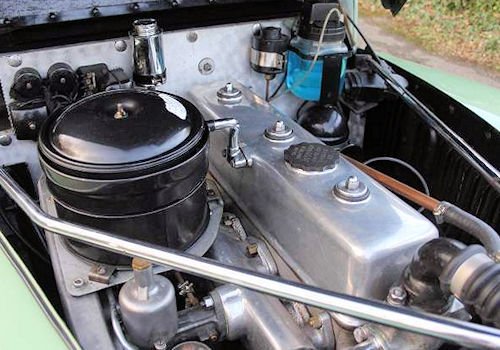

Daimler Eighteen DB18 engine

Coachwork

Although offered originally as a chassis only model, post-war the most common version was a four-door saloon which Daimler themselves produced. The interior was fitted out with traditional “good taste” using mat leather and polished wood fillets. By the early 1950s, this coachwork was beginning to look unfashionably upright and “severe yet dignified”.

In 1939, Winston Churchill commissioned Carlton Carriage Co to build a drophead coupe on a DB18 chassis, chassis No.49531. Never used until post-World War II, he used it to campaign both the 1944 and 1948 general elections.

Production

Sales levels were respectable: 3,355 Daimler 2½-litres were produced and 4,250 Consorts The Consort became a popular car among the wealthy in India. All together over 100 cars were ordered mainly by the Maharaja's in India and a further dozen were ordered by Royalty in Ceylon and Burma.

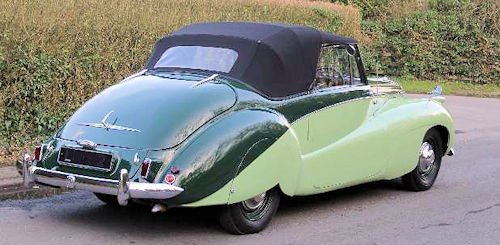

Daimler Eighteen DB18 dhc rear

Daimler
Return
Daimler DS420 Limousine (1968-1992) 9 / 21 Daimler Ferret Scout car (1952-1971)

Related

motor car on you tube

Categories
Daimler
British Automotive 1950s | British Automotive 1940s | British Automotive 1930s | Vehicles launched in 1939 | Carlton Carriage Co | Hooper | SU carburettor | Barker coachbuilder | Famous owners | Royal | Luxury Cars

Technical

  • Daimler Eighteen 2½-litre engine
    Manufacturer The Daimler Company
    Production September 1938 - 1953 introduced in Daimler Fifteen
    Predecessor Daimler Fifteen 2.2-litre
    Successor Daimler Conquest 2½-litre
    Configuration 6-cylinder in-line
    Displacement 2,522 cubic centimetres (154 cu in)
    Cylinder bore 69.6 mm (2.74 in)
    Piston stroke 110.49 mm (4.350 in)
    Cylinder block alloy cast iron, aluminium alloy pistons
    Cylinder head alloy detachable
    Valvetrain OHV, pushrod cam-in-block (and from 1946) valves canted 15 degrees in special combustion chambers
    Compression ratio 7:1
    Fuel system Horizontal S.U. carburettor AC mechanical fuel pump dual carburettors on Special Sports
    Fuel type petrol
    Oil system gear pump 40 lb pressure
    Cooling system water-cooled thermostatically controlled, centrifugal pump and 4-blade fan
    Power output from 1946 70 bhp (52 kW; 71 PS) @ 4000 rpm. Tax rating 18.02 hp
