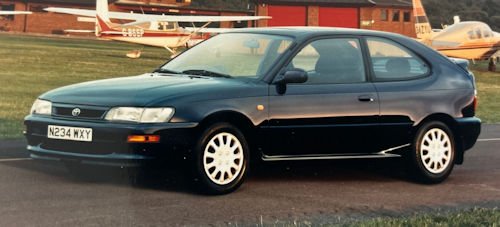

Toyota Corolla 7th Generation (E10)

Toyota Corolla 7th Generation

Manufacturer

Toyota

Model years

1993–1997

Assembly

Japan, Canada, United States, Turkey, Australia, New Zealand, Thailand, Indonesia, Malaysia, Philippines, Pakistan, Vietnam

Body style

  • 4-door sedan
  • 3/5-door hatchback
  • 2-door coupé
  • 5-door lift back/ station wagon/van

Layout

Front-engine, front-wheel-drive

Engine

  • Petrol:
  • 1295 cc 2E I4
  • 1331 cc 4E-FE I4
  • 1452 cc 3E I4 (Van)
  • 1496 cc 5E-FE I4 (Van)
  • 1498 cc 5A-FE I4
  • 1587 cc 4A-FE/4A-GE I4
  • 1587 cc 4A-GZE SC I4
  • 1762 cc 7A-FE I4
  • Diesel:
  • 1973 cc 2C I4
  • 2184 cc 3C-E I4

Transmission

  • 4/5/6-speed manual
  • 3/4-speed automatic

Wheelbase

2,465 mm (97.0 in)

Length

  • Hatchback: 4,095 mm (161.2 in)
  • Wagon/Van: 4,260 mm (167.7 in)
  • Sedan/Coupé: 4,275 mm (168.3 in)

Width

  • 1,685 mm (66.3 in)
  • Coupé: 1,695 mm (66.7 in)

Height

  • Coupé: 1,305 mm (51.4 in)
  • Sedan/Hatchback: 1,375 mm (54.1 in)
  • Wagon/Van: 1,435 mm (56.5 in)

Curb weight

920–1,160 kg (2,028–2,557 lb)



The production of the model began in June 1991 in the Japanese Toyota plant in Toyota City, where the model until May 1995 rolled off the assembly line, until it was replaced by the new E11 generation the E10 generation of the Toyota Corolla was introduced in May 1992 as the successor to the Corolla E9 and offered until April 1997. In Turkey, the E10 generation was produced at Toyota as until in August 1998. In North America, the Corolla was new for the 1993 adding a driver-side air bag and available anti-lock brakes (ABS). It came as a 4-door sedan in Standard, DX, and LE trim, and as a 5-door DX wagon. Wheelbase grows 1.3 inches to 97; the sedan's body is longer by two inches.

Although a completely new platform was developed, not much had changed technically. The chassis was equipped with MacPherson struts and wishbones. As body styles there was a three- and five-door combined sedan called Compact, a four-door notchback, a station wagon and the long five-door hatchback version called "Lift back". The station wagon of this series still characterizes the Afghan street scene The driving position is very good, and the pedals are impeccably arranged. The controls are smooth and accessible. The radio is indeed placed high on the dashboard and offers a surprisingly good sound for its category. The dashboard, finally, is clear and very readable, but the instruments are too dimly lit at night.

The engine range now included only three engines. The gasoline engines had a 1.4-liter (4E-FE, 1332 cc) with initially 65 kW (88 hp), a 1.6-liter (4A-FE) with 84 kW (114 hp) and a newly developed 2, 0-liter diesel with 53 kW (72 hp). All engines were equipped with 5-speed gearbox the transmission ratios are very well spaced for the engine's torque and power curve. For the 1.4-liter gasoline engine 4E-FE there was an optional 3-speed automatic transmission, for the 1.6-liter gasoline engine 4A-FE an electronically controlled 4-speed automatic with overdrive. There were three trim levels: XLi, GLi (only Lift back 1.6l) and Si (only three-door 1.6l). Optionally, there was a driver's airbag with percussion and an electric sunroof.

In May 1995, the Corolla E10 was subjected to a small facelift. Minor adjustments have been made to the bumper and grille. The body variant "Lift back" accounted for. The 1.4-l-4E-FE engine now made only 75 hp (55 kW), but met the emission class Euro 2. From now on, driver and passenger airbags were standard, which were activated by electronic sensor ignition.

Related items
Toyota Corolla | Vehicles launched in 1991 | Japanese Vehicles 1990s

Rating

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
    • Engines

    • Petrol

      • 1.3 12V (2E), 1296 cc, 4 cylinders in row construction, 53 kW (72 hp), 06.91-04.95, .
      • 1.4 XLI 16V (4E-FE), 1332 cc, 4-cylinder in-line, 65 kW (88 hp), 05.92-09.95, emission standard Euro 1. From 09.95-04.97, 55 kW (75 hp), emission standard Euro 2.
      • 1.6 Si 16V (4A-FE), 1587 cc, 4 cylinder in-line, 84 kW (114 hp), 05.92-04.97
      • 1.8 4WD (7A-FE), 4 cylinders in series 85kW (116 hp) Only in 4WD 4WD estate

      Diesel

      • 2.0 l D Cat (2C), 1975 cc, 4 cylinder in-line, 53 kW (72 hp), 05.92-04.97



    • Toyota 2E engine Technical details and specifications (1985-1999)

      No. of cylinders 4/OHC
      Capacity 1295 cc
      Firing order 1-3-4-2
      Compression ratio 9,5:1
      Suitable for unleaded petrol Yes
      Minimum octane rating 91 RON
      Fuel system Make Aisan Type 21100-11150
      Ignition coil Make Denso Type 90919
      Distributor Make Denso No. 11030
      Fuel system pressure 0,2-0,3 bar
      Compression pressure 10-13 bar
      Oil pressure 2,5-5,0 bar @ 3000 rpm
      Radiator cap pressure 0,75-1,05 bar
      Thermostat opens 80-84 °C
      Starter motor Make Denso Type 1,0 kW
      Maximum cranking amps 122-149 A
      Alternator/Regulator Make Nippon Denso Type 45A
      Regulated voltage 13,5-15,1V

Service
    • Toyota 2E engine Maintenance and Service Guide (1985-1999)

      Distributor Contact breaker gap 0,45mm
      Distributor Dwell angle 46-58° (51-64%)
      Spark plugs Original equipment NGK Type BPR6EY-11
      Spark plugs Electrode gap 1,1 mm
      Spark plugs Tighten 18 Nm
      Spark plugs Make Bosch Type WR8DCX
      Spark plugs Make Champion Type RN9YCC4
      Valve clearance -INLET 0,20mm check hot
      Valve clearance -EXHAUST 0,20mm check hot
      Drive belt tension - alternator 5-6mm
      Engine oil grade - normal or moderate climate 10W/30 SAE or 10W/40 SAE
      Engine oil grade - cold climate 5W/30 SAE
      Engine oil grade - hot climate 20W/40 SAE
      Engine oil change with filter 3,2 litres
      Sump drain bolt tighten 25 Nm
      Cooling system 4,6 litres


      Cylinder head Tightening torques (Renew bolts No)
      Stage 1 Tighten 29 Nm
      Stage 2 Tighten 49 Nm
      Stage 3 Tighten 90°

      Gearbox
      5-speed manual gearbox: C150, C152 (turbo model)
      Automatic transmission: A132
      Manual gearbox oil grade 75W-90W SAE
      Manual gearbox oil 2,4 litres
      Automatic transmission fluid Type Dexron II
      Automatic transmission fluid 2,2 litres
      Differential front/Auto 1,4 (AT) litres
      Differential oil grade - rear Dexron II
