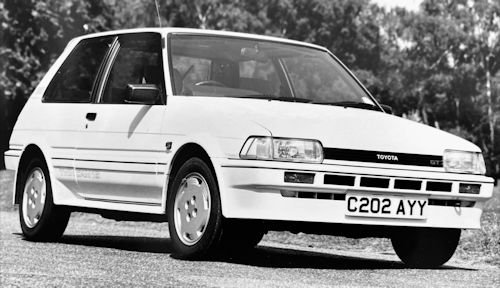

Toyota Corolla 5th generation (E8)

Toyota Corolla 5th generation (E8)

Manufacturer

Toyota

Model code

E80

Production

1983–1987

Body style

3/5-door hatchback (FX)
4-door sedan
5-door lift back
2-door coupé (RWD)
3-door hatchback coupé (RWD)

Layout

Front-engine, front-wheel-drive / rear-wheel-drive

Engine

  • 1.3 L 2A I4 (AE80)
  • 1.3 L 2E I4 (EE80)
  • 1.5 L 3A I4 (AE81/85)
  • 1.6 L 4A-C/E I4 (AE82/86)
  • 1.6 L 4A-GE I4 (AE82/86)
  • 1.8 L 1C-L diesel I4 (CE80)

Transmission

4/5-speed manual
3/4-speed automatic

Wheelbase

2,430 mm (95.7 in)
2,400 mm (94.5 in) (AE85/86)

Length

4,135 mm (162.8 in)
FX: 3,970 mm (156.3 in)
North America:
4,254 mm (167.5 in)
FX: 4,064 mm (160.0 in)

Width

1,635 mm (64.4 in)

Height

1,328 mm (52.3 in)
FX: 1,346 mm (53.0 in)
FX16: 1,341 mm (52.8 in)

Curb weight

840–940 kg (1,852–2,072 lb)



In May 1983, the Corolla E8 appeared with front-wheel drive and multi-link rear suspension as a four-door notchback and five-door hatchback. In October of the year followed the shorter, three- and five-door hatchback variants, which were called in Europe Corolla Compact. In the domestic market, the engine power ranged from 1.3 to 1.6 litres (60-95 kW / 81-130 hp).

In Germany, the E8 was offered as a sedan, compact and lift back. In the E8 Toyota offered at that time completely newly developed engines, which at the time were considered very economical. The entry-level engine was a 1.3-liter gasoline engine with 51 kW (69 hp) (2A), which was further developed with the facelift from 1985/86 and now 55 kW (75 hp) (2E m U-Kat) made. Alternatively, there was also a 1.6-liter gasoline engine with 62 kW (84 hp) (4A) and a 1.8-liter diesel with 47 kW (64 hp) (1C) to choose from, the latter came only with the facelift,



Model maintenance

In August 1985, the Corolla as a lift back and sedan were minimally modified by a facelift.

In the course of the facelift, the floor lights were pulled further into the mudguard and the radiator grille was modified. At the tailgate, the "Corolla" trim strip was now manufactured as a continuous reflective strip. Also, the license plate light above the plate was hidden (previously side) installed. The dashboard has now been extended with a storage compartment under the ashtray and the speedometer cover and some controls (rear window wiper, rear window heating, etc.) have been changed. Engine technology, the Corolla got the new 12 valve (1.3l 75PS (2E)) with U-KAT and a diesel (1.8l 64PS (1C)), the large 1.6l petrol engine was now available with G-KAT.

The last E8 ran in March 1987 by the band, as is well known in this country but until September 1987 copies registered as a new car.

In the US, the Chevrolet Nova from 1985, a sister model of the Corolla E8 on the market.

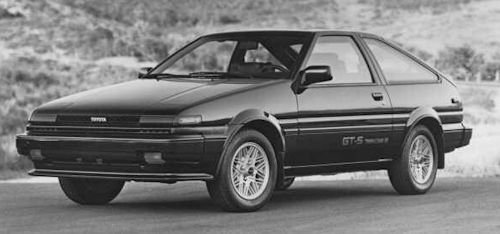

Coupés (AE85 / AE86)

Toyota Corolla 5th generation (E8)

Based on the previous models Toyota offered from the summer of 1983 again sporty Corolla models with rear-wheel drive. In Japan, these slant and notch coupes ran under the names Corolla Levin and Sprinter Trueno, in the US were called the cars Corolla GT-S or SR5.

In the home market was a OHC 1.5-liter with 62.5 kW (85 hp) and a 1.6-liter with two overhead camshafts and 95.5 kW (130 hp) for election. In North America, these engines produced 55 kW (75 hp) and 85 kW (115 hp).

In Europe, depending on the market, both or just one body variant was offered. 1983 under the name Corolla GT the notchback version with the 1.6-liter four-valve engine, which made 91 kW (124 hp) and from the end of 1985 with catalyst 85 kW (115 hp).

In July 1987 ended the production of the coupes.

Related items
Toyota Corolla | Vehicles launched in 1983 | Japanese Vehicles 1980s

Rating

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  • Engines:

    • Gasoline engine with 1295 cc and 51 kW (69 hp; 2A)
    • Gasoline engine with 1295 cc and 55 kW (75 hp, 2E UKat)
    • Gasoline engine with 1587 cc and 62 kW (84 hp, 4A)
    • Gasoline engine with 1587 cc and 64 kW (75 hp, 4A GKat)
    • Gasoline engine with 1587 cc and 89 kW (121 hp, 4A-GE)
    • Diesel engine with 1839 cc and 47 kW (64 hp, 1C)



    1.3l

    1.3l

    1.6l

    1.6l (G-KAT)

    Construction period

    05 / 1983-08 / 1985

    09 / 1985-03 / 1987

    05 / 1983-09 / 1985

    10 / 1985-03 / 1987

    Motor characteristics

    engine type

    gasoline engine

    Number of valves per cylinder

    2

    3

    2

    2

    valve control

    SOHC, timing belt

    SOHC, timing belt

    SOHC, timing belt

    SOHC, timing belt

    mixture preparation

    carburettor

    engine charging

    -

    cooling

    water cooling

    motor identification

    2A-L

    2E

    4A-L

    4A-L

    Bore × stroke

    76.0 mm × 71.4 mm

    73.0 mm × 77.4 mm

    81.0 mm × 77.0 mm

    81.0 mm × 77.0 mm

    capacity

    1295 cc

    1295 cc

    1587 cc

    1587 cc

    compression ratio

    9.3: 1

    9.5: 1

    9.3: 1

    9.3: 1

    Max. power

    51 kW (69 hp)
    at 6000 rpm

    55 kW (75 hp)
    at 6200 rpm

    62 kW (84 hp)
    at 5600 rpm

    55 kW (75 hp)
    at 5600 rpm

    Max. torque

    106 Nm
    at 3600 rpm

    104 Nm
    at 3600 rpm

    132 Nm
    at 3600 rpm

    ________________

    115 Nm

    at 2800 / min

    130 Nm
    at 3600 rpm

    power transmission

    drive

    front-wheel drive

    Gearbox, standard

    5-speed manual transmission

    Gear, optional

    3-speed automatic

    readings

    maximum speed *

    170 km / h.

    170 km / h

    ~ 190 km / h

    178 km / h

    Acceleration, 0-100 km / h

    k. A.

    14.1 s

    10.8 s

    11.0 s

    Fuel consumption per 100 km (combined) **

    ~ 6.5 l super

    ~ 6.5 l super

    7.0 l super

    7.0 l super

    *: Real values ​​of several E8 drivers

    **: Real consumption from own experience of several E8 drivers, body shape: Lift back



    Toyota 2E engine Technical details and specifications (1985-1999)

    No. of cylinders 4/OHC
    Capacity 1295 cc
    Firing order 1-3-4-2
    Compression ratio 9,5:1
    Suitable for unleaded petrol Yes
    Minimum octane rating 91 RON
    Fuel system Make Aisan Type 21100-11150
    Ignition coil Make Denso Type 90919
    Distributor Make Denso No. 11030
    Fuel system pressure 0,2-0,3 bar
    Compression pressure 10-13 bar
    Oil pressure 2,5-5,0 bar @ 3000 rpm
    Radiator cap pressure 0,75-1,05 bar
    Thermostat opens 80-84 °C
    Starter motor Make Denso Type 1,0 kW
    Maximum cranking amps 122-149 A
    Alternator/Regulator Make Nippon Denso Type 45A
    Regulated voltage 13,5-15,1V

    © Motor car History

Service
    • Toyota 2E engine Maintenance and Service Guide (1985-1999)

      Distributor Contact breaker gap 0,45mm
      Distributor Dwell angle 46-58° (51-64%)
      Spark plugs Original equipment NGK Type BPR6EY-11
      Spark plugs Electrode gap 1,1 mm
      Spark plugs Tighten 18 Nm
      Spark plugs Make Bosch Type WR8DCX
      Spark plugs Make Champion Type RN9YCC4
      Valve clearance -INLET 0,20mm check hot
      Valve clearance -EXHAUST 0,20mm check hot
      Drive belt tension - alternator 5-6mm
      Engine oil grade - normal or moderate climate 10W/30 SAE or 10W/40 SAE
      Engine oil grade - cold climate 5W/30 SAE
      Engine oil grade - hot climate 20W/40 SAE
      Engine oil change with filter 3,2 litres
      Sump drain bolt tighten 25 Nm
      Cooling system 4,6 litres


      Cylinder head Tightening torques (Renew bolts No)
      Stage 1 Tighten 29 Nm
      Stage 2 Tighten 49 Nm
      Stage 3 Tighten 90°

      Gearbox
      5-speed manual gearbox: C150, C152 (turbo model)
      Automatic transmission: A132
      Manual gearbox oil grade 75W-90W SAE
      Manual gearbox oil 2,4 litres
      Automatic transmission fluid Type Dexron II
      Automatic transmission fluid 2,2 litres
      Differential front/Auto 1,4 (AT) litres
      Differential oil grade - rear Dexron II

      © Motor car History
