Luxury Cars
Japan
1960s

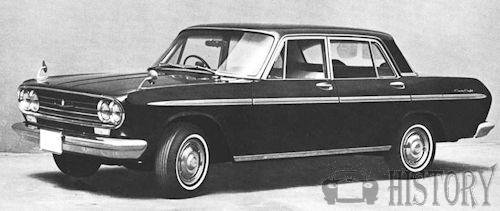

 Toyota Crown Eight



 Toyota Crown Second Generation eight

Production

April 1964 to July 1967

Body style

4-door sedan

Engine

2.6L (2599cc) V OHV V8

Transmission

3-speed automatic column change

Wheelbase

107.87 in, 2,740 mm

Length

185.83 in, 4,720 mm,

Width

72.6 in 1,845 mm

Height

57 in 1,460 mm

Curb weight

3,043 1b, 1,380 kg



The Toyota Crown Eight was introduced in 1964 for the Japanese market, powered by a 2.6 L V8 engine.

History

Toyota built at the same time as the Second generation S4 type However, the Crown Eight was equipped with Japan's first V-type 8-cylinder engine by extending and widening the body of the regular model in all directions. it had a different model designation, VG10 The Crown Eight was assembled by Toyota's subcontracting company Kanto Auto Works. The car was first introduced at the 1963 Tokyo Motor Show and introduced for sale on April 20, 1964, nine days before Emperors birthday and the beginning of Golden Week in Japan.The Crown Eight represents the first Japanese mass-produced vehicle with an 8-cylinder engine.The distribution of weight was  51.4% to  front axle,and  48.6% at  rear axle ,The front suspension, independent, wishbones, coil springs, anti-roll bar with telescopic dampers the rear was rigid axle, coil springs, trailing radius arms, transverse linkage bar and telescopic dampers.

PERFORMANCE

  • engine capacity: 158.59 cu in, 2,599 cu cm
  • fuel consumption: 25.7 m/imp gal, 21.4 m/US gal, 11 1 X 100 km
  • max speed: 93 mph, 149.7 km/h
  • max speeds: 60 mph, 96.6 km/h in 1st gear; 93 mph, 149.7 km/h in 2nd gear
  • max power (SAE): 115 hp at 5,000 rpm
  • max torque (SAE): 145 1b ft, 20 kg m at 3,000 rpm
  • max number of engine rpm: 6,000
  • specific power: 44.2 hp/l
  • power-weight ratio: 26.5 lb/hp, 12 kg/hp
  • acceleration: standing 1/4 mile 20.8 sec, O 50 mph (O 80 km/h) 11.2 sec

The Crown Eight was considered as a possible submission for use by the Japanese Imperial Household Agency as a car to be used by the Royal Family, but it lost out to the Nissan Prince Royal. The Crown Eight was replaced in 1967 by the first Century with the model code VG20. Approx 3,800 Crown Eights were produced.

Some of the items that were exclusive to the Crown Eight were electrically powered windows, cruise control, a three-speed "Toyoglide" automatic transmission with manual option, and electromagnetic door latches, which were also installed on the Crown Eight successor, the Century.The main rivals at the time were the Prince Gloria Super, Mitsubishi Debonair, and Nissan Cedric Special, all equipped with a six-cylinder engine. It was the first Crown to exceed vehicle size classification regulations in length, width and engine displacement capacity. The width at 1,845 mm (72.6 in) compares to the Century at 1,890 mm (74 in), and as such no Crown before or since, including the Crown Majesta, has matched the width dimension of the Crown Eight until the year 2008 for Crown and 2009 for Majesta.

Related items
Japanese Vehicles from 1960s | Luxury Cars

Rating

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Service
  • Toyota Crown Eight Maintenance and Service Guide (1964-1967)

    Fuel: 85-90 oct petrol
    Engine oil change: 7.04 imp pt, 8.46 US pt, 4 1, SAE 20-30, change every 1,900 miles, 3,000 km
    Total lubricating system capacity: 7.92 imp pt, 9.51 US pt
    Cooling system capacity: 15.84 imp pt, 19.03 US pt, 9 1.
    Gearbox oil: 11.97 imp pt, 14.38 US pt, 6.8 1, change every 22,400 miles, 36,000 km
    Final drive oil: 1.76 imp pt,2.11 US pt,l l, SAE 90, change every 22,400 miles, 36,000 km
    Greasing: every 1,900 miles, 3,000 km, 18 points
    Valve timing: inlet opens 20° before tdc and closes 60° after bdc, exhaust opens 60° before bdc and closes 20° after tdc
    Normal tyre pressure: front 27 psi, 1.9 atm, rear 27 psi, 1.9 atm.
    Tyres: 7.00 x 13
    Fuel tank capacity: 15.4 imp gal, 18.5 US gal
    Carrying capacity: 1,058 1b, 480 kg

    © Motor car History

Technical
  • Toyota Crown Eight Technical details and specifications (1964-1967)


    DIMENSIONS AND WEIGHT
    wheel base: 107.87 in, 2,740 mm
    front track: 59.84 in, 1,520 mm
    rear track: 60.63 in, 1,540 mm
    overall length: 185.83 in, 4,720 mm,
    ground clearance 7.28 in, 185 mm
    dry weight: 3,043 1b, 1,380 kg
    distribution of weight: 51.4% front axle, 48.6% rear axle

    ENGINE
    location front
    4 stroke; cylinders: 8, Vee-slanted at 90°
    bore and stroke: 2.99 x 2.68 in, 78 x 68 mm
    engine capacity: 158.59 cu in, 2,599 cu cm
    compression ratio: 9
    cylinder block: light alloy
    cylinder head: light alloy
    crankshaft bearings: 5
    valves: 2 per cylinder, overhead, push-rods and rockers, hydraulic tappets
    camshafts: 1, at centre of Vee
    lubrication: rotary pump, full flow filter
    carburation: 1 downdraught twin barrel carburettor
    fuel feed: electric pump
    cooling system: water

    TRANSMISSION
    driving wheels: rear
    gearbox: Toyoglide automatic, hydraulic torque convertor and planetary gears
    2 ratios + reverse
    gearbox ratios: 1st 1.820, 2nd 1, rev 1.820
    selector lever location: steering column (option) central gear lever.
    (option) electrically controlled front column gear lever
    (option) 4-speed mechanical gearbox,
    final drive: hypoid bevel;
    axle ratio: 3.900.

    CHASSIS
    type box-type cruciform frame
    front suspension: independent, wishbones, coil springs, anti-roll bar, telescopic dampers
    rear suspension: rigid axle, coil springs, trailing radius arms, transverse linkage bar, telescopic dampers.

    STEERING
    worm and roller
    turns of steering wheel lock to lock: 3.50.
    turning circle (between walls): 38.7 ft, 11.8 m

    BRAKES
    drum, 2 front leading shoes, servo
    lining area: total 132.40 sq in, 854 sq cm.

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 50 Ah
    generator type: alternator, 360 W
    ignition distributor: Denso

    © Motor car History
