Seat Ibiza V 5th Generation (Type 6F)

Seat Ibiza V 5th Generation (Type 6F)

Production:

since 2017

Body versions :

5 door hatchback

Engines:

Gasoline: 1.0-1.5 liters Diesel engines :1.6 liters



The fifth-generation (Type 6F) Seat Ibiza was unveiled in Barcelona on January 31, 2017 and celebrated its world premiere at the 87th Geneva Motor Show .

The Ibiza is SEAT’s best-selling model.As the first vehicle in the Volkswagen Group, the Ibiza is based on the new MQB-A0 platform , on which further models from Seat, Volkswagen, Audi and Škoda Auto will be built in the future. At the market launch on 10 June 2017. Demand has fallen for three-door superminis so the Ibiza was offered exclusively as a five-door with impressive interior space, with sporty styling. The station wagon ST will be replaced by a separate model the Arona.There’s enough space inside for four adults to fit in comfort, with lots of headroom.

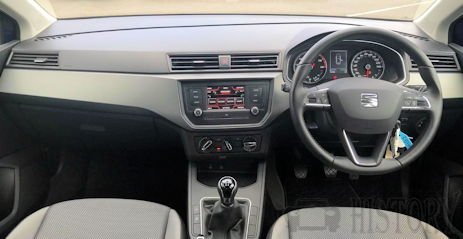

Inside touchscreen infotainment systems are standard across the range. Most models come with a larger 8.0-inch colour screen that’s easy to operate.

With a width of 8.7 cm and a wheelbase extended by 9.5 cm , the five-door model offers more space than its predecessor. In the boot (trunk) the car is now offering 350 litres of space and 823 litres by folding the rear seats down.The equipment variants of the predecessor have been supplemented by the line XCellence , which represents parallel to the sporting variant FR, the top equipment. For diesel engines, only versions with SCR storage technology (urea injection) are available.

Seat Ibiza V 5th Generation (Type 6F)

Engines: Gasoline engines : 1.0-1.5 liters (48-110 kW) Diesel engines : 1.6 liters (59-85 kW)

It has the 1.0 TSI three-cylinder petrol engines (75, 95 and 115 hp) and 1.5 TSI (150 hp, this was withdrawn at the end of 2018), with the hybridized 1.0 GG CNG engine (90 hp) and two 1.6 TDI diesel engines (95 and 115 CV).

Petrol engines  fuel average is 42.2 to 54.3 mpg and for Diesel engines 53.3 to 61.4 mpg. There's a choice of five and six-speed manual gearboxes and a option for six-speed DSG automatic unit.

The main line-up with SE and SE Technology, the more sporty FR, FR Sport. The high-spec FR comes with sports suspension, larger upgraded 18-inch alloys and some great sports seats. and there is even more luxurious Xcellence model.

Seat Ibiza V 5th Generation (Type 6F)

The SEAT Ibiza V conducted crash tests of EuroNCAP in 2017, and achieved an overall rating of 5 stars. The tested model was equipped with the 6 airbags that it incorporates as standard equipment. The SEAT Ibiza offered good protection for adults in frontal and lateral impact, while it fulfilled the requirements in the lateral impact of the pole, fully protecting the head. Additionally, the subcompact scored fair to good in child protection, both in frontal and side impact. It should be remembered that this model now is equipped as standard with stability control. Safety extras include adaptive cruise control. Also a multi-collision braking system which holds on the brakes on in the event of a rear-end impact to the car.

  • Length: 4059 mm
  • Width: 1780 mm
  • Height: 1444 mm
  • Wheelbase : 2564 mm
  • Curb weight : 1091-1272 kg

Seat Ibiza V 5th Generation (Type 6F)

Related items
Video | Seat Ibiza | Vehicles launched in 2017

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  • Petrol engines



    1.0 MPI

    1.0 TGI

    1.0 EcoTSI

    1.5 TSI

    Construction period

    06 / 2017-08 / 2018

    since 11/2018

    06 / 2017-08 / 2018

    since 11/2018

    10 / 2017-08 / 2018

    since 02/2019

    since 06/2017

    08 / 2017-08 / 2018

    Engine type and number of cylinders

    R3 gasoline engine with intake manifold injection

    R3 gasoline engine withturbocharger and gasoline direct injection

    R4 gasoline engine with turbocharger and gasoline direct injection

    motor series

    VW EA211

    VW EA211 evo

    capacity

    999 cc

    1498 cc

    compression ratio

    10.5: 1

    12.5: 1

    10.5: 1

    11.5: 1

    10.3: 1

    10.5: 1

    Max. Power at 1 / min

    48 kW
    (65 hp) /
    5000-6000

    48 kW
    (65 hp) /
    5500

    55 kW
    (75 hp) /
    6200

    59 kW
    (80 hp) /
    6200

    66 kW
    (90 hp) /
    4500-5800

    70 kW
    (95 hp) /
    5000-5500

    85 kW
    (115 hp) /
    5000-5500

    110 kW
    (150 hp) /
    5000-6000

    Max. Torqueat 1 / min

    95 Nm /
    3000-4300

    95 Nm /
    3000

    95 Nm /
    3000-4300

    95 Nm /
    3000

    160 Nm /
    1900-3500

    175 Nm /
    1500-3500

    200 Nm /
    2000-3500

    250 Nm /
    1500-3500

    Gearbox, standard

    5-speed manual transmission

    6-speed manual transmission

    Gear, optional

    -

    ( 7-speed DSG )

    -

    Power unit

    front-wheel drive

    top speed

    162 km / h

    167 km / h

    169 km / h

    181 km / h

    180 km / h

    182 km / h

    195 km / h
    (193 km / h)

    215 km / h

    Acceleration,
    0-100 km / h

    15.2 s

    14.7 s

    11.8 s

    12.1 s

    10.9 s

    9.3 s
    (9.5 s)

    7.9 s

    tare

    1091 kg

    1099 kg

    1091 kg

    1099 kg

    1239 kg

    1257 kg

    1122-1134 kg

    1140-1149 kg
    (1164-1172 kg)

    1184 kg

    Fuel consumption
    per 100 km (combined)

    4.9 l super

    5.0 l super

    4.9 l super

    5.0 l super

    5.0 l Super
    3.3 kg natural gas

    5.1 l super

    3.3 kg of natural gas

    4,6-4,7 l super

    4.7-5.0 l Super
    (4.7-4.9 l Super)

    4.9 l super

    CO 2emission (combined)

    112 g / km

    114 g / km
    88 g / km

    92 g / km

    105-106 g / km

    108-113 g / km
    (108-112 g / km)

    112 g / km

    Emission standardaccording to
    EUclassification

    Euro 6

    Euro 6d TEMP

    Euro 6

    Euro 6d TEMP

    Euro 6

    Euro 6d temp

    Euro 6
    (since 08/2018: Euro 6d TEMP)

    Euro 6

    • Values ​​in parentheses apply to models with direct shift transmission (DSG).

    Diesel engines



    1.6 TDI

    Construction period

    since 10/2017

    since 01/2018

    Engine type and number of cylinders

    R4 diesel engine with turbocharger and common rail injection

    motor series

    VW EA288

    capacity

    1598 cc

    compression ratio

    16.2: 1

    Max. Power at 1 / min

    59 kW (80 hp) / 2700-4800

    70 kW (95 hp) / 2750-4600

    85 kW (115 hp) / 3250-4000

    Max. Torque at 1 / min

    230 Nm / 1400-2400

    250 Nm / 1500-2600

    250 Nm / 1500-3200

    Gearbox, standard

    5-speed manual transmission

    6-speed manual transmission

    Gear, optional

    -

    ( 7-speed DSG )

    -

    Power unit

    front-wheel drive

    top speed

    172 km / h

    182 km / h
    (181 km / h)

    195 km / h

    Acceleration, 0-100 km / h

    13.3 s

    11.3 s
    (11.7 s)

    10.0 s

    tare

    1247 kg

    1253 kg
    (1272 kg)

    1258 kg

    Fuel consumption per 100 km (combined)

    3.8 l diesel

    3.8 l diesel
    (4.0 l diesel)

    4.1 l diesel

    CO 2 emission (combined)

    99 g / km

    100 g / km
    (105 g / km)

    111 g / km

    Emission standard according to EU classification

    Euro 6



Manuals

Download: Workshop manuals Tech Guides exclusive to registered users.
