Renault Fuego
1979-1986 | |
---|---|
![]() | |
Overview | |
Manufacturer | Renault |
Production | 1979–1986 (Europe) 1982–1995 (South America) |
Assembly | Palencia, Spain (RESA, 1980–1986) Billancourt, France (RSAS, 1980–1985) Maubeuge, France (MCA, 1979–1987) Santa Isabel, Argentina (RASA, 1982–1992; CIADEA, 1992–1993) Buenos Aires, Argentina (RASA, 1993–1995) Los Andes, Chile (Automotores Franco Chilena S.A.) |
Designer | Robert Opron |
Body and chassis | |
Class | Sports car |
Body style | 3-door coupé |
Layout | FF layout |
Related | Renault 18 |
Powertrain | |
Engine | 1.4 L I4 (petrol) 1.6 L I4 (petrol) 1.6 L I4 (t/c petrol) 2.0 L I4 (petrol) 2.1 L I4 (t/c diesel) 2.2 L I4 (diesel) |
Dimensions | |
Wheelbase | 2,443 mm (96.2 in) |
Length | 4,358 mm (171.6 in) |
Width | 1,692 mm (66.6 in) |
Height | 1,315 mm (51.8 in) |
The Renault Fuego ("Fire" in Spanish) was a sports car produced by French automaker Renault from 1980 to 1995, replacing the Renault 15 and 17 coupés of the 1970s. It was marketed in the United States by American Motors Corporation (AMC), as well as assembled in Argentina.
Development
The Fuego's exterior was designed by Michel Jardin, working under Robert Opron (who had previously designed the Citroën SM, Citroën GS, Citroën CX, and later followed with the Renault 25 in 1984).
The Renault Fuego was heavily based on the Renault 18, sharing its floorpan and drivetrain, but featuring a new front suspension design developed from the larger Renault 20/30. The design kept the familiar double wishbone layout common with the Renault 18 but no parts were interchangeable and the design incorporated negative scrub radius geometry. The new suspension design would later be introduced in the facelifted Renault 18, and with minor refinements (larger bushings, etc.), it was used in the Renault 25. In 1984, the Fuego dashboard was added to the facelifted R18. European production continued into 1986 (to 1985 in France and 1986 in Spain), while Renault Argentina produced the Fuego from 1982 until finally ending production in 1995 with the 2.2 litre "GTA Max" (the final phase III facelift introduced in 1990).
It was the first mass produced four-seat sports model to be designed in a wind tunnel (with a resulting drag coefficient (Cd) factor of 0.32-0.35 depending on model and year). In October 1982, the Turbo Diesel model was classified as the then-fastest diesel car in the world with a top speed of 180 km/h.
The Fuego was the first car to have a remote keyless system with central locking that was available from the 1983 model year (from October 1982). The system was invented by Frenchman Paul Lipschutz (hence the name PLIP remote which is still used in Europe), and later introduced on other Renault models. The Fuego was also the first car to have steering wheel mounted satellite controls for the audio system (European LHD GTX and Turbo from October 1983). This feature became popularised on the new 1984 model Renault 25.
A convertible version was unveiled by the French coachbuilder Heuliez in 1982, but never made it to production due to cost - the R11/Alliance convertible taking its place.

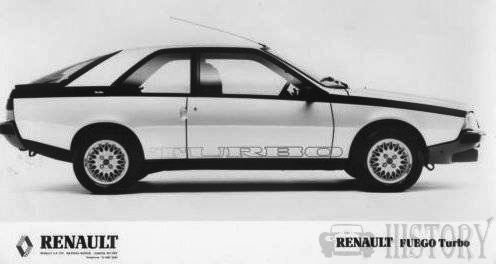

Renault Fuego Turbo
Marketing
European model variants ran as follows: 1.4 litre TL, GTL.
PERFORMANCE: 1.4L
- max power (DIN): 64 hp (46 kW) at 5.500 rpm
- max torque (DIN): 76 1b ft, 10.5 kg m (103 Nm) at 3.000 rpm
- max engine rpm: 5,700; 45.8 hp/l (32.9 kW/l)
- power-weight ratio: 34.8 lb/hp (48.4 Ib kW). 15.8 kg/hp (21.9 kg/kW)
- acceleration: standing 1/4 mile 19.2 sec; speed in top at 1,000 rpm: 19 mph, 30.6 km/h
- fuel consumption: 37.7 n imp gal, 31.4 m/lUS gal, 7.5 1 x 100 km at 75 mph, 120 kmh.
1.6 litre TS, GTS (manual and automatic transmissions).
PERFORMANCE: 1.6L
- max speed: 112 mph, 180 km/h
- max power (DIN): 96 hp (69 kW) at 5,750 rpm
- max torque (DIN): 99 1b ft, 13.6 kg m (130 nm) at 3,500 rpm
- max engine rpm: 5,950; 58.3 hp/l
- power-weight ratio: 23.8 lb/hp (33.1 lb/kW), 10.8 kg/hp (15 kg/kW)
- acceleration: standing 1/4 mile 17.9 sec
- fuel consumption: 34.9 m/imp gal, 29 m/US gal, 8.1 1 x 100 km at 75 mph, 120 km/h.
2.0 litre TX, and GTX (manual and automatic transmissions).
PERFORMANCE: 2.0L
- max power (DIN): 110 hp (79 kW) at 5,500 rpm
- max torque (DIN): 120 1b ft, 16.6 kg m (160 Nm) at 3,000 rpm
- max engine rpm: 5,700; 55.1 hp/l (39.6 kW/)
A 2.1 litre Turbo Diesel was also produced for LHD European markets in the 1982-84 period. The Fuego Turbo (manual transmission only) was added in 1983 to coincide with the midlife facelift. This included a new front grille, bumpers, wheel design, interior trim and a revised dashboard on LHD models. In the United States, the Fuego was offered with a 1.6 litre turbocharged or normally aspirated version in 1982 and 1983; for 1984 and 1985 it was offered with a 2.2 litre engine.
The Fuego became the number one selling coupé in Europe during the years 1980 through 1982. The official Renault website states that a total of 265,367 Fuegos were produced. In France (thus, excluding Argentina and Spain) the number produced from 1980 to 1985 was 226,583.
While being reasonably well specified for a vehicle of that time, the Fuego was also available with a number of options including leather upholstery, multi-function trip computer, cruise control, air-conditioning (either factory fitted or a dealer installed option with thermostat control), and a full length Webasto electric fabric sunroof.power steering, light alloy wheels.
The Fuego was sold in the United States through American Motors (AMC) dealers from 1982 to 1985 inclusive. It was "a nicely executed sports coupe" and was to be Renault's "halo" car. The car featured distinctive styling, comfort for four passengers, delivered superior fuel economy (the U.S. EPA rated it at 39 mpg-US (6.0 L/100 km; 47 mpg-imp) in the highway), economical to purchase (base price of $8,495 at its introduction), and the model received good reviews in the automotive media. However, it did not achieve high sales and turn Renault's fortunes around in the United States. By 1984, AMC dealers were eligible for rebates of $300 and $1,000, respectively, on each imported Renault Fuego and Fuego Turbo model they sold. Also, the American "Federalisation" of the vehicle received negative reactions from the original design team due to the enlarged bumpers, sealed beam headlights, and Americanised colour/trim choices.
Renault sold the Fuego in the UK, aiming it at Opel Manta and Ford Capri buyers, where it became the top selling coupé during 1981-82, but sales fell off before finally ending in 1986 with just the GTS and Turbo as the two sole models.
The Fuego was not directly replaced by another model in the Renault range. A Fuego II was planned, similarly styled as the new Renault Alpine GTA, but the development of the new model was cancelled at the last minute due to Renault's financial problems and the falling sales of sports coupés in general at that time.
Timeline
- February 1980 - Introduction of the Fuego three-door coupé. Available as TL and GTL with 1,397 cc engine (rated at 64 PS (47 kW; 63 hp), with manual choke), and GTS with 1,647 cc engine (rated at 96 PS (71 kW; 95 hp), with automatic choke), with 4-speed manual gearbox on TL and GTL, 5-speed manual or 3-speed automatic gearbox on GTS. TL has basic equipment level with 155 SR 13 tires, heated rear window, rear fog light, split/fold rear seat, and cloth upholstery. The GTL adds 175/70 13 tires, electric front windows, tachometer, height-adjustable steering wheel, front head restraints, analog clock, wheel covers, remote-adjustable drivers door mirror, laminated windscreen, opening rear quarter windows, H4 headlights, pre-installed radio kit, and velour upholstery. The GTS adds engine oil level gauge, power-assisted steering, and optional 3-speed automatic transmission.
- 1981 - Fuel reserve warning light standard on all models. GTS obtained modified gearbox.
- 1981 - Introduction of the TX and GTX with 1,995 cc engine (rated at 110 PS or 81 kW; 108 hp) and five-speed manual gearbox. TX has same specification as GTS. GTX as GTS and TX, plus rear wash/wipe, front fog lights, headlamp wash/wipe, 14-inch alloy wheels (185/65 HR14), leather on the steering wheel rim, gearlever gaiter, and handbrake lever gaiter, as well as digital clock, passenger side door mirror, bronze tinted windows, luggage cover, airhorn, and much more. The optional three-speed automatic transmission now available on the 2 litre TX rather than in the 1.6 litre, beginning in September 1981.
- 1982 - The GTL is upgraded to a 5-speed gearbox. GTS gains electronic ignition. GTS, TX (depending on country), and GTX gain remote central locking. The 2.1 L Turbo Diesel is introduced to certain LHD European markets. The 1.6 L fuel-injected and turbo versions are introduced in the United States through Renault/American Motors dealers.
- 1983 - The GTL gains economy tune 73 PS (54 kW; 72 hp) 1,647 cc engine, 5-speed gearbox.
- 1984 - the new model year features a facelift with new grille, bumpers, wheel design, and interior trim (as well as a new dashboard on LHD vehicles). A limited production run of Turbos fitted with EFi produced for the Swiss market to meet their emission controls. Models sold in United States are equipped with 2.2 L engines and an updated interior.
- 1985 - Production of the Fuego ends in France, with the introduction of the Renault 21.
- 1986 - Production ends in Spain. Production lines transferred to Argentina and Venezuela.
- 1987 - Production continues in Argentina (where it now features the 2,165 cc engine as the only available powerplant with 116 PS or 85 kW; 114 hp) and Venezuela.
- 1990 - The final phase III GTA is introduced with new bumpers, white front indicators, and charcoal tail-lights. The higher performance GTA Max, an improved version of the GTA, is introduced in Argentina with a 2.2 engine and 123 PS (90 kW; 121 hp) by Berta Motorsport.
- 1995 - South American production ends.
In James Bond films
Renault Fuego used in A View to a Kill for transport of the Bond Girl.
Rating
Technical
-
Renault Fuego Maintenance and Service Guide (1979-1986)
Gearbox and final drive 3.5 imp Pt 4.2 US pt. 2 1, SAE 80, change every 18,600 miles, 30.000 km
Greasing: none
Tyre pressure: front 27 psi, 1.9 atm, rear 30 psi. 2.1 atm.
Width of rims: 5.5"
Tyres: 155 SR x 13 - GTL Coupe 175/70 x 13.,185/65 HR x 14 tyres.
Carrying capacity: 959 1b, 435 kg:
Fuel tank: 12.5 imp gal. 15 US gal.ENGINE: 1.4L
Fuel: 98 oct petrol
Oil change: engine 5.6 imp pt. 6.8 US pt. 3.2 1, SAE 20W-40. change every 4.650 miles, 7,500 km
Cooling capacity, 10.5 imp pt. 12.7 US ptENGINE: 1.6L
oil change: engine 7.4 imp pt, 8.9 US pt
cooling: 11.1 imp pt, 13.3 US ptENGINE: 2.0L
lubrication: 9.2 imp pt, 11 US pt
cooling: 14.1 imp pt, 16.9 US pt© Motor car History
-
Renault Fuego Technical details and specifications (1979-1986)
DIMENSIONS AND WEIGHT
wheel base: 96.22 in. 244 cm:
tracks: 56.30 in, 143 cm front, 53.15 in. 135 cm rear:
length: 171.65 in, 436 cm
width: 66.54 in. 169 cm
height: 51.97 in. 132 cm
weight 1.4L: 2,227 1b, 1.010 kweight 1.6L: 2,282 1b, 1,035 kg.
weight distribution: 57% front, 43% rearTRANSMISSION
driving wheels: front
clutch: single dry plate (diaphragm)
gearbox: mechanical; gears: 4. fully synchronized
gearbox ratios: I 3.818, II 2.176, III 1.409. IV 0.971. rev 3.083(OPTIONAL) 5-speed fully synchronized mechanical gear box
Ratios(I 3.818 II 2.176, III 1.409, IV 1.030. V 0.861. rev
gearbox lever location: central
final drive: hypoid bevel
axle ratio: 3.778 1.6L 3.556CHASSIS
type integral
front suspension: independent by McPherson, coil springs/telescopic damper struts. anti-roll bar
rear: rigid axle, longitudinal trailing arms, A-bracket. anti-roll bar, coil springs/telescopic dampers.STEERING
rack-and-pinion
turns lock to lock: 3.72.
turning circle: 36.1 ft. 11 m:BRAKES
front disc (diameter 9.4 in, 23.8 cm)
rear drum. dual circuit, rear compensator, servo
lining area: front 21.7 sq in, 140 sq cm, rear 89 sq in, 574 sq cm, total 110.7 sq in. 714 sq cm.ELECTRICAL EQUIPMENT
12 V
36 Ah battery
60 A alternatorENGINE: 1.4L
location front, 4 stroke
4 cylinders, vertical, in line; 85.2 cu in, 1,397 cc (2.99 x 3.03 in, 76 x 77 mm)
compression ratio: 9.25:1
light alloy block and head, wet liners
5 crankshaft bearings
valves: overhead, in line, push-rods and rockers
camshafts: 1. side
lubrication: gear pump, full flow filter 5.6 imp pt. 6.8 US pt
1 Solex 32 SEIA or Zenith 32 IF7 downdraught single barrel carburettor
fuel feed: mechanical pump
sealed circuit cooling, expansion tank, liquid, 10.5 imp pt. 12.7 US ptENGINE: 1.6L
100.5 cu in, 1,647 cc (3.11 x 3.31 in, 79 x 84 mm);
compression ratio: 9.3:1
hemispherical combustion chambers
valves: Vee-slanted
lubrication: 7.4 imp pt, 8.9 US pt
Weber 32 DARA downdraught twin barrel carburettor
electric thermostatic fan.ENGINE: 2.0L
121.7 cu in, 1,995 cc (3.46 x 3.23 in, 88 x 82 mm);
compression ratio: 9.2:1
hemispherical combustion chambers
valves: Vee-slanted
electric thermostatic fan.
Weber 32 DARA downdraught twin barrel carburettor© Motor car History
