Opel Omega A

Opel Omega A (1986-1993)

Production period:

1986 to 1993

Class:

Luxury car

Body versions:

Sedan, station wagon

Engines:

Gasoline  1.8-3.6 litres (60-277 kW)
Diesel: 2.3 litres (54-74 kW)

Length:

4738 mm

Width:

1760 mm

Height:

1445 mm

Wheelbase:

2730 mm

Curb weight:

1150-1370 kg



The Opel Omega A is a luxury car from Opel, which was built between 1986 and 1993.

History

In the tradition of the previous model Commodore C, the Omega was also sold with larger six-cylinder series engine option.

The car which was initially only available as a notchback, had a newly designed chassis with rear semi-trailing arm and disc brakes on all four wheels. Like its predecessor record, the Omega was also available as an Opel station wagon "Caravan". The body has a low C w value of 0.28, which together with the relatively low weight results in very good performance with low fuel consumption.

Initially, there were engines with 1.8 and 2.0 l displacement with 60 kW (82, 90 and 115 hp) without catalyst and the already used Kadet GSi 2.0 l with 85 kW (115 hp, with catalyst) or 90 kW (122 hp, without catalytic converter). There were also still the record 2.3 litre diesel or turbo diesel engines with 74 and 100 hp. From September 1988 to October 1992, there was a 2.4-liter injection engine with 92 kW (125 hp).

In August 1987, the Omega moved in a sporty variant as "Omega 3000" with six-cylinder engine in the model range. First, used from the Senator A 3.0 l gasoline engine with 115 kW (156 hp with catalyst) or 130 kW (177 hp without catalyst) were available. From spring 1988 then was a modernized three-litre with 130 kW (177 hp with catalyst) available. From this time, the 3.0 l with power of 115 kW (156 hp).

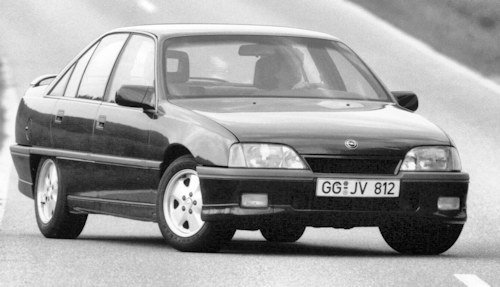

Opel Omega A (1986-1993)

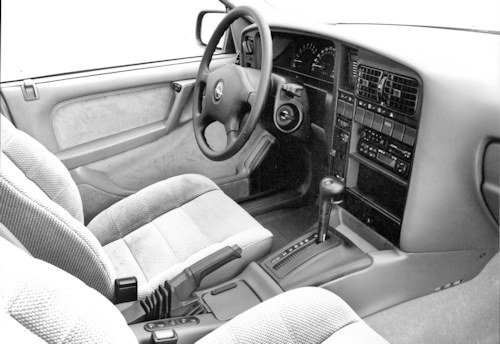

In July 1990, a new Facelift the Omega A was visually and technically redesigned. The external characteristics of this facelift with more chrome bumper and protective strips and the dark tinted taillights. At the same time, a 110 kW (150 hp) 2.6 l six-cylinder (C26NE) was used for both the sedan and the estate. Also new was the 3.0 l 24V engine with up to 150 kW (204 hp). This engine had two overhead camshafts and an intake manifold (DUAL-RAM) and offered very good performance with relatively low fuel consumption. As an estate, the strongest variant was initially called simply 3.0i. With the facelift and the caravan estate versions, the strong 3.0 l-24V engine was installed, henceforth was called the most powerful station wagon variant, "Omega Caravan 24V”. In the last year of production of the Omega A, even the most powerful variant of the notchback sedan was called Omega 24V only. It gave way to the "3000".

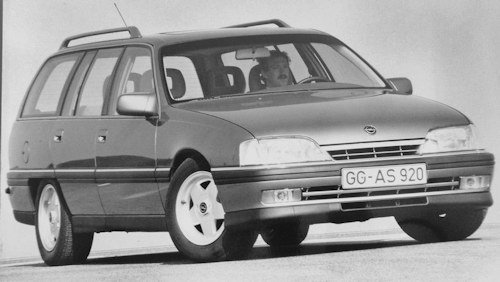

Opel Omega 30-24v Station-Wagon

In the summer of 1990, a particularly strong version of the series was introduced: the Omega Evolution 500 3.0 24V. This was a racing machine that was homologated for road approval. The engine (169 kW / 230 HP) was created by the tuner Irmscher by modification of the 3,0 l 24V. It was produced for only one year, from September 1990 to August 1991, and produced in only 500 copies.

In 1988, Arkansas -based American bodybuilder Armbruster & Stageway built an extended version of the six-door Omega that was distributed by Earnhart & Johansen. From 1989 offered Opel regularly via the dealer network also a six-door Omega. This had eight seats and an outside length of 5.58 meters with a curb weight from 1555 kg depending on the equipment, on request, a fixed centre seat.

The production of the Omega A ended in August 1993, while the sale lasted until March 1994. In April 1994, the model was replaced with the Omega B.

The Opel Omega was also sold in Brazil. There it replaced the completely outdated Chevrolet Opala, which was still based on the Opel Rekord C, and was produced from 1992 to 1998 as Chevrolet Omega. Variants: GL, GLS and CD. The caravan was called Suprema there. As engines of the 2.0i and 3.0i were used. When the supplies of (originating from Germany) 3.0-liter six-cylinder were used up, it was replaced by an outdated, 4.1-liter six-cylinder in-line engine from Chevrolet, which had already been used in the previous model Opala. The second Brazilian omega generation was no longer produced in Brazil, but imported from Holden in 2001 (Holden Commodore).

Opel Omega a Technical details and specifications

Related items
Opel Omega | Vehicles launched in 1986 | Germany 1990s | Germany 1980s | Luxury Cars

Rating

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  •  Vauxhall Omega A Technical specifications (1986-1994)

    Opel Omega:

    1.8N

    1.8p

    1.8 i

    2.0 i

    2.4 i

    2.3 diesel

    2.3 turbo diesel

    2.6 i

    3.0 i

    3000/3.0i 24V

    Engine:

    4-cylinder in-line engine (four-stroke)

    6-cylinder in-line engine (four-stroke)

    Displacement:

    1796cc

    1998cc

    2410cc

    2260cc

    2594cc

    2969cc

    Bore × Stroke:

    84.8×79.5mm

    86×86mm

    95×85mm

    92×85mm

    88.8×69.8mm

    95 × 69.8mm

    Performance at 1/min:

    60 kW
    (82 hp)
    at 5400

    66 kW (90 hp)
    at 5200

    85 kW
    (115 hp)
    at 5600

    85-90 kW (115-122 hp)
    at 5400

    92 kW (125 hp)
    at 4800

    54 kW
    (73 hp)
    at 4400

    66-74 kW
    (90-100 hp)
    at 4200

    110 kW
    (150 hp)
    at 5600

    115-130 kW
    (156-177 hp)
    at 5600

    147–150 kW
    (200–204 hp)
    at 6000

    Max. torque at 1/min:

    132 Nm at 3000

    145 Nm at 3400

    157 Nm at 4000

    167-172 Nm at 2600

    191 Nm at 2500

    135 Nm at 2400

    186-214Nm at 2100-2200

    216 Nm at 3600

    225-235Nm at 4100-4400

    270 Nm at 3600

    Mixture preparation:

    1 register downdraught carburettor

    injection

    electronic injection (Bosch Motronic)

    Bosch diesel injection pump

    electronic injection (Bosch Motronic)

    valve control:

    Overhead valves, hydraulic tappets (overhead camshaft, timing belt)

    Overhead valves, hydraulic lifters (overhead camshaft, duplex chain)

    Hanging valves (overhead camshaft, chain)

    Overhead Valves, Hydraulic Lifters (Side Camshaft, Duplex Chain)

    24 valves, hydraulic lifters (2 overhead camshafts, chains)

    Cooling:

    water cooling

    Transmission:

    5-speed gearbox, middle
    circuit (optional (except 1.8S from 1989 and 2.3 TD with 74 kW) four-speed automatic (Opel))

    Front suspension:

    MacPherson strut axle, coil springs

    Rear suspension:

    Trailing arm axle, coil springs

    Brakes:

    Four-wheel disc brakes, Ø front 258 mm, rear 270 mm

    Ø front and rear 296 mm

    Body:

    Sheet steel, self-supporting

    Track width front/rear:

    1447-1462/1468-1494mm

    Wheelbase:

    2730mm

    Length:

    4687-4742mm

    curb weight:

    1200-1535kg

    Top speed:

    175-180km/h

    178-183km/h

    190-195km/h

    193-200km/h

    198-200km/h

    163km/h

    170-180km/h

    215 km/h

    213-227km/h

    150 mph

    0-100km/h:

    15-16.5s

    14-15.5s

    12-13.5s

    10.5-13s

    11–12s

    21-23.5s

    14–17s

    10s

    9-10s

    7.6s

    Consumption (litres/100 kilometres):

    10.5N

    9.5p

    10.0p

    10.0-10.5 p

    11.5 p

    10.0D

    11.0–11.5D

    12.5 p

    12.5–13.0 pp

    12.5 p



    Engines

    Petrol engine

    4-cylinder

    • 1.8N (18NV, LV9) OHC in-line engine with 2E3 carburettor and 60 kW / 82 hp; with U-cat (08.1986-08.1987)
    • 1.8 (18SV, LV9) OHC in-line engine with 2E3 carburettor and 66 kW / 90 hp; without cat (08.1986-08.1987)
    • 1.8S (E18NVR, LV9) OHC in-line engine with 2EE carburettor and 65 kW / 88 hp; without cat (08.1987-10.1989)
    • 1.8i (18SEH, LV6) OHC in-line engine with L3-Jetronic and 85 kW / 115 hp; without cat (08.1986-08.1987)
    • 2.0i (C20NEJ) OHC in-line engine with Motronic 1.5 and 73 kW / 99 hp; with G-cat (07.1990-08.1992)
    • 2.0i (C20NEF) OHC in-line engine with Motronic 1.5 and 74 kW / 100 hp; with G-Kat (07.1990-08.1993, only official vehicles)
    • 2.0i (C20NE, LE4) OHC in-line engine with Motronic 4.1 / 1.5 and 85 kW / 115 hp; with G-cat (08.1986-08.1993)
    • 2.0i (20SE, L96) OHC in-line engine with Motronic 4.1 and 90 kW / 122 hp; without cat (08.1986-08.1987)
    • 2.4i (C24NE, LU6) CIH in-line engine with Motronic 1.5 and 92 kW / 125 hp; with G-Kat (08.1988-08.1993)

    6-cylinder

    • 2.6i (C26NE, LY0) CIH in-line engine with Motronic 1.5 and 110 kW / 150 hp; with G-cat (08.1990-08.1993)
    • 3.0i (C30LE, LF8) CIH in-line engine with Motronic 4.1 and 115 kW / 156 hp; with G-Kat (08.1987-10.1989)
    • 3.0Si (30NE, LF1) CIH in-line engine with L2-Jetronic and 130 kW / 177 hp; without cat (08.1987-08.1988)
    • 3.0i (C30NE, LF1) CIH in-line engine with Motronic 4.1 / 1.5 and 130 kW / 177 hp; with G-cat (08.1988-08.1992)
    • 3.0i 24V (C30SEJ, LF2) DOHC in-line engine with Motronic 1.5 and 147 kW / 200 hp; with G-cat (07.1990-08.1993)
    • 3000 24V (C30SE, LF2) DOHC in-line engine with Motronic 1.5 and 150 kW / 204 hp; with G-cat (10.1989-08.1993)
      • Irmscher
      • 3.0i Evo 500 (C30XEI) 6-cylinder inline DOHC engine and 169 kW / 230 hp; with G-cat
      • 3.6i (C36NEI) 6-cylinder CIH in-line engine with Motronic 4.1 and 153 kW / 208 hp; with G-cat
      • 3.6i (C36NE) 6-cylinder CIH in-line engine with Motronic 4.1 and 145 kW / 197 hp; with G-cat
      • 4.0i-24V (C40SE) 6-cylinder DOHC in-line engine with 200 kW / 272 hp; with G-Cat;
      • lotus
      • Lotus Omega (C36GET, LF2) 6-cylinder DOHC in-line engine with 277 kW / 377 hp; with double G-cat

    Diesel

    • 2.3 D (23YD, LW7) 4-cylinder OHC in-line engine with distributor injection pump and 54 kW / 73 hp; from 9/89 with U-cat (previously without); (08.1986-08.1993)
    • 2.3 TD (23YDT, LP6) 4-cylinder OHC in-line engine with distributor injection pump and turbocharger and 66 kW / 90 hp; without cat (08.1986-08.1988)
    • 2.3 TD (23DTR, LP6) 4-cylinder OHC in-line engine with distributor injection pump, turbocharger, intercooler and 74 kW / 100 hp; without cat (08.1988-08.1993)

    Equipment variants

    • LS
    • GL
    • GLS
    • GLT (from August 1992)
    • CD
    • 3000 (1986-1990)
    • 3000-24V (1990-1992)
    • 24V (Caravan from August 1990 until the end of production, sedan until August 1992)

    Special models

    • GL Diamond (1988-1992)
    • GLS Diamond (1988-1990)
    • CD Diamond (1988-1993)
    • Club (Caravan only)
    • Travel (Caravan only)
    • GL Sportive
    • CD Sportive
    • Sports
