|Production||1955-1963 25,881 built|
|Assembly||Stuttgart Untertürkheim, Germany|
|Successor||Mercedes-Benz W113 (230SL)|
|Body style||2-door roadster|
|Engine||1,897 cc M121 SOHC I4|
|Transmission||4-speed manual, fully synchronized|
|Wheelbase||2,400 mm (94.5 in)|
|Length||4,290 mm (168.9 in)|
|Width||1,740 mm (68.5 in)|
|Height||1,320 mm (52.0 in)|
|Curb weight||2,552 lb (1,158 kg)|
|Related||Mercedes-Benz W198 (300SL) Mercedes-Benz W120/121|

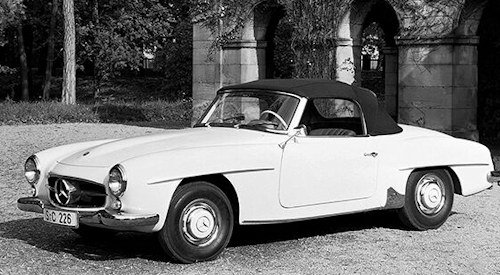

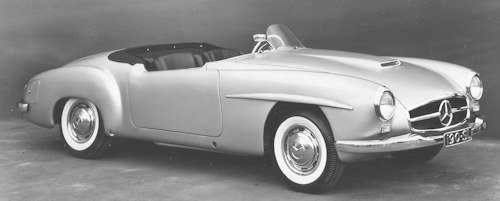

The Mercedes-Benz 190SL is a two-door grand touring convertible with an optional removable hardtop that was produced by Mercedes-Benz between May 1955 and February 1963. A prototype was first shown at the 1954 New York Auto Show.

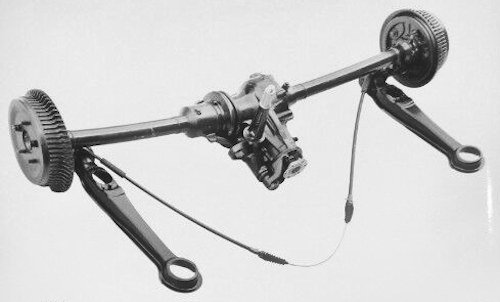

The 190SL was sold alongside the faster, more expensive Mercedes-Benz 300SL, which it closely resembled both in its styling, engineering, detailing and fully independent suspension, both cars having double wishbone suspensions at the front and swing axles at the rear. However, the 190SL did not use the 300SL's purpose-built tubular spaceframe W198 platform, but was built on a shortened and monocoque R121 platform that modified from the W121 small saloon. BODY: convertible; doors: 2; seats: 2.
- max speed in 1st gear: 31.1 mph, 50 km/h
- max speed in 2nd gear: 47.2 mph, 76 km/h
- max speed in 3rd gear: 74.6 mph, 120 km/h
- max speed in 4th gear: 108.7 mph, 175 km/h
power-weight ratio: 20.1 lb/hp, 9.1 kg/hp
useful 'load: 761 1b, 345 kg
max gradient in 1st gear: 50 %, speed in direct drive at 1000 rpm: 18.3 mph, 29.5 km/h
The 190SL was powered by a new, slightly oversquare 1.9 L straight-four SOHC engine (Type M121 BII), that developed 105 PS (77 kW; 104 hp) (or 120 gross hp) that earned itself a reputation for not running that smoothly mostly due to the difficulty in properly synchronising the twin-choke dual Solex carburetors, and that, in detuned form, was later also used in the W120 180 and W121 190 models. The four-cylinder engine block of the 190SL was based on the six-cylinder engine of the 300 SL.

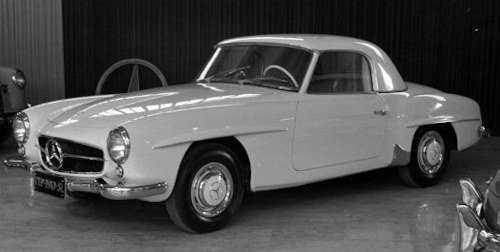

The 85 mm bore was transferred unchanged from the larger engine to the smaller, although the stroke for the 190 SL was reduced from 88.0 mm to 83.6 mm. The car was available either as a soft-top convertible or with removable hardtop (DM 17,650/$ 4,295). Optional was a third-passenger transverse seat that could even fit an adult. During its first years the 190SL was available as a sports-racing model with small perspex windscreen and spartan one-piece leather covered bucket seats and aluminum doors, although any competition aspirations were modest. In 1959, the hardtop's rear window was enlarged.
Both the 190SL and the 300SL were replaced by the Mercedes-Benz 230SL in 1963.
