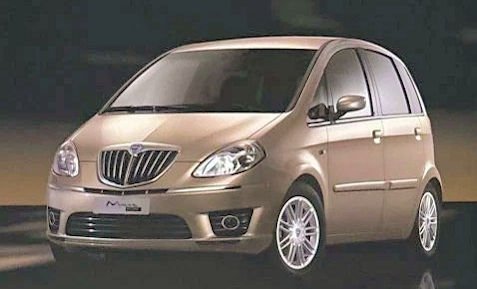

Lancia Musa
 |
|
|
Production period: |
2004 to 2012 |
|
Class : |
Motor Car |
|
Body versions : |
minivan station wagon |
|
Engines: |
Gasoline : 1.4 liters (57-70 kW) |
|
Length: |
3985-4037 mm |
|
Width: |
1698-1703 mm |
|
Height: |
1688-1684 mm |
|
Wheelbase : |
2508 mm |
|
Curb weight : |
1230-1350 kg |
The Lancia Musa is a minivan of the Italian car manufacturer Lancia, which was manufactured between spring 2004 and summer 2012.
The musa was the first vehicle of this type and size from Lancia. This was also referred to by the manufacturer as a compact van or compact MPV (Multi-Purpose Vehicle). The presentation took place in March 2004 at the Geneva Motor Show, then the sale started in late summer.
The Musa was created together with the sister model Fiat Idea, but was better equipped. For example, there were seat covers made of a leather Alcantara combination, chrome trim, navigation system and a Bose sound system as an option. The Musa is on the one hand an independent model, but act as a replacement for a five-door version of the then Lancia Ypsilon. The Musa was produced at the Lancia Mirafiori plant in Turin and carries the internal type designation 350.

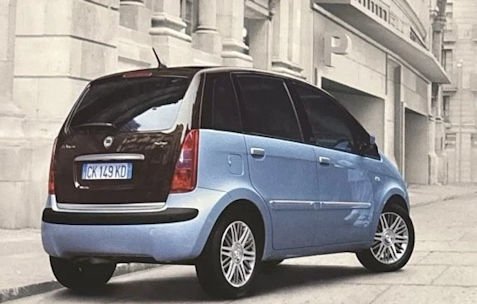

At the 64th International Film Festival in September 2007 in Venice, the revised Musa celebrated its world premiere. Changes include; the front bumper and the grille have also been modified. Similarly, the tailgate, rear skirt and taillights have been redesigned, which are now equipped with LED lights.

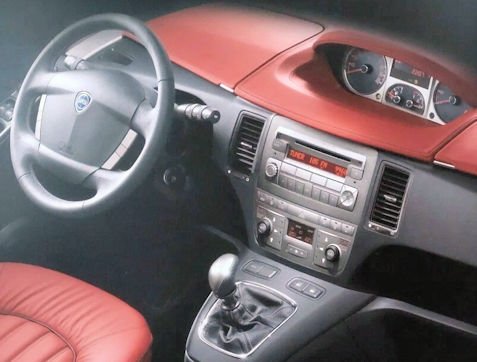

The "Nuova Musa" also featured a new wheel design and new exterior paintwork, again offering various bi-color finishes. In the interior, the luggage compartment volume could be increased by 75 l by lowering the loading floor. There were also other colors for the seat covers and the dashboard.
In July 2012, the production of Musa was completed without successor.
Related
Technical
-
Body/Weight:
MPV
5-door,
5 seats
curb weight from 1,155 kg, GVW 1,655 kg.Transmission
(front-wheel drive):
ESP, 5-speed manual
1st 3.91, 2nd 2.16, 3rd 1.48, 4th 1.12, 5th 0.92, Rev 3.82, final drive 3.87.Chassis:
unibody with subframe
front: strut-type suspension, transverse wishbones
rear: semi-rigid axle
coil springs front/rear
front anti-roll bar.
Enginesmodel
capacity
power
Max. Torque
transmission
construction time
gasoline engines
1.4 8v
1368 cc
57 kW (77 hp) at 6000 min -1
115 Nm at 3000 min -1
Five-speed manual
04 / 2004-10 / 2010
1.4 16v
1368 cc
70 kW (95 hp) at 5800 min -1
128 Nm at 4500 min -1
Six-speed manual
5- speed automatic transmission04 / 2004-07 / 2012
diesel engines
1.3 Multijet 16v
1248 cc
51 kW (70 hp) at 4000 min -1
180 Nm at 1750 min -1
Five-speed manual transmission
5-speed automatic transmission04 / 2004-10 / 2010
1.3 Multijet 16v
1248 cc
66 kW (90 hp) at 4000 min -1
235 Nm at 2000 min -1
Five-speed manual
04 / 2004-10 / 2010
1.3 Multijet 16v
1248 cc
70 kW (95 hp) at 4000 min -1
200 Nm at 1750 min -1
Five-speed manual
11 / 2010-07 / 2012
1.6 Multijet 16v
1598 cc
88 kW (120 hp) at 4000 min -1
300 Nm at 1500 min -1
Five-speed manual
07 / 2008-10 / 2010
1.9 Multijet 8v
1910 cm³
74 kW (100 hp) at 4000 min -1
260 Nm at 1750 min -1
Five-speed manual
10 / 2004-07 / 2008
Technical data
Lancia Musa Otto engines (as of 2010)
Lancia Ypsilon Otto engines
Lancia Musa:
1.4 8V
1.4 16V
1.4 16 V Start & Stop
Engine:
4-cylinder in-line engine (four-stroke), front transverse
Valves per cylinder:
2
4
Engine displacement:
1368 cm³
Power at 1/min:
57 kW
(77 hp) at 600070 kW
(95 hp) at 5800Max. Torque at 1/min:
115 Nm at 3000
128 Nm at 4500
Mixture preparation:
Electronic multipoint fuel injection
Valve control:
OHC, timing belt
DOHC, timing belt
Drive type:
Front-wheel drive
Transmission:
Manual, 5-speed
Manual, 6-speed/DFN 5-speed
Front wheel suspension:
individually on MacPherson struts, wishbones, and stabilizer
Rear wheel suspension:
Compound link axle with hydraulic telescopic shock absorbers and coil springs
Steering:
Dualdrive electric power steering, 10 m turning circle
Braking system:
Front discs 257 mm (interior ventilated), rear drums 203 mm
Seating:
5
Length/Width/Height:
3985/1698/1660 mm; from autumn 2007: 4037/1703/1684 mm
Wheelbase:
2509 mm
Unladen weight (incl. 75 kg driver weight)/zul. Total weight:
1230/1655 kg
Trunk volume:
315–1420 l, since model revision: 390–1488 l
Tank volume:
47 l
Fuel:
Super lead-free (ROZ 95)
Maximum speed:
163 km/h
175 km/h
Acceleration 0–100 km/h:
13.5 s
11.5 s
Consumption (liters/100 km) according to Directive 80/1268/EEC:
City:
7.5 l
8.7 l (8.3 l)
8.0 l (7.2 l)
Overland:
4.9 l
5.4 l (5.4 l)
4.9 l (4.6 l)
combined:
5.9 l
6.6 l (6.4 l)
6.0 l (5.6 l)
CO2 emissions (g/km):
139
157 (153)
140 (130)
Exhaust emissions standard:
Euro 4
Euro 5
Values in parentheses apply to DFN automation
Lancia diesel engines
Lancia Musa:
1.3 Multijet 16 V
1.3 Multijet 16 V
1.3 Multijet 16 V Start & Stop
Engine:
4-cylinder in-line engine (four-stroke), front transverse
Valves per cylinder:
4
Engine displacement:
1248 cm³
Power at 1/min:
51 kW
(70 hp) at 400066 kW
(90 hp) at 400070 kW
(95 hp) at 4000Max. Torque at 1/min:
180 Nm at 1750
200 Nm at 1750/1500
Mixture preparation:
Multijet direct injection type „common-rail“, electronically controlled, turbocharger and intercooler
Valve control:
DOHC, timing chain
Drive type:
Front-wheel drive
Transmission:
Manual, 5-speed
Manual 5-speed/DFN 5-speed
Manual, 5-speed/DFN 5-speed
Front wheel suspension:
individually on MacPherson struts, wishbones, and stabilizer
Rear wheel suspension:
Compound link axle with hydraulic telescopic shock absorbers and coil springs
Steering:
Dualdrive electric power steering, 10 m turning circle
Front brake system:
Discs 257 mm (interior ventilated)
Discs 284 mm (interior ventilated)
Rear brake system:
Drums 203 mm
Drums 228 mm
Seating:
5
Length/Width/Height:
3985/1698/1660 mm; from autumn 2007: 4037/1703/1684 mm
Wheelbase:
2509 mm
Unladen weight (incl. 75 kg driver weight)/zul. Total weight:
1275/1700 kg
Trunk volume:
315–1420 l, since model revision: 390–1488 l
Tank volume:
47 l
Fuel:
diesel
Maximum speed:
159 km/h
173 km/h
175 km/h
Acceleration 0–100 km/h:
15.4 s
12.5 s
Consumption (liters/100 km) according to Directive 80/1268/EEC:
City:
6.0 l
6.0 l (5.8 l)
5.4 l (5.0 l)
Overland:
4.2 l
4.0 l (3.9 l)
3.7 l (3.6 l)
combined:
4.9 l
4.7 l (4.6 l)
4.3 l (4.1 l)
CO2 emissions (g/km):
129
120 (118)
114 (109)
Exhaust emissions standard:
Euro 4
Euro 5
Lancia diesel engines
Lancia Musa:
1.6 Multijet 16 V
1.9 Multijet 16V
Engine:
4-cylinder in-line engine (four-stroke), front transverse
Valves per cylinder:
4
Engine displacement:
1598 cm³
1910 cm³
Power at 1/min:
88 kW
(120 hp) at 350074 kW
(100 hp) at 4000Max. Torque at 1/min:
300 Nm at 1500
260 Nm at 1750
Mixture preparation:
Multijet direct injection type „common-rail“, electronically controlled, turbocharger and intercooler
Valve control:
DOHC, timing belt
Drive type:
Front-wheel drive
Transmission:
Manual, 5-speed
Front wheel suspension:
individually on MacPherson struts, wishbones, and stabilizer
Rear wheel suspension:
Compound link axle with hydraulic telescopic shock absorbers and coil springs
Steering:
Dualdrive electric power steering, 10 m turning circle
Front brake system:
Discs 284 mm (interior ventilated)
Rear brake system:
Discs 228 mm
Drums 228 mm
Seating:
5
Length/Width/Height:
3985/1698/1660 mm; from autumn 2007: 4037/1703/1684 mm
Wheelbase:
2509 mm
Unladen weight (incl. 75 kg driver weight)/zul. Total weight:
1350 kg/1775 kg
Trunk volume:
315–1420 l, since model revision: 390–1488 l
Tank volume:
47 l
Fuel:
diesel
Maximum speed:
190 km/h
179 km/h
Acceleration 0–100 km/h:
9.9 s
11.5 s
Consumption (liters/100 km) according to Directive 80/1268/EEC:
City:
6.2 l
6.5 l
Overland:
4.2 l
4.4 l
combined:
4.9 l
5.2 l
CO2 emissions (g/km):
129
137
Exhaust emissions standard:
Euro 5 ready
Euro 4
Values in parentheses apply to DFN automation
