Honda Vigor 3rd generation CB5/CC2/3 t

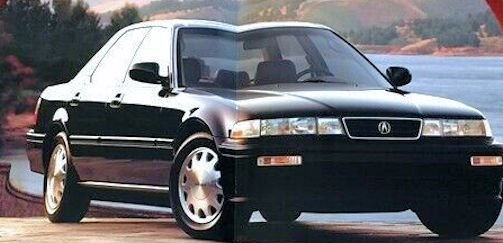

Honda Vigor 3rd Gen (1989-1995)

Production

 Japan

Sales period

1989 to 1995

Boarding capacity

5 people

body type

4 door hardtop

Drive system

front wheel drive

engine

G25A type: 2.5L inline 5 SOHC
G20A type: 2.0L inline 5 SOHC

transmission

4-speed AT/5-speed MT

suspension

Double wishbone

Wheelbase

2,805mm

full length

Early: 4,690 mm
Late: 4,830 mm

Width

Early: 1,695 mm
Late : 1,775 mm

Height

Early: 1,355 mm
Late : 1,375 mm

vehicle weight

Early : 1,270-1,350 kg
Late : 1,370-1,440 kg

Built

87,000 units aprox

The Honda Honda Vigor 3rd generation was built from 1989 to 1995.

History

On October 12, 1989 , it was released as a sister car of Accord Inspire , which was newly born as a high-end model of Accord . In North America, it was sold as the Honda's luxury car brand, Acura .

The G20A is mounted in a vertical front midship layout on a long wheelbase 4-door pillared hardtop body . The grades are "Type N" / "Type E" / "Type W" / "Type X" from the bottom. By moving away from the conventional Accord, the personal and sporty character was further strengthened, and the early AT specification was equipped with a gun grip type shift lever.

Partially changed in May 1991 . The shift lever of the car will change from the grip type to the normal one. In addition, the cheapest grade "Type N" was abolished, and "Type S-Limited" was added instead. At the rear, the tail lamps were changed and the garnish was abolished. At the same time, the "VIGOR" mark was moved from the upper right corner of the trunk lid to the center, and the "H" mark was moved to the center of the trunk lid. On January 29, 1992 , a model equipped with a 2.5L G25A and an improved 5PS G20A was added to the 3 number body. G25A-equipped model (model: CC2) is premium gasoline specification, AT specification only. The grade is "25XS" / "25X" / "25S" / "25W". The G20A-equipped vehicle model CC3 was a regular gasoline specification, and unlike the Inspire, an MT specification was also available. The grade is "20G" only.

In January 1995  , production was discontinued due to less orders, and sales were limited to inventory. In February 1995 , Saber appeared as a successor car in Japan . Acura TL also appeared in North America and was discontinued.

Honda Vigor 3rd Gen (1989-1995)

Related items
Honda Vigor | Japanese Vehicles 1990s | Japanese Vehicles 1980s | Vehicles launched in 1989

Technical

Technical
  • 3rd generation

    Honda G20A type

    • Engine type: Water-cooled in-line 5-cylinder longitudinally mounted
    • Valve mechanism: SOHC belt drive intake 2 exhaust 2
    • Total displacement: 1,996 cc
    • Inner Diameter x Stroke: 82.0 mm x 75.6 mm
    • Compression ratio: 9.7:1
    • Maximum power (net): 165 PS @ 6,700 rpm
    • Maximum torque (net value): 19.0 kgf m @ 4,000 rpm
    • Fuel supply device type: Electronically controlled fuel injection type (Honda PGM-FI)
    • Fuel type used: unleaded regular gasoline
    • Fuel tank capacity: 65 L

    Honda G25A type

    • Engine type: Water-cooled in-line 5-cylinder longitudinally mounted
    • Valve mechanism: SOHC belt drive intake 2 exhaust 2
    • Total displacement: 2,451 cc
    • Inner Diameter x Stroke: 85.0 mm x 86.4 mm
    • Compression ratio: 10.0:1
    • Maximum power (net): 190 PS @ 6,500 rpm
    • Maximum torque (net value): 24.2 kgf m @ 3,800 rpm
    • Fuel supply device type: Electronically controlled fuel injection type (Honda PGM-FI)
    • Fuel type used: Unleaded premium gasoline
    • Fuel tank capacity: See 3rd generation G20A type

Manuals

Download: Workshop manuals Tech Guides exclusive to registered users.
