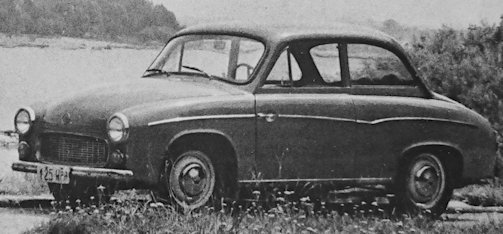

FSO Syrena 104
 | |
Manufacturer | FSO |
Production | 1966 to 1972 |
Class | Motor Car |
Engine | 842 cu cm |
Transmission | 4-speed manual |
Wheelbase | 90.55 in, 2,300 mm |
Length | 159.05 in, 4,040 mm |
Width | 61.42 in, 1,560 mm |
Height | 59.65 in, 1,515 mm |
Dry weight | 1,874 1b, 850 kg |
The FSO Syrena 104 was a Polish automobile model manufactured from 1966 to 1972 by the Fabryka Samochodów Osobowych (FSO).
History
In 1966 the 104 appeared. It had a larger different 2 stroke three-cylinder engine. 70 mm bore and 73 mm stroke resulted in a displacement of 843 cm³ fitted with the Jikov 35 POH/048 horizontal carburettor gave this an output of 40 hp with a max speed of 74.6 mph, 120 km/h and now a distribution of weight of 48% to front axle and 52% at rear axle. The four-speed gearbox with steering column change was fully synchronized. The front indicators were much larger than before. The side moulding was at the height of the door handle and the carrying capacity 706 1b, 320 kg.
The chassis of box-type ladder frame and front suspension as independent with wishbones, transverse leaf spring lower arms, lever dampers at the rear rigid type axle, transverse upper leaf spring, trailing radius arms, lever dampers.
PERFORMANCE
Engine capacity: 51.38 cu in, 842 cu cm
Fuel consumption: 32.1 m/imp gal, 26.7 m/US gal, 8.8 1 x 100 km
Max speed: 74.6 mph, 120 km/h
Max power (SAE): 40 hp at 4,300 rpm
Max torque (SAE): 58 1b ft, 8 kg m at 2,750 rpm
Max engine rpm: 5,200
Specific power: 47.5 hp/l
Power-weight ratio: 46.7 lb/hp, 21.2 kg/hp
Acceleration:0—50 mph (0—80 km/h) 21 sec
Max speeds: 19.3 mph, 31 km/h in 1st gear; 31.7 mph, 51 km/h in 2nd gear; 50.3 mph, 81 km/h in 3rd gear; 74.6 mph, 120 km/h in 4th gear
Description
Technical
-
FSO Syrena 104 Technical details and specifications (1966-1972)
ENGINE
location front
2 stroke; cylinders: 3, vertical, in line
bore and stroke: 2.76 x 2.87 in, 70 x 73 mm
engine capacity: 51.38 cu in, 842 cu cm
compression ratio: 7-7.2
cylinder block: cast iron
cylinder head: light alloy
crankshaft bearings: 4, on ball bearings
lubrication:gear pump, mixture I : 30
carburation: 1 Jikov 35 POH/048 horizontal carburettor
fuel feed: mechanical pump
cooling system: waterTRANSMISSION
driving wheels: front
clutch: single dry plate
gearbox: mechanical; gears: 4 (free wheel) + reverse
gearbox ratios: I 3.900, II 2.357, III 1.474,IV 0.958, rev 3.273
gear lever: steering column
final drive: spiral bevel
axle ratio: 4.875.CHASSIS
box-type ladder frame
front suspension: independent, wishbones,transverse leafspring lower arms, lever dampers
rear suspension: rigid axle,transverse upper leafspring, trailing radius arms, lever dampers.STEERING
worm and roller
turns of steering wheel lock to lock: 2.80.
turning circle (between walls): 34.1 ft, 10.4 mBRAKES
drum
area rubbed by linings: front 136.44 sq in, 880 sq cm, rear 85.27sq in, 550 sq cm
total 221.71 sq in, 1,430 sq cm.ELECTRICAL EQUIPMENT
voltage: 12 V
battery: 37.5 Ah
generator type:dynamo, 200 WDIMENSIONS AND WEIGHT
wheel base: 90.55 in, 2,300 mm
front track: 47.24 in, 1,200 mm
rear track: 48.82 in, 1,240 mm
overall length: 159.05 in, 4,040 mm
overall width: 61.42 in, 1,560 mm
overall height: 59.65 in, 1,515 mm
ground clearance: 7.87 in, 200 mm
dry weight: 1,874 1b, 850 kg
distribution of weight: 48% front axle, 52% rear axle© Motor car History
-
FSO Syrena 104 Service Guide (1966-1972)
Fuel: mixture 1 : 30
Gearbox and final drive oil: 4.05 imp pt, 4.86 US pt, 2.31, SAE 50, change every 7,500 miles, 12,000 km
Cooling system capacity:12.32 imp pt, 14.80 US pt
Greasing: every 7,500 miles, 12,000 km, 29 points
Sparking plug type: 1750 or 2250
Normal tyre pressure: front 23 psi, 1.6 atm, rear 23 psi, 1.6 atm.
Width of rims: 4"
Tyres: 5.60 x 15
Fuel tank capacity: 7.5 imp gal, 9 US gal© Motor car History
