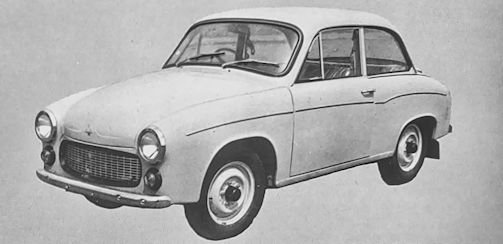

FSO Syrena 105
![]() | |
Manufacturer | Fabryka Samochodów Osobowych (FSO) till 1972 Fabryka Samochodów Małolitrażowych (FSM) after 1972 |
Production | 1972 to 1983 |
Body style | 2-door saloon 'Syrena Bosto' Light panel van Light pick-up truck |
Layout | FF layout |
Engine | 842 cc two stroke straight-3 |
Transmission | 4-speed manual |
Wheelbase | 2,300 mm (91 in) |
Length | 4,030 mm (159 in) - 4,080 mm (161 in) |
Width | 1,530 mm (60 in) |
Height | 1,520 mm (60 in) |
Curb weight | 950 kg (2,100 lb) |
The Syrena 105 was a Polish automobile model by the Fabryka Samochodów Osobowych (FSO) in Warsaw and from 1972 to 1983 by Fabryka Samochodów Małolitrażowych (FSM) in Bielsko-Biała.
History
The Syrena was produced in various models: 100, 101, 102, 103, 104, while the most popular model was the 105. All were 2-door sedans with two-stroke engines, initially of two cylinders. In 1965 the Syrena received a larger 3-cylinder Wartburg developed engine at roughly the same time as Wartburg launched their new 353 model based on the Polish Warszawa 210.
Syrena 105 was assembled in two factories – in FSO (1972), like the earlier models, and in FSM (1972–83). Unlike its predecessors it had regular front doors instead of "suicide" ones. The "Lux" version, produced from 1974, had the gear lever and handbrake between the front seats. The 105 served as a basis for two other models – Syrena R-20, which was a pick-up and a van. Bosto Fitted with an 842-cc front 2 stroke; 3 cylinders, vertical, in line Engine driving the front wheels from a 4 speed fully synchronized gearbox. With worm and roller steering and front and rear drum brakes.
PERFORMANCE
- max speeds: (l) 19 mph, 31 km/h; (II) 32 mph, 51 km/h; (III) 50 mph, 81 km/h; (IV) 75 mph, 120 km/h;
- Power-weight ratio: 47.8 lb./hp (65 lb./kW), 21.7 kg/hp (29.5 kg/kW)
- Max power (DIN): 40 hp (29 kW) at 4,300 rpm
- Max torque (DIN): 58 1b ft, 8 kg m (78 Nm) at 2,750 rpm
- Max engine rpm: 5,200; 47.5 hp/l (34.9 kW/l)
- Acceleration: 0-50 mph (0-80 km/h) 21 sec
- Speed in top at 1,000 rpm: 14.9 mph, 24 km/h
- Fuel consumption: 32.1 m/imp gal, 26.7 m/US gal, 8.8 Ix 100 km.
The Syrena 105L was featured in 2013-Wheeler Dealers TV show, where, after restoration, was sold for £8000 to Bubble Car Museum in Lincolnshire.
Description
Technical
-
FSO Syrena 105 Technical details and specifications (1972-1983)
ENGINE
location front
2 stroke; 3 cylinders, vertical, in line
Engine capacity: 51.4 cu in, 842 cc
Bore and stroke: 2.76 x 2.87 in, 70 x 73 mm
compression ratio: 7-7.2:1
cast iron block, dry liners
light alloy head
4 crankshaft bearings on ball bearings
lubrication: mixture; 1 Jikov 35POH/048 horizontal carburettor
fuel feed: mechanical pump
water-cooledTRANSMISSION
driving wheels: front
clutch: single dry plate
gearbox: mechanical; gears: 4, free wheel
fully synchronized
ratios: I 3.900, II 2.357, III 1.474, IV 0.958, rev 3.273
gear lever location: steering column
final drive: spiral bevel
axle ratio: 4.875CHASSIS
box-type ladder frame
front suspension: independent, wishbones, transverse leafspring lower arms, telescopic dampers
rear: rigid axle, transverse upper leaf-spring, trailing radius arms, telescopic dampers.
STEERING
worm and roller
turns lock to lock: 2.80.BRAKES
drum; swept area: front 76.3 sq in, 492 sq cm, rear 45 sq in, 290 sq cm
total 121.3 sq in, 782 sq cm.ELECTRICAL EQUIPMENT
12 V
42 Ah battery
300 W dynamo
DIMENSIONS AND WEIGHT
wheel base: 90.55 in, 230 cm
tracks: 47.24 in, 120 cm front, 48.82 in, 124 cm rear
length: 159.05 in, 404 cm
width: 61.42 in, 156 cm
height: 59.65 in, 151 cm
ground clearance: 7.87 in, 20 cm
weight: 1,912 1b, 867 kg
weight distribution: 48% front, 52% rear© Motor car History
-
FSO Syrena 105 Service Guide (1972-1983)
Fuel: mixture 1:30; oil
Gearbox and final drive 4 imp pt, 4.9 US pt, 2.3 1, SAE 90, change every 7,500 miles, 12,000 km
Coolant capacity: 12.3 imp pt, 14.8 US pt, 7 1.
Greasing: every 7,500 miles, 12,000 km, 29 points
Sparking plug: 1750 or 2250
Tyre pressure: front 23 psi, 1.6 atm, rear 23 psi, 1.6 atm.
Fuel tank: 7 imp gal, 9.2 US gal, 35 1.
Turning circle: 34.1 ft, 10.4 m
Width of rims: 4"
Tyres: 5.60 x 15.carrying capacity: 706 1b, 320 kg
