Dodge Monaco First generation
![]() | |
Production | 1964 to 1968 |
Assembly | Michigan, U.S. |
Class | Motor Car |
Body style | 4-door wagon |
Engine | 6.3 L-6.8 L V8 |
Transmission | 3-speed manual |
Wheelbase | 121 in (3,100 mm) |
Length | 213.3 in (5,420 mm) |
Width | 80 in (2,000 mm) |
Height | 56.4 in (1,430 mm) |
Introduction late in 1964 For model year 1965, Dodge launched the Dodge Monaco, first as a full-size two-door hardtop coupe.
History

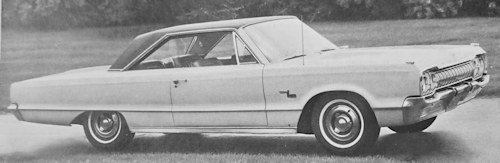

For model year 1965 Dodge introduced the Monaco, which was based on the full-size model Dodge Polara, but only as a two-door hardtop coupe with sophisticated equipment and the larger engines was available. Thought was the Monaco as a competitor to more luxury cars such as the Ford Thunderbird. The chassis was integral, the front suspension: independent, wishbones, lower trailing links, longitudinal torsion bars, anti-roll bar, telescopic dampers, at the rear rigid axle, semi-elliptic leafsprings, telescopic dampers.
For model year 1965 Dodge introduced as the flagship model of the Monaco 500, which was based on the full-size models Dodge Polara / Dodge 880, but only as a two-door hardtop coupe with sophisticated equipment and the larger engines was available. Thought was the Monaco as a competitor to personal luxury cars the middle price range such as the Pontiac Grand Prix and the Ford Thunderbird, the standard equipment included, inter alia, centre console, clock, three-spoke steering wheel, special badging and padded dashboard different taillight and grille. The Monaco was powered by a 6.3-liter V8 with 315 hp, a 6.8-liter with 340 hp or a seven-litre V8 with 365 hp the larger, more powerful engines were also available as options. Dodge sold 13,200 1965 models.
PERFORMANCE ENGINE CAPACITY 383 cu in, 6.3L
FUEL CONSUMPTION 14.1 mlimp gal, 11.8 ml US gal, 20 1 x 100 km - MAX SPEED 118 mph, 190 kmlh
max power (SAE): 315 hp at 4,400 rpm,max torque (SAE): 420 1b ft, 58 kg m at 2,800 rpm,max number of engine rpm: 4,800 rpm,power-weight ratio: 12.6 lblhp, 5.7 kg/hp

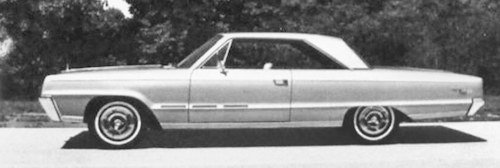

From 1966 there was other body styles. Dodge restructured its full-size model program. There was now a base line, the Polara, and a better-equipped line, the Monaco. In the Monaco series, which was available as a hardtop coupe, sedan with or without B-pillar and as five-door station wagon in the program, served the special hardtop coupe, now under the name Monaco 500, again as a top version but was no convertible. The engines 1966 were a 6.3-liter V8 with 270 or 325 hp (the latter in the Monaco 500 series) and a new 7.2-liter V8 with 365 hp available.

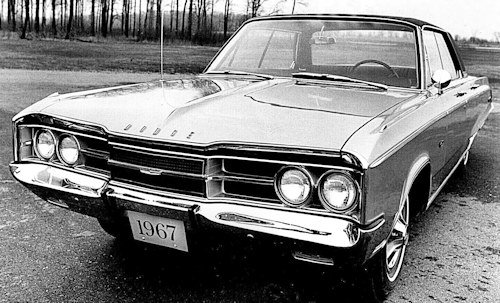

In 1967 received all-new sheet metal exterior facelifts to body, grill and chrome trim parts. Coupes got more fastback roof line, as well as 1968. In the same year, the two 6.3-liter V8 were given 290 and 300 hp.
In Canada, the "Monaco" name was applied for 1967 to all of the premium full-sized Dodge cars, replacing the Polara 880 at the top of the Dodge line. Taking the Monaco's place as a premium full-size model was the Monaco 500, which was available only as a two-door hardtop and convertible.
For 1968 there was little changes from previous year, before the next generation arrived.
Description
Technical
-
Dodge Monaco 1st gen Technical details and specifications (1964-1968)
ENGINE CAPACITY 383 cu in, 6.3L
front, 4 stroke
cylinders: 8, Vee-slanted at 900
bore and stroke: 4.25 x 3.38 in, 107.9 x 85.9 mm
engine capacity: 383 cu in, 6,276.22 cu cm
compression ratio: 10
cylinder block: cast iron
cylinder head: cast iron
crankshaft bearings: 5
valves: 2 per cylinder, overhead, in line, slanted at 450, push-rods and rockers, hydraulic tappets
camshafts: 1, at centre of vee
lubrication: rotary pump, full flow filter
lubricating system capacity: 8.27 imp pt, 10 US pt, 4.7 1
carburation: 1 Carter AFB 3855 S downdraught 4-barrel carburettor
fuel feed: mechanical pump
cooling system: waterTRANSMISSION
driving wheels: rear
clutch: single dry plate
gearbox: mechanical; gears: 3 + reverse
synchromesh gears: II and III
gearbox ratios: 1 2.550, II 1.490, III 1, rev 3.340
gear lever: steering column
final drive: hypoid bevel axleCHASSIS
integral
front suspension: independent, wishbones, lower trailing links, longitudinal torsion bars, anti-roll bar, telescopic dampers
rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.STEERING
recirculating ball
turns of steering wheel lock to lock: 5.30.
turning circle (between walls): 46.2 ft, 14.1 mBRAKES
drum; area rubbed by linings: total 328.30 sq in, 2,117.53 sq cm.ELECTRICAL EQUIPMENT
voltage: 12 V
battery: 70 Ah
alternator: 35 Ah
ignition distributor: Chrysler
headlamps: 4DIMENSIONS AND WEIGHT
wheel base: 121 in, 3,073 mm
front track: 62 in, 1,575 mm
rear track: 60.70 in, 1,542 mm
overall length: 212.30 in, 5,392 mm
overal width: 79 in, 2,007 mm
overall height: 54.90 in, 1,394 mm
ground clearance: 5.80 in, 147 mm
dry weight: 3,975 1b, 1,803 kg© Motor car History
-
Dodge Monaco 1st gen Service Guide (1964-1968)
ENGINE CAPACITY 383 cu in, 6.3L
fuel: 95-100 oct petrol
engine oil: 6.69 imp pt, 8 US pt, 3.8 1, SAE 5W-20 (winter) IOW-30 (summer), change every 4,000 miles, 6,400 km
gearbox oil: 4.22 imp pt, 5 US pt, 2.4 1, automatic transmission fluid type AQ-ATF Suffix A or SAE 140, change every 32,000 miles, 51,500 km
final drive oil: 3.34 imp pt, 4 US pt. 1.9 1, SAE 80-90, change every 32,000 miles, 51,500 km
greasing: every 32,000 miles, 51,500 km
cooling system capacity: 28.34 imp pt, 34 US pt, 16.1 1.
valve timing: inlet opens 13° before tdc and closes 59° after bdc, exhaust opens 59° before bdc and closes 13° after tdc
tyre pressure (medium load): front 24 psi, 1.7 atm, rear 22 psi, 1.5 atm.
tyres: 8.25 x 14
fuel tank capacity: 20.9 imp gal, 25 US gal, 9.5 1.
carrying capacity: 882 1b, 400 kg© Motor car History
