Dodge WC series
1941-1945 | |
---|---|
![]() | |
Type | 1⁄2 ton (454kg), 3⁄4 ton (680kg), and 11⁄2 ton (1,361k 4x4 trucks |
Place of origin | United States |
Production history | |
Manufacturer | Dodge/Fargo |
Produced | 1941-1945 |
Number built | More than 255,000 |
Variants | Various (see text) |
Specifications (WC-52) | |
Weight | 5,550 lb (2,520 kg) empty |
Length | 1761⁄2 in (4.48 m) |
Width | 823⁄4 in (2.10 m) |
Height | 817⁄8 in (2.08 m) |
Engine | Dodge T-214 76 hp (57 kW) |
Suspension | Beam axles on leaf springs |
Operational range | 240 mi (386.2 km) |
Speed | 54 mph (87 km/h) |

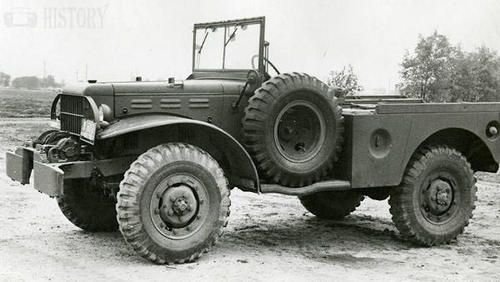

The Dodge WC series was a range of light military trucks produced by Dodge during World War II. The series included weapon carriers, telephone installation trucks, ambulances, reconnaissance vehicles, mobile workshops and command cars. They were replaced after the war by the Dodge M-series vehicles. WC was a Dodge model code: W for 1941 and C for half-ton rating. The C code was retained for the ¾ ton and 1½ ton 6×6 Dodges.
History and design
Dodge began producing light trucks immediately upon its formation in 1914. For the first few years these were based largely on the existing passenger cars, later specific chassis and body designs were used. Light- and medium-duty models were offered first, then a heavy-duty range was added during the 1930s and 1940s. Dodge produced its first prototypes of dedicated military trucks in late 1939: the 1/2 ton 4x4 VC series. Production of the VC series started in 1940. At the outset of World War II, Dodge produced the G-505 WC ½ ton series of military light trucks in 38 individual models, thousands of some models were produced, while only a few of some others were made. The WC ½ ton trucks replaced the 1940 VC-1 to VC-6 ½ton Dodge trucks which were also part of the G505 series. 79,771 of the ½ ton trucks were produced during late 1940–1942 under War Department contracts. WC models 1 to 50 were part of the 1/2 ton range and were 80% interchangeable in service parts with the later 3/4 ton models.
Common features of the 1/2 ton trucks were:
- Drive: 4×4
- Wheelbase: 116 in (123 in for ambulances)
- Track width: 59.375 in
- Tires: 7.50x16
- Brakes: Hydraulic
- Engine: 6 cyl, in-line, L-head
- Transmission: 4 forward/1 reverse, manual
- Transfer case: Single speed
The Dodge G-502 ¾ ton 4×4 trucks were first introduced in late 1941. Standard vehicles in the ¾ ton 4×4 class were the WC-51 / WC-52 Weapons Carrier, Telephone Installation Trucks, WC-53 Carryall, and the WC-54 Ambulance. In the cargo trucks, the WC51 was identical to the WC52 but did not have the front bumper-mounted winch.
Models
The table includes data on the relation between identification numbers and types of body fitted. For comparison, earlier Dodge military trucks of the 1/2 ton range are included.
T202 | T203 | T207 | T211 | T214 | T215 | T112 | T118 | |
Pick-up (closed cab) | VC3 | VF401/VF402, VF404/VF405 | WC1 | WC12, WC14 | WC40, WC25, WC47 | WC38, WC47 | ||
Pick-up (open cab) | VC5 | WC3/WC4 | WC13 | WC51/WC52 | WC21, WC22 | |||
Pick-up (no rear seats) | VC4 | WC5 | ||||||
Carry-all | VC6 | WC10 | WC17 | WC53 | WC26, WC48 | WC36, WC48 | ||
Dump truck | VF403, VF406 | |||||||
Reconnaissance | VC1 | WC6/WC7 | WC15 | WC56/WC57 | WC23/WC24 | |||
Radio truck | VC2 | WC8 | WC16 | WC58/WC64 WC54 | WC25 | |||
Van | WC11 | WC19 | WC42, WC49 | WC37, WC49 | ||||
Mobile workshop | WC60 | WC41 | ||||||
Maintenance | WC60 | WC43 | ||||||
Portee | WC55 | |||||||
Ambulance | VF407 | WC9 | WC18 | WC54 | WC27 | |||
Telephone line installation | WC59 | WC43 | WC 39, WC50 | |||||
Closed cab (without body) | WC20 | WC41 | WF31 |
In the case of vehicle identifications separated by a slash, the first number refers to a vehicle not fitted with a winch, and the second to a vehicle fitted with a winch. Numbers separated by a comma indicate similar models but with different secondary details.
Engines
Vehicle code | Bore (mm) | Stroke (mm) | Capacity (cm3) | Compression ratio | Torque (N m) | Power (HP) |
T202 | 79.4 | 111.1 | 3294 | 6.7:1 | 208 | 79 |
T203 | 85.7 | 114.3 | 3957 | 6.5:1 | 255 | 99 |
T207 | 82.6 | 111.1 | 3567 | 6.5:1 | 222 | 78 |
T211 | 82.6 | 111.1 | 3567 | 6.5:1 | 222 | 78 |
T214 | 82.6 | 117.5 | 3772 | 6.7:1 | 244 | 92 |
T215 | 82.6 | 117.5 | 3772 | 6.7:1 | 249 | 99 |
T223 | 82.6 | 117.5 | 3772 | 6.7:1 | 244 | 92 |
Model descriptions
1/2 ton series
WC1, WC5, WC12, WC14, WC40
Closed cab, two seater pickups with a nominal carrying capacity of a 1,000 lb (450 kg).
WC3, WC13, WC21
Weapon carriers, two seater pickups with open cab. The open cab pickups could be fitted with an optional M24 machine gun mount,which bolted across the front of the bed. The mount could carry the M1918 Browning Automatic Rifle, as well as the M1919 Browning machine gun, and the M2 Browning machine gun.
- Length: 181- 1/16 inches
- Height: with top 88-1/8 inches
- Weight: 4440 net
- Width: 75-13/16 inches
- Height:
- Payload: 1300 LB
WC4, WC22
Open cab weapons carrier, with Braden MU winch, and transverse seats, designed to tow the M3 anti-tank cannon as well as carry the gun crew and ammunition. This type was usually issued to early tank destroyer units. 5570 built.
- Length: 191- 5/16 inches
- Height: with top 88-1/8 inches
- Weight: 4775 net
- Width: 75-13/16 inches
- Height:
- Payload: 1000 LB
WC9, WC18, WC27
Entering production during 1941 to early 1942, they were specifically designed to serve as military ambulances. These early variants are distinguishable from the later ones by having a curved radiator grille, while the later ones (WC51 onwards) featured a flat grille. These versions were given a longer 123 in (3,100 mm) wheelbase.
- Length: 195 inches
- Height: 90 inches
- Weight: 5340 net
- Width: 75-13/16 inches
- Height:
- Payload: 1300 LB
WC10, WC17, WC26, WC36, WC48
Carryall trucks with a nominal carrying capacity of a 1,000 lb (450 kg).
WC11, WC19, WC42
Panel trucks carrying radio and communication equipment.
WC6, WC8, WC15, WC16, WC23
Command cars.
WC25
Command car with radio 12 volt
WC7, WC24
Command car with winch
WC39, WC43, WC50
These models were built as signals trucks, designed to install and repair telephone lines, and were also known by the U.S. Signals Corps as the K-50 truck.
WC41
Fitted with dual rear tires. Mostly employed as an emergency repair truck whose purpose was to provide mobile facilities for emergency ordnance repair. Other types of bodies were produced, such as an oil service vehicle. 902 of these chassis were built.
Maintenance
