Chevrolet Series FB
 |
|
|
Production period: |
1919 to 1922 |
|
Body versions : |
Touring car , roadster ,sedan , coupe |
|
Engines: |
Gasoline engine : 3.7 liters (27 kW) |
|
Wheelbase: |
2794 mm |
|
Curb weight: |
1196-1336 kg |

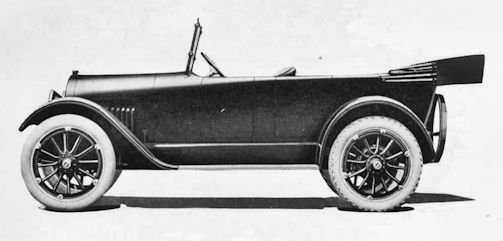

In the model year 1919, the series FA was renamed FB series. Initially, 1514 pieces of the 2-door FA sedans under the name FB -40 were further developed. The other vehicles of the FB series had a chassis with 2794 mm wheelbase. These were a 2-seater roadster with 2 doors ( model FB-20 ), a 3-seater coupe with 2 doors ( model FB-30 ), a 4-seater sedan with 4 doors ( model FB-40 ) and a 5- seated tourer with 4 doors ( model FB-50 ) shown above. Engine, drive and brakes remained the same. The selling prices were between 1110, - and 1685, - US $.
In 1920, the styling was revised. Like the lower-priced models of the 490 series , the FB received sweeping lines around the bulkhead. With these changes, the models were manufactured until 1922. Last year prices fell to 865, - to 1395, - US $.
A total of 74,140 FB series vehicles were built in four years. 1923 accounted for the series without replacement.
Technical
-
COLOR - Body, dark green; running gear, black
SEATING CAPACITY - Five
POSITION OF DRIVER - Left side
WHEELBASE - 110 inches
GAUGE - 56 inches
WHEELS - Wood
FRONT TIRES - 33 x 4 inches
REAR TIRES - 33 x 4 inches
SERVICE BRAKE - Contracting on rear wheels
EMERGENCY BRAKE - Expanding on rear wheels
CYLINDERS - Four
ARRANGED - Vertically
CAST - En bloc
HORSEPOWER (N.A.C.C.) - 21.75
BORE AND STROKE - 3 1/1 1/6 x 5 1/4
LUBRICATION - Splash with circulating pump
RADIATOR - Cellular
COOLING - Water pump
IGNITION - High tension magneto and storage battery
STARTING SYSTEM - Two unit
STARTER OPERATED - Gear to fly wheel
LIGHTING SYSTEM - Electric
VOLTAGES - Six to eight
WIRING SYSTEM - Single
GASOLINE SYSTEM - Vacuum
CLUTCH - Cone
TRANSMISSION - Selective sliding
GEAR CHANGES - Three forward, one reverse
DRIVE - Spiral bevel
REAR AXLE - floating
STEERING GEAR - Spur and gear© Motor car History
