Chevrolet Chevelle Second generation

Chevrolet Chevelle Second generation

Make

Chevrolet

Production

1967 to 1972

Body style

2-door hardtop
2-door coupe
2-door convertible
2-door sedan
4-door sedan
4-door hardtop
4-door station wagon
2-door coupé utility

Engine

230 cu in (3.8 L) Turbo-Thrift I6
250 cu in (4.1 L) Turbo-Thrift I6
307 cu in (5.0 L) Small-Block V8
327 cu in (5.4 L) Small-Block V8
350 cu in (5.7 L) Small-Block V8
396 cu in (6.5 L) Big-Block V8
400 cu in (6.6 L) Small-Block V8
402 cu in (6.6 L) Big-Block V8
427 cu in (7.0 L) Big-Block V8
454 cu in (7.4 L) Big-Block V8

Transmission

3-speed manual
4-speed manual
2-speed automatic
3-speed automatic

Wheelbase

112 in (2,845 mm) Coupe
116 in (2,946 mm) Sedan/Wagon

Length

201.2 in (5,110 mm) (sedan)
206.5 in (5,245 mm) (wagon)
197.2 in (5,009 mm) (coupe)

Width

75.4 in (1,915 mm)

Height

53.2 in (1,351 mm) (sedan)
55.1 in (1,400 mm) (wagon)
52.6 in (1,336 mm) (coupe)

Curb weight

3,520 lb (1,597 kg)

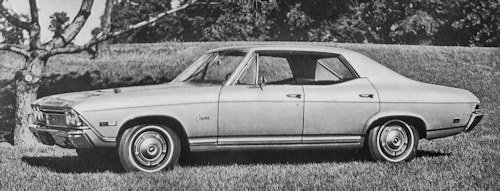

The Completely revised, Second generation Chevelle was presented in the 1968 model year.

History

The wheelbase of sedans, coupes and convertibles had shrunk by 3 "while the station wagons had a wheelbase about 1" longer. Completely new was also the 5-door station wagon Chevelle Nomad Wagon at the 300 and the 300 Deluxe were introduced. The name should remember the 1955 Chevrolet's three-door top model. In addition to this station wagon, the 300 only had a 2-door coupe, the 300 Deluxe additionally a 2-door hardtop coupe and a 4-door sedan. The Malibu, the Concours and the SS-396 had the same range of models as last year.

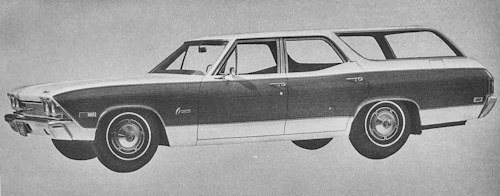

Chevrolet-Chevelle station wagon

The following year, the base model Chevelle 300 and the luxury combination Chevelle Concours fell away. Simplest execution was now the Chevelle 300 Deluxe, while the Chevelle Malibu continued to function as a top model. The SS-396 was, as in 1964, just a sports package that could be ordered for all Chevelle Malibu with V8 engine. The Nomad, taken from the previous year series Chevelle 300, wore as the only model within the Chevelle 300 Deluxe series still the serial numbers 131/132. The other station wagons of the series received the name Greenbrier series 133/134 , formerly for a bus of Corvair - Row was used. These combinations were available with either six or nine seats. Three luxury options became available in March 1968 for the 4-door sedan, the 4-door sport sedan and the hardtop coupe with sound insulation, and a padded instrument panel with woodgrain effect accents and all-vinyl color-keyed interiors.Also, the Chevelle Malibu had now 5-door station wagon with six or nine seats, the Chevelle Malibu Estate Wagon were called. In addition, there was still the convertible, the two hardtop models and the 4-door sedan.

Only minor changes for 1969.In 1970,  body revisions gave the bodies a more styling, and interiors were also redesigned the Chevelle developed a particularly luxurious sports coupé, which formed its own series as Monte Carlo . It was on the trim level of the again offered Concours Estate Wagon Series 138 , which featured as a six- or nine-seater, exclusively with V8 engines, the top of the range. Among them ranked the Chevelle Malibu, whose station wagons were now called Concours Wagon . The 2-door hardtop coupe became a sports coupe with B-pillars. In the middle segment of the Chevelle was offered (the addition 300 Deluxe accounted for), which was available as a five-door Greenbrier station wagon with six or nine seats, as a two-door coupe and a four-door sedan. The simplest model was the Nomad station wagon.

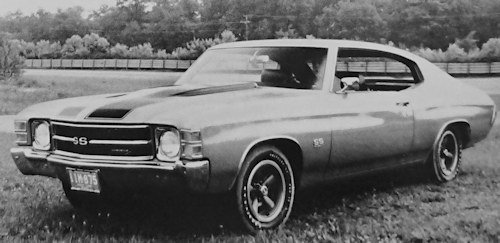

Chevrolet Chevelle 2nd gen SS

In 1971, the Chevelle  retained the 1970 body, it was treated to new front-end and rear-end styling new heavier bumpers and single headlights in the heavily contoured front. The front flashing lights sat together with the parking lights in their own housings on the protruding vehicle corners. The model range remained unchanged.SS had new dual round taillights were integral with the back bumper

In 1972, the appearance of the Chevelle remained almost unchanged, only the grille received a revised twin-bar grille two instead of a horizontal chrome trim. New were the series designations, which no longer distinguish between six-cylinder and V8 engine: 1B for the Nomad station wagon, 1C for the Chevelle sub-series, 1D for the Malibu sub-series and 1H for the luxury Concours Estate Wagon.

In five years, about 2,085,000 Chevelle of the 2nd generation.

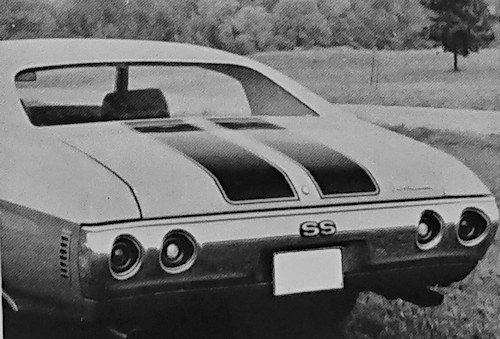

Chevrolet Chevelle 2nd gen SS 1971

Related items
Vehicles launched in 1968 | American 1970s | American 1960s | Fast and Furious

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Service
  • Service instructions Chevrolet Chevelle 2nd gen (1968-1972)

    307 cu in

    fuel: 93 oct petrol
    engine sump oil: 8.27 imp pt, 10 US pt, 4.7 1, SAE 5W-20 (winter) 1OW-30 (summer), change every 6,000 miles, 9,700 km
    gearbox oil: 2.46 imp pt. 3 US pt, 1.4 1, SAE 80
    final drive oil: 2.99 imp pt, 3.50 US pt, 1.7 1, SAE 80
    greasing: every 6,000 miles, 9,700 km
    valve timing: inlet opens 28° before tdc and closes 72° after bdc, exhaust opens 78° before bdc and closes 30° after tdc
    width of rims: 5"; tyres: 7.75 x 14
    normal tyre pressure: front 22 psi, 1.5 atm, rear 30 psi, 2.1 atm.
    fuel tank capacity: 16.7 imp gal, 20 US gal, 76 1.

    © Motor car History

Technical
  • Chevrolet Chevelle 2nd gen Technical details and specifications (1968-1972)

    ENGINE 307 cu in
    front, 4 stroke,
    cyiinciers: 8, Vee-slanted at 90°
    bore and stroke: 3.88 x 3.26 in, 98.5 x 82.8 mm
    engine capacity: 307 cu in, 5,030.81 cu cm
    compression ratio: 9
    cylinder block: cast iron
    cylinder head: cast iron
    crankshaft bearings: 5
    valves: 2 per cylinder, overhead, in line, push-rods and rockers, hydraulic tappets
    cam- shafts: 1, at centre of Vee
    lubrication: gear pump, full flow filter
    lubricating system capacity: 8.27 imp pt, 10 US pt, 4.71
    carburation: 1 Rochester 7028101 downdraught twin barrel carburettor
    fuel feed: mechanical pump
    cooling system : water cooling

    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate (diaphragm), semi-centrifugal
    gearbox: mechanical
    gears: 3 + reverse
    synchromesh gears: I, II, III; gearbox ratios: I 2.540, II 1.500, III 1, rev 2.630
    gear lever: steering column
    final drive: hypoid bevel
    axle ratio: 3.080.

    CHASSIS
    perimeter box-type
    front suspension: independent, wishbones, lower trailing links, coil springs, anti-roll bar, telescopic dampers
    rear suspension: rigid axle, lower trailing arms, upper oblique torque arms, coil springs, telescopic

    STEERING
    recirculating ball
    turns of steering wheel lock to lock: 5.38.
    turning circle (between walls): 45 ft, 13.7 m

    BRAKES
    drum, dual circuit

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 45 Ah
    generator type: alternator, 37 Ah
    ignition distributor: Delco-Remy.

    DIMENSIONS AND WEIGHT station wagon 1968
    wheel base: 116 in, 2,946 mm
    front track: 59 in, 1,499 mm
    rear track: 59 in, 1,499 mm
    overall length: 207.20 in, 5,263 mm
    overall width: 76 in, 1,930 mm
    overall height: 54.30 in, 1,379 mm
    ground clearance: 6 in, 152 mm
    dry weight: 3,680 1b, 1,669 kg
    distribution of weight: 48.9% front axle, 51.1% rear axle

    © Motor car History

    Overview

    Construction year

    designation

    Ser. R6

    Ser. V8

    1968

    Chevelle 300

    131

    132



    Chevelle 300 Deluxe

    133

    134



    Chevelle Malibu

    135

    136



    Chevelle Concours

    137

    138



    Chevelle SS-396



    138

    1969

    Chevelle 300 Deluxe Nomad

    131

    132



    Chevelle 300 Deluxe

    133

    134



    Chevelle Malibu

    135

    136

    1970

    Chevelle Nomad

    131

    132



    Chevelle

    133

    134



    Chevelle Malibu

    135

    136



    Chevelle Concours Estate Wagon



    138

    1971

    Chevelle Nomad

    131

    132



    Chevelle

    133

    134



    Chevelle Malibu

    135

    136



    Chevelle Concours Estate Wagon



    138

    1972

    Chevelle Nomad

    1B

    1B



    Chevelle

    1C

    1C



    Chevelle Malibu

    1D

    1D



    Chevelle Concours Estate Wagon



    1H
