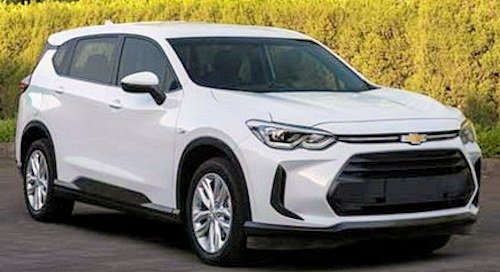

Chevrolet Orlando second generation

Chevrolet Orlando second generation

Production period:

since 2018

Class :

Motor car

Body versions :

SUV station wagon

Engines:

Gasoline : 1.3 liters (120 kW)

Length:

4684 mm

Width:

1627 mm

Height:

1807 mm

Wheelbase :

2796 mm

Curb weight :

1460-1495 kg



The second-generation Chevrolet Orlando is built exclusively by Shanghai GM for the Chinese market. Sold since September 2018.

History

The vehicle was formally debuted at the Chengdu Motor Show in late August 2018 and went on sale the following month. It is one of the first vehicles of Chevrolet in China that is offered in the equipment variant "Redline". At the Auto Shanghai2017 , the concept car was Chevrolet FNR-X presented on which was oriented primarily in the design of the vehicle front.

The vehicle is powered by a supercharged 1.3-liter gasoline engine with a maximum output of 120 kW (163 hp). The maximum torque of the engine is 230 Nm and the maximum speed of the vehicle 190 km / h. As standard, the Orlando has a 6-speed manual transmission , optional 6- speed automatic transmission is available.

The five-door car is 4684 mm long, 1627 mm wide, 1807 mm high, and as a five or seven-seater available. The wheelbase is 2796 mm. It has standard LED headlights and tail lights. Also a glass panorama roof is available. The luggage compartment volume is 109 l when the seats of the three rows are placed 479 l when the third row of seats is folded and 1520 l when both the second (backrest width ratio 40:60) and the third row of seats (backrest width ratio 50:50) folded.



Related items
SUV | Vehicles launched in 2018

Technical

  • Chevrolet Orlando 2nd gen Technical data  (2018-)

    Construction period

    since 09/2018

    engine type

    R3 - gasoline engine

    engine charging

    turbocharger

    compression ratio

    9.5: 1

    capacity

    1349 cc

    Max. Power at min -1

    120 kW (163 hp) / 5500

    Max. Torque at min -1

    230 Nm / 1800-4400

    Drive, standard

    front-wheel drive

    Gearbox, standard

    6-speed manual transmission

    Gear, optional

    6- speed automatic transmission

    top speed

    190 km / h
    [190 km / h]

    Acceleration, 0-100 km / h

    k A.
    [9.7 s]

    Fuel consumption to 100 km
    , combined

    6.3 l super.
    [6,7 l super]

    tare

    1460 kg
    [1495 kg]

    tank capacity

    45 l
