Terradyne Armored Vehicles
Toronto , Ontario , Canada .
Teradyne Armoured Vehicles from Toronto, Ontario, Canada. Produce all terrain military type vehicles. The range includes the Light armored patrol vehicle (LAPV) the Multi-purpose vehicle (MPV) the Rapid patrol vehicle (RPV) and Civilian limited edition vehicle (CIV).Built on a versatile armoured vehicles platform that are design and manufactured to comply with the automotive industry standards. Built for military services and also available to civilian buyers.

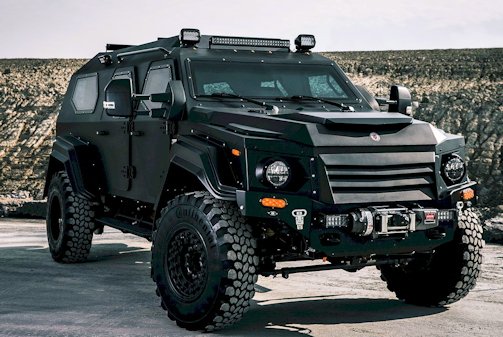

The Light Armored Patrol Vehicle (LAPV) is a military vehicle belonging to the type of vehicle light four-wheel drive, protected patrol vehicles. The protection complies with the NATO guideline STANAG 4569 Level 3 or the CEN B7. The LAPV is made on the basis of the Ford (USA) F550 Pick Up. It is powered by a Ford (USA) V8 diesel with 6.4 liters displacement (the manufacturer's name: Power Stroke V8 DI Turbo Diesel ). The power is given as 330 bhp , around 246 kW or 334 hp. This is then connected to a six- speed automatic transmission .

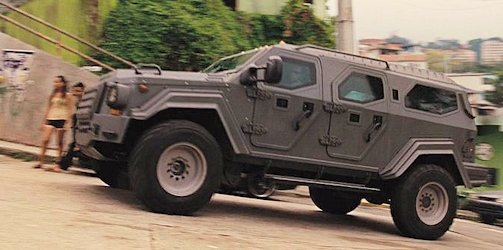

In the movie Fast & Furious Five (2011), Agent Hobbs uses a LAPV Gurkha as a company car. In addition, the vehicle appears in the film Madagascar 3: Escape through Europe (2012). In addition, it is also shown in the television series Arrow .
The fictional vehicles HVY Insurgent and HVY Insurgent Pickup are based on the Gurkha LAPV in the Grand Theft Auto V Online video game .You can also buy and tune the Gurkha LAPV in the Openworld car racing games Forza Horizon 3 and Forza Horizon 4 .
Technical
-
Terradyne Armored Vehicles Technical data
(LAPV) Gurkha
Engine: 6.7 L V8 turbo diesel. 330 HP, 750 lb-ft of torque
Transmission: 6 speed automatic
Driveline: 4x4 shift on the fly. 4.88 ratio limited slip differential
Fuel capacity: 40 gal / 151 L
GVW: 19,500 lbs / 8,845 Kg
Speed: tire speed rated @ 130 km/h / 81 MpH
Braking: 4 wheel vented disc ABS
Armoring: B7/STANAG 2Dimensions:
Seats: 2 + 6
Wheelbase: 3581 mm
Height (without special bodies): 2457 mm
Length: 5664 mm
Width: 2387 mm
Total weight: 8618 kg
Vehicle weight: 16,000 lbs / 7258 Kg – option dependentTop speed: 155 km / h
Tank capacity: 151 liters, resulting in a range of up to 600 km
Tires: Michelin XZL and Continental in the dimension 20 × 11 "with emergency running characteristics (runflat)
Further equipment: power steering, air conditioning
MPV
Engine: 6.7 L V8 turbo diesel. 330 HP, 750 lb-ft of torque
Transmission: 6 speed automatic
Driveline: 4x4 shift on the fly. 4.88 ratio limited slip differential
Fuel capacity: 40 gal / 151 L
GVW: 19,500 lbs / 8,845 Kg
Speed: tire speed rated @ 130 km/h / 81 MpH
Braking: 4 wheel vented disc ABS
Vehicle weight: 16,500 lbs / 7484 Kg – option dependent
Armoring: B7/STANAG 2
Dimensions:
LOA = 250 1/4" [6356.8 mm]
WOA = 96 5/8" [2454.2 mm]
HOA = 103 11/16" [2633.9 mm]RPV
Engine: 6.7 L V8 turbo diesel. 330 HP, 750 lb-ft of torque
Transmission: 6 speed automatic
Driveline: 4x4 shift on the fly. 4.88 ratio limited slip differential
Fuel capacity: 40 gal / 151 L
GVW: 19,500 lbs / 8,845 Kg
Speed: tire speed rated @ 130 km/h / 81 MpH
Braking: 4 wheel vented disc ABS
Vehicle weight: 15,500 lbs / 7031 Kg – option dependent
Armoring: B7/STANAG 2
Dimensions:
LOA = 244 5/8" [6207.5 mm]
WOA = 96 5/8" [2454.2 mm]
HOA =98 3/8" [2499.2 mm]CIV
Engine: 6.7 L V8 turbo diesel. 330 HP, 750 lb-ft of torque
Transmission: 6 speed automatic
Driveline: 4x4 shift on the fly. 4.88 ratio limited slip differential
Fuel capacity: 40 gal / 151 L
GVW: Up to 19,500 lbs / 8,845 Kg
Speed: tire speed rated @ 130 km/h / 81 MpH
Braking: 4 wheel vented disc ABS
Vehicle weight: Up to 13,500 lbs / 6123 Kg - option dependent
Armoring: Optional
Dimensions:
LOA = 244 5/8" [6207.5 mm]
WOA = 96 5/8" [2454.2 mm]
HOA =98 3/8" [2499.2 mm]
