Info
Vauxhall Corsa B
(1993 to 2000) | |
---|---|
![]() | |
Overview | |
Also called | Buick Sail Chevrolet Classic Chevrolet Corsa Holden Barina Opel Vita Vauxhall Corsa |
Designer | Hideo Kodoma |
Body and chassis | |
Body style | 3 and 5-door hatchback 4-door saloon 5-door estate car 2-door coupé utility (pickup) |
Platform | GM4200 platform |
Powertrain | |
Engine |
|
Transmission | 4 and 5-speed manual 4-speed automatic |
Dimensions | |
Wheelbase | 2,443 mm (96.2 in) (hatchback, saloon, estate car) 2,480 mm (97.6 in) (pickup) |
Length | 3,729 mm (146.8 in) (hatchback, 1992–1998) 3,741 mm (147.3 in) (hatchback, 1998–2000) 4,026 mm (158.5 in) (saloon, estate car) 4,153 mm (163.5 in) (pickup) |
Width | 1,610 mm (63.4 in) |
Height | 1,440 mm (56.7 in) |
;
In April 1993, the Corsa B was unveiled, and in the United Kingdom, Vauxhall dropped the Nova name, with the car now being known as the Corsa. In May 1994, it was launched by Holden in Australia, as the Barina, replacing a version of the Suzuki Swift sold under that name. This proved a success, and was the first Spanish-built car to be sold in significant volumes in the Australian market.
Four-cylinder power came from 1.2, 1.4, and 1.6 litre Family 1 petrol engines, as well as an economical 1.5 L turbodiesel engine. Most cars received a five-speed manual transmission, although a four-speed automatic was also available with certain engines. In the first few years, a four-speed manual was also available coupled to the smallest 1.2-litre engine. Unlike the previous model, there was no saloon version, but one was designed in Brazil for the Latin American market, as saloons were much preferred to hatchbacks. This was also introduced in South Africa and India. An estate car, panel van and pickup truck were also introduced, and a convertible version was produced for the Australian market, called the Holden Barina Cabrio. The estate car version was sold in some European markets (including Italy), badged as an Opel. The Corsa also spawned a small coupé called Opel Tigra. 1.0 L 3-cylinder and 1.2 L 4-cylinder Family 0 economy version was launched in 1997, and a Lotus-tuned suspension was added as well as an exterior refresh.
- Performance:1.2L
Vmax (factory) 145 km/h, V @ 1000/min
39.2 km/h; 0—100 km/h 19.5 s
weight/power. 25.6 kg/kW (18.8 kg/ea) - Performance:1.4 16V
Vmax (factory) 180 km/h, V @ 1000/min
31.1 km/h; 0—100 km/h 11 sec
weight/power. 13.7 kg/kW (10.1 kg/ea). - Performance:1.6 16V
Vmax (factory) 192 km/h, V @ 1000/min
31.7 km/h; 0—100 km/h 9.8 s - Performance:1.5 - 50 hp diesel
37 kW (50 hp) to 4800/min, 24.9 kW/L (33.8 ch/L)
90 Nm (9.2 mkp) at 2400/min
Vmax (factory) 150 km/h, V 1000/min
37 km/h; 0-100 km/h 19.5 s
weight/power. 24.6 kg/kW (18 2 kg/ea)

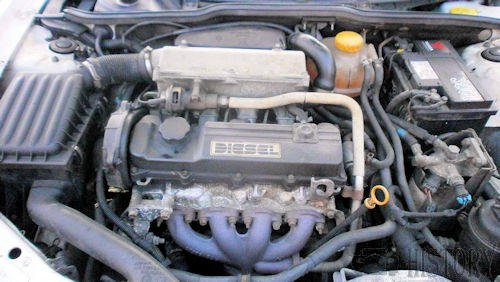

vauxhall corsa 1.7 d engine
The saloon model was built and sold in Latin America as Chevrolet Corsa Classic until 2010. A budget version introduced for the Brazilian market, the Chevrolet Celta, has bodywork resembling the late 1990s Vectra and Astra. The Celta was sold in Argentina as the Suzuki Fun for a certain period. In 2011, GM stopped representing Suzuki in Argentina, so the Celta reverted to its original name under the Chevrolet brand. Argentinian production began in September 1997, where it was the first locally built Chevrolet passenger car since 1978. The Latin American Corsa received a light facelift in 1999, with smoother bumpers, and from April 2002 (when the new Corsa II was introduced) the Corsa B began being marketed as the "Corsa Classic" until 2010 where it became the "Classic" when the Corsa B-derived Chevrolet Sail and Chevrolet Celta replaced it.
The saloon and estate car versions were produced in China by Shanghai GM as Buick Sail and Buick Sail S-RV, respectively from June 2001 to February 2005. That year they received a facelift and became known as the Chevrolet Sail and SRV. In September 2006, Chile became the first country outside China to receive the Chinese-assembled Sail; it is called the Chevrolet Corsa Plus, available as a four-door saloon with a 1.6 L 92 PS (68 kW) engine. The Corsa Plus includes dual front airbags, anti-lock brakes, air conditioning, electric windows and central locking as standard equipment.
In India, the hatchback, saloon and estate car versions were sold as the Corsa Sail, Corsa (or Corsa Joy) and Corsa Swing respectively until the end of 2005. The hatchback model was still being produced, and extensively marketed in South Africa as the Corsa Lite under the Opel branding until 2009 at which point it was discontinued.
Corsa SXi 1.2 16v Performance
Power | 64 bhp |
---|---|
Top Speed | 101 mph |
0-60 mph | 13 secs |
Torque | 110 Nm, 81 ft-lb |
CO2 Emissions | 156 g/km |
Euro Emissions Standard | 2 |
Miles Per Tank | 435 miles |
Engine Size | 1199cc |
---|---|
Cylinders | 4 |
Valves | 16 |
Fuel Type | Petrol |
Transmission | Manual |
Gearbox | 5 Speed |
Drivetrain | Front wheel drive |
In Thailand, Corsa available as Opel and fuel injected 8V 1.4-liter engine and "Joy" and "Swing" variants, both available with 3 or 5-door and manual or automatic.
Safety
The Corsa was updated in 1997 resulting in different styling options and better safety features:
Mexico
Names and markets
- Opel Corsa – Europe (except Britain)
- Vauxhall Corsa – United Kingdom
- Buick Sail – China, until February 2005
- Chevrolet Corsa – Latin America (Opel Corsa in Chile)
- Chevrolet Corsa Classic – South America, after the release of the Corsa C
- Chevrolet Classic – Brazil, since 2005; Argentina, since 2010
- Holden Barina – Australia and New Zealand (was replaced by the Daewoo Kalos from 2005)
- Opel Corsa Lite and Opel Corsa Classic – South Africa, for the hatchback and the estate car version respectively
- Opel Corsa Sail and Opel Corsa Swing – India, for the hatchback and the estate car version respectively
- Opel Vita – Japan (Toyota already registered the Corsa name for one of their domestic models, the Toyota Tercel)
- Chevrolet Chevy – Mexico, for the 2004 Corsa-derived Chevy C2, facelifted in late 2008 as a 2009 model year. It was discontinued in spring 2012.
- Derived versions
- Chevrolet Sail – China, since 2005. A new version was released in 2010.
- Chevrolet Classic – Argentina and Brazil, since 2011, for the Chevrolet Sail
- Chevrolet Corsa Plus – Chile, for the Chinese built Chevrolet Sail
- Chevrolet Celta and Chevrolet Prisma – South America, for the hatchback and saloon version respectively
- Chevrolet Monza for the 4 door (sedan) edition of the Chevrolet Chevy. Discontinued in spring 2012.
- Suzuki Fun – Argentina, for the Corsa-derived Chevrolet Celta. Discontinued in 2011. Name switched to Chevrolet Celta.
Technical
-
Vauxhall Corsa Hatchback Specs & Dimensions from 1993 to 2000
DIMENSIONS AND WEIGHT:
wheelbase 244.5 cm
track 138.5/139 cm
ground clearance 14 cm
boot 260/1050 dm3
height. 143 cm.ENGINE: 1.2 - 45 hp
Fuel Injection
Engine: (ECE), 4 cyl. inline
Engine capacity: 1195 cm3
compression ratio: 10:1
33 kW (45 hp) to 4600/min
1 overhead cams (toothed belt)
5-bearing crankshaft
single-point electron injection
36 Ah battery
55 A alternator
Water Cooled 5.9 L.
Fuel tank. 46 LEngine: 1.4 16V - 90 hp
4 cyl. inline
Bore and stroke: 77.0x73.4
Engine capacity:1389 cm3
compression ratio: 10.5:1
66 kW (90 ch) to 6000/min
4-valve 2 overhead camshafts
Electronical injection
Battery 44 Ah
water 5.6 L.Engine: 1.6 16V - 106 hp
Fuel Injection
4 cyl. Inline
Engine capacity: 1598 cm3
compression ratio: 10.5:1
4-valve 2 Overhead camshafts with electronic injection
44 Ah battery
70 amp alternator
Water 5.6 LnEngine: 1.5 - 50 hp diesel
4 cyl. inline
compression ratio: 23:1
diesel fuel.
Isuzu 4EC1; diesel with turbulence chamber
oil 3.75 L
injection pump, Bosch VE.
60 Ah battery
70 amp alternator
water 6 L.Engine: 1.5 - 67 hp turbodiesel
4 cyl. Online
Bore and stroke: 75X82 mm
Engine capacity: 1488 cm3
compression ratio: 22:1
49 kW (67 hp) 4600 rpm, 32.9 kW/L (44.8 ch/L)
diesel fuel.
Engine Isuzu 4ECIT; diesel turbo chamber.
oil 3.75 L
inj. pump, Bosch EV, 1 turbocomp.
60 Ah battery
70 amp alternator
Water 6.3 L.Engine: Diesel 1.7L
4 cyl. Inline
Engine capacity:1686 cm3
compression ratio: 22:1
diesel fuel.
oil 3.75 L
inj. pump, Bosch
60 Ah battery
70 amp alternator
water 6 L.
TRANSMISSION DRIVE LINE:
front wheel drive.
Box 5 speed
Ratios
1.2L I 3.55; II. 1.96; II 1.3; IV. 0.89; V. 0.71; R 3.31
1.4 16V I. 3.55; II. 2.14; III. 1.43; IV. 1.12; V. 0.89; R 3.31
1.6 16V I. 3.73; II. 2.13; III. 1.41; IV. 1.12; V. 0.89; R 3.31
4-speed auto gearbox: I. 2.81; II. 1.48; III 1; IV. 0.74CHASSIS BODY:
self-supporting bodyworkBRAKES:
front disc, rear drums, front discs 23.6 cm, ABS.
handbrake on rear wheelsWHEELS TYRES:
tyres 145 R 13,165/70 R 13,165/65 R 14,185/60 HR 14
Rims
4.5, 5, 5.5 6 J rims.Trip specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.0 12V Petrol 54 16.5 50 3,741 1.2i Petrol 44 17.4 41 3,741 Envoy specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.0 12V Petrol 54 16.5 49 3,741 1.2 16V Petrol 64 13.0 - 15.0 37 - 44 3,741 1.7 D Diesel 59 15.0 54 3,741 Expression specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)1.0 12V Petrol - - 50 Breeze specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.0 12V Petrol 54 16.0 49 3,741 1.2 16V Petrol 64 12.6 - 15.0 37 - 44 3,741 1.2i Petrol 45 - - - 1.4i Petrol 59 - 88 10.2 - 17.4 33 - 38 3,741 1.7 D Diesel 59 14.5 54 3,729 . COM specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.2 16V Petrol 64 13.0 44 3,741 Club specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.0 12V Petrol 55 16.5 49 3,741 1.2 16V Petrol 64 13.0 - 15.5 37 - 44 3,741 1.7 D Diesel 59 15.0 54 3,741 GLS specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.0 12V Petrol 54 16.5 49 3,741 1.2 16V Petrol 64 13.0 - 15.5 37 - 44 3,741 1.2 Petrol 44 17.4 41 3,741 1.4 16V Petrol 88 10.2 - 12.6 34 - 37 3,741 1.5 TD Diesel 66 12.6 52 3,741 1.7 D Diesel 59 - 60 15.0 54 3,741 CDX specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.2 16V Petrol 64 13.0 - 15.5 37 - 44 3,741 1.4 16V Petrol 88 10.5 - 13.0 34 - 37 3,741 1.5 TD Diesel 66 13.0 52 3,741 Sport specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.4 16V Petrol 88 10.5 37 3,741 1.6 16V Petrol 104 9.5 36 3,741 SXi specs
Engine Power
(bhp)0-60 mph
(secs)Fuel Economy
(mpg)Length
(mm)1.2 16V Petrol 64 13.0 43 3,741 1.5 TD Diesel 66 13.0 52 3,741 © Motor car History
