|1981 to 1983|
|Manufacturer||Vehículos Automotores Mexicanos (VAM)|
|Assembly||Mexico City, Mexico|
|Body and chassis|
|Body style||3-door hatchback|
|Platform||AMC’s “junior cars”|
|Engine||282 cu in (4.6 L)|
|Transmission||3-speed TorqueFlite automatic|
|Wheelbase||108 in (2,743 mm)|
|Width||71 in (1,803 mm)|
The VAM Lerma is an automobile that was designed and manufactured by Vehiculos Automotores Mexicanos from 1981 to 1983. The Lerma shared parts with other vehicles by VAM's license partner American Motors (AMC) to cut down manufacturing costs. It was VAM's top-of-the-line flagship model, which the company did not have since the discontinuation of the Classic (Matador) line in 1976. The VAM Lerma was unusual in offering a hatchback design focused at the top end luxury market.
The name for the cars was taken from Lerma, a city in the state of Mexico, where VAM engines were manufactured.
The made in Mexico Lerma was a unique hybrid since it used a chassis and some body panels from a sedan similar to the AMC Concord, but the rear of the car featured a hatchback design. Although the Lerma was a single unit body design (monocoque), a British newspaper article described it as "a bolt-together kit of a car".
There were two body styles available, a 3-door hatchback and a 5-door hatchback (a body style not available for any of AMC's models at that time). The designs were presented to AMC's management as a potential model, but it would have less cargo capacity than the Concord wagon. Considered for other international markets, the Lerma was marketed only in Mexico starting in 1981, and competed in an expanding market segment.The Lerma's most remarkable and striking hatchback design feature also proved to be its biggest drawback, because the shortened rear end resulted in a car with a limited space for storage. Nevertheless, between 1981 and 1983 it was the best selling car in Mexico.
Arguably, the VAM Lerma was the first successful fully Mexican sedan. Vehiculos Automotores Mexicanos is remembered as the first Mexican automotive company that created a car that is regarded by many as totally national.With the exception of the instrument panel, the interior of the Lerma did not share parts with other models and featured uniquely designed and upholstered seats as well as interior door panels.
Style and Equipment
The 1981 VAM Lerma was available as a single edition and carried a VAM 282 cu in (4.6 L) I6 engine with Motorcraft two-barrel carburetor, 8.0:1 compression ratio and 266 degree camshaft designed by VAM's engineering department. It was rated at 132 hp (98 kW; 134 PS) at 3900 rpm and torque of 216 pound force-feet (293 N·m) of torque at 2200 rpm. The only transmission was the Chrysler Torque-Flyte A998 three-speed automatic with 3.07 rear differential gear ratio. Suspension consisted of a front independent design with coil springs with stiff shocks and front sway bar while the rear design incorporated leaf springs with stiff shock absorbers. Brakes were power-assisted units with front disks and rear drums. The cooling system incorporated a three-line radiator, flexible seven-bladed fan, fan shroud and coolant recovery tank. The car carried the same 70 liter (18.5 gallon) fuel tank as the American line. Tire specification was ER78x14.
Interiors were available in four colors: black, nut brown, sky blue, and wine red. With the only exceptions of the A and C-pillar inner plastic moldings, the windshield and rear hatch inner plastic surrounding moldings, the door latches, the door cranks, the side armrests, the door ashtrays, the steering wheel and column plus the dashboard the rest of the interior is 100% made and designed in Mexico by VAM's styling department. The most striking features of the Lerma's interior design relied on the its door panels, side panels, trunk and seats. The first two incorporated high trim fabric and lower portion horizontal carpet inserts with fake horizontal chrome (lower portion) and woodgrain (upper portion) moldings. The seats consisted of a fixed rear bench seat and individual recling front wide bucket seats with adjustable headrests. The pattern on these seats is nothing short of impressive, incorporating a design of four squared buttons forming another square over the seat bottoms and backs. These portions are actually outer ones over the main body of the seat and is not stretched out, giving the feeling and impression of having a cushion over both the main seat bottom and back. The bases of both sets of seats are covered in carpet. The VAM Lerma was the only four-door VAM car not to incorporate a fixed front bench seat, making it also the only four-door VAM car to incorporate individual (reclining) front seats. The Lerma's trunk is unique among VAM (and AMC) cars alike. It is a closed compartment covered in carpet and incorporated both rear stereo speakers at each side of the lid. The lid itself is hinged to the back of the frame near the rear seat back and had a fixed rear light similar to the ones used in the hood, it would flick on and off depending on the position of the lid. Despite how truly elegant the trunk looked, its design made to follow the side lines of the interior of the car as well as the dimensions of the massive rear hatch glass ended up creating a truly low amount of trunk space for barely anything other than the spare tire. This situation forced owners to buy an external roof rack fixed to the side drip rails in order to be able to carry any luggage, which might compromise the looks of the car.

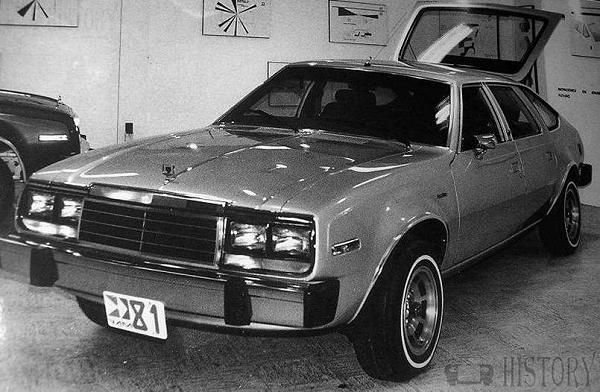

In the exterior, the VAM Lerma showed its influence from the Concord and Spirit models it was based on. The most unique parts being the rear quarter panels, the rear side windows, the squared grid grille design divided into two sets of four horizontal rectangular portions (not shared with any other VAM car), the gold and black VAM logo on the hood ornament, the manuscript "Lerma" emblems over both fenders and right corner of the hatch. One final detail would be added in the middle of the year production; the round side marker lights used in the Rally (Spirit) models were replaced by rectangular units with chrome surrounding area for a more luxurious appearance. The Lerma incorporated an exclusive design of side protective moldings running through most of the length of the car placed higher than the regular moldings. A bright molding package was standard consisting of wheel lips moldings, drip rail moldings, rocker panel moldings, as well as the already chromed bumpers, dual squared chromed mirrors plus the rear glass and windshield moldings. The wheels used by the model was VAM's in-house five spoke 14x6 units complemented by AMC's "Noryl" wheelcover design. The full length of the Lerma was only two inches shorter than that of the VAM American (Concord) sedan models.
Convenience standard accessories included power steering, tinted windshield, intermittent wipers, woodgrain panels applied on dashboard, luxury steering wheel, heater with front defroster, Quartz clock, 180 km/h-110 mph speedometer, water temperature and gasoline level gauges, warning lights with international symbols, inside hood release, rear defroster, lighted vanity mirror on passenger's side sunvisor, AM FM stereo radio with four speakers, cigarette lighter, front ashtray, locking glove box, parcel shelf, complete light group (hood, trunk, front ashtray, glovebox, courtesy, reading dome light), dual remote-controlled remote mirrors (non-electric), three-point retractable front seatbelts, side armrest safety reflectors on front doors, dual rear ashtrays, spare tire cover and locking gas cap. Optional equipment included air conditioning system, power door locks, power windows, power trunk release, electric antenna, power seats, tilt steering column, headers.
The introduction of the VAM Lerma in 1981 was an unexpected move for the whole of the auto industry, creating absolute amazement. Despite the fact that the car was a design based on two previously existing body styles originated in a different country, instead of an all-new body made from a scratch exclusively by Mexican designers and engineers, a feat like the conception and materialization of an original automobile had never been attempted before in the Mexican auto industry. VAM was well known for creating original design features such as interiors (seats and side panels, with special mentions for the 1976 Cassini and Recaro-type Rally designs), body accents (wheels, hubcaps, emblems, vinyl roof treatments, decal designs plus C-pillar porthole opera windows and B-pillar opera windows like the 1977 GFS design that was adopted by AMC for the Concord two-door), and all-new completely-original editions for the Mexican market by Mexicans (Rambler Go Pack two-door sedan, Classic Brougham hardtop, Classic AMX coupe, American 06/S Concord two-door sedan, 1979 Pacer X coupe, 1979-1982 Gremlin X Spirit sedans, and all 1969-1983 Rally models), aside from the known engineering achievements (such as the 4.6/X, 4.6 SX and Go Pack 282 inline six cylinder engines as well as the standard 252 and 282 units). The creation of the Lerma was the highest next step taken by the company.
Despite the novelty and uniqueness the Lerma represented, its performance on the market was much lower than expected by a series of factors. The first of them was the price of the model, being almost on par with the luxury V8 compacts of the competition. The high price also created a problem with several company dealerships that were not able to sell the car because of it. This caused less exposure to customers, which also were not used to a VAM car being part of that market range. The Lerma's styling, while perceived as nice by the general customer base, was also perceived as too plain for a luxury vehicle. While the front and rear of the car were considered acceptable, the sides were cosmatically almost too smooth and monotonous. The chrome treatment VAM chose for the Lerma was considered insufficient. The aspect that is considered the greatest cause for the Lerma to draw customers away was the almost non-existent trunk space, making it impractical. Finally, the marketing campaign could have been better.
Both the Mexican government and public at the time contributed their shares to the partial failure of the VAM Lerma; the auto industry legislation created by the Mexican government in the early 1960s in regards to a limited number of car lines per marque (three) and the number of body styles per line of products always created a limited amount of choices for the Mexican buyer. These limitations forced the auto makers in Mexico to consolidate lines of models and trim levels; mostly opting to offer mid-segment models and semiequipped versions with only a couple low or high end exceptions. In regards to body styles, this situation caused that the smallest most affordable models offered by automakers in Mexico were always the second to the smallest and most basic ones in their home countries. One example of this through the 1970s was that Ford Motor Company's smallest most affordable model was the Pinto in the United States while Ford de México's smallest most affordable model was the Maverick. This meant that in most cases an automaker's smallest most affordable model in Mexico was a compact notchback sedan in either two or four doors, while in their countries of origin there was the possibility of a subcompact hatchback. Under these circumstances, the Mexican public was very accustomed to notchback body styles, making hatchback designs a lot less common and almost unthinkable for a high-end luxury market. Cars like the Volkswagen Caribe (Rabbit) and VAM's own Gremlin and Pacer models had helped to change the trend gradually but by 1981 it was still not enough. People in Mexico at the time were mostly against paying the price of a luxury car for a hatchback.
It would be exaggerated to call the Lerma a failure. The tooling costs of the model were very low as VAM did its finest to use the most of the existing parts and components as possible. The interior door and side panels were shared with the high trim models American GFS, American ECD and Camioneta American DL of the same year. The only interior components not shared with other VAM cars were limited to the trunk, the seats and the headliner. The only exterior components exclusive to the VAM Lerma were the grille, the rear side windows and the protective moldings. The initial sales of the model were enough to regain the investment and it ended up being profitable for the company. The development process of the model was an extremely valuable experience for the company.
610 and 620
Learning from the experience of its first year, VAM offered a substantially changed and updated Lerma model for 1982. In the exterior, the squared grid grille design divided in rectangles was replaced by an all-new totally chromed metal grille with a simple design of thin horizontal stripes with equally thin spaces between them. The headlight bezels were completely blacked out in their internal parts with only their external surrounding portions retaining a chromed appearance. The front parking lights were changed from transparent to amber. Both bumpers received AMC's Eagle thick nerfing strip design with a central bright molding and new VAM-designed plain smooth bumper end caps continuing the bright molding on their upper portions. On both sides, changes were more noticeable. The bright molding on the rocker panels was deleted and new moldings with a six horizontal stripe pattern were fitted to the bottom edges of the front fenders, doors and sides. The wheel lip and drip rail bright moldings remained unchanged while new additional bright moldings appeared in the form of units one the bases of the door and side glass areas as well as new bright moldings for the internal part of the door and side window frames. The trim plate between the side glass (two-door model) or between the rear door and side glass (four-door model) was changed in favor of a new plate following the same six striped pattern as the low side moldings. This plate existed only in the two-door model in 1981 but it was present in both body styles for 1982. The small angular mid side window of the 1981 two-door model was replaced by the normal unit used since the two-door AMC Hornet and two-door AMC Concord base models. The five-spoke VAM wheels with Noryl-type wheelcovers were replaced by new aluminum wheels with chromed volcano centercaps and lug nuts. All of these changes resulted in a highly different Lerma model that looked fairly more luxurious on the outside compared to smoothness of the 1981 version.
The interior saw an amount of changes and upgrades that was as long as the ones on the outside. The most noticeable difference is the deletion of the trunk, leaving a completely open compartment that carried a standard small high-pressure space-saver spare tire. The removal of the trunk meant the relocation of the rear stereo speakers to the rear panel behind the tail lights like in the Rally (Spirit liftback) models. The original fixed Lerma rear bench seat was replaced by the same unit used in the Camioneta American (Concord wagon) incorporating a fold down mechanism for an improved and expanded cargo capacity, retaining its unique original Lerma upholstery design. In terms of appearance, both seats and side panel designs were the same as the year before with only smaller added details for a slightly more luxurious look.
Mechanically, the Lerma for 1982 was almost the same as in 1981. The only differences came in the form a different head gasket for the 4.6 Liter engine that brought compression ratio from 8.0:1 to 8.5:1. The standard A998 three-speed automatic transmission got wider gear ratios. The final technical change came in the midyear with a new head design with larger round intake ports, smaller spark plug outlets and a plastic valve cover; making a slightly more powerful engine.
After giving the Lerma the correct appearance for a luxury car -at least for the preferences of the Mexican buyer- and correcting the error of the limited trunk space, VAM proceeded to solve the problem of the price. The company achieved a solution by creating two different trim levels for the model, the lower-priced intermediate "Lerma 610" and the upscale top-of-the-line "Lerma 620". Despite their focus and advertisement, both versions were almost the same, the differences between each were limited to only five different standard accessories. The Lerma 610 was equipped with two-speed electric wipers, round dome light, heater with windshield defroster, plain passenger's side sun visor and a plain rear hatch glass. The Lerma 620 incorporated intermittent wipers, reading dome light, air conditioning, vanity mirror on passenger's side sun visor and rear wiper and washer. All five additional accessories of the 620 models could be ordered separately in the 610 models. Cosmetically and mechanically, both the 610 and 620 Lerma were equal with the only exception of the visually noticeable presence of the rear wiper.
A move orchestrated by the Mexican government that in the end turned out to be equivocated took its toll on the Lerma as a luxury model and also on all of its competitors. Luxury automotive accessories were mostly among the percentage of imported automotive components by all of the Mexican auto industry. In an effort to reduce importation, the government banned the acquisition of luxury automotive accessories in an effort to have them produced or sourced locally. This meant an inevitable reduction in the lists of both standard and optional equipment. In the first, the Lerma lost the Quartz digital clock, the rear defroster and the "Noryl" wheelcovers. The extra-charge equipment list no longer offered power door locks, power windows, power seats, power trunk release and tilt steering column. Items that were standard in 1981 and survived became optional in 1982 in the form of the remote-controlled exterior mirrors. The full list of optional equipment for the 1982 VAM Lerma 620 consisted of electric antenna, tape player AM FM stereo radio, remote controlled mirrors, headers and sports steel wheels. The new aluminum wheels for 1982 were practically a replacement of the previous year's wheelcovers while the new-for-the rear wiper and washer took the place of the rear defroster.
End of the line
The recession that broke out in February of 1982 swept the whole of the Mexican auto industry. The devaluation of the Mexican peso coupled with the currency flight took VAM's parent company, the FISOMEX conglomerate, almost to brink of bankruptcy. At the current situation, the best possible course of action left was to sell the company and Renault de México stepped in. Due to the additional required time for the hand labor stage of the Lerma production process, the new owner determined the discontinuation of the Lerma line. The short run of the 1983 VAM passenger car line consisted of the base and mid segment American, Gremlin and Rally models like in 1980. Reportedly, leftover 1982 Lerma 610 and 620 units were sold as 1983 models.
A VAM Lerma served as test vehicle for the Stirling engine. It was an alternatives to the traditional engines and converted to an experimental P-40 engine. The Lerma was used to inform the public about the Stirling engine.

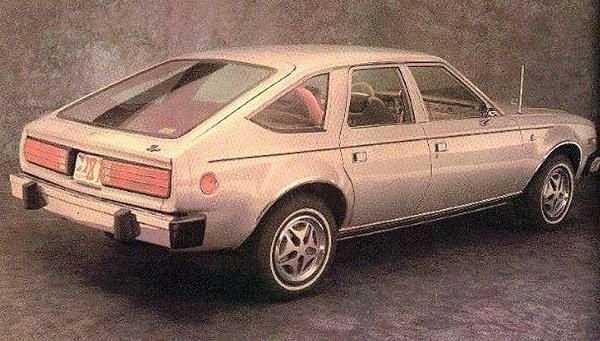

VAM Lerma 4 door rear view
