Toyota Celica First generation A20/35 Series
|1970 to 1977|
|Production||Dec 1970 – Jul 1977|
|Assembly||Toyota, Japan (Tsutsumi plant)|
|Body and chassis|
|Body style||3-door liftback 2-door hardtop|
|Engine||1.4 L T I4 1.6 L 2T I4 1.9 L 8R I4 2.0 L 18R I4 2.2 L 20R I4|
|Transmission||4-speed W40 manual 5-speed W50 manual 3-speed A40 automatic|
|Wheelbase||94.75 in (2,407 mm)|
|Length||164.2 in (4,170 mm)|
|Width||63.0 in (1,600 mm)|
|Height||53 in (1,300 mm)|
|Curb weight||890 kg (1,962 lb) (Early Coupe) – 1,166 kg (2,571 lb) (US Liftback)|
Displayed at the October 1970 Tokyo Motor Show and marketed in December of the same year, the Celica was a personal car that emphasized styling and driving enjoyment. Japanese models were ET, LT, ST, GT, and GTV (which was introduced in 1972, the V standing for Victory). The platform was shared with the Toyota Carina, a vehicle exclusive to Toyota Store Japanese dealerships.
For export markets, the Celica was offered in three different levels of trim; LT, ST and GT.
At its introduction the Celica was only available as a pillarless hardtop notchback coupe. The SV-1 liftback was shown as a concept car at the 1971 Tokyo Motor Show. With slight modifications, this was introduced in Japan in April 1973 as the 2-litre RA25 and 1.600 L TA27 liftbacks. It was then exported to Europe in RHD form as the 1.6-litre liftback. After the October 1975 facelift, it was available in both RHD and LHD forms in other markets. The RV-1 wagon was also shown at the 1971 Tokyo Motor Show but it did not reach production.
The Japanese GT models had various differences from the ET, LT and ST including the hood flutes, power windows, air conditioning, and specific GT trim, but shared a few things with the ST – a full-length center console and oil pressure/ammeter gauges while the LT had warning lights for these functions.
There was also the GTV version, which differed from the GT with a slightly cut-down interior, and did not come standard with things like power windows, but they were optional. The GTV has firmer suspension.
The first generation Celicas can be further broken down into two distinctive models. The first of these was the original with slant nose (trapezoid-like shape front corner light). This is for Coupe model only, TA22, RA20, and RA21. These models were released from 1970 to 1975 and came equipped with the 2T, 2T-G 1.6-liter, or 18R 2.0-liter motor. They had a 95 inches (2,400 mm) wheelbase. The second series had a flat nose (square front corner light) and slightly longer wheelbase (98 in or 2,500 mm wheelbase). This facelift model appeared in Japan in 1974, but for export was the 1976 model year. The Japanese version had engines under 2.0 liters so as to conform to Japanese regulations concerning engine displacement size, thereby allowing buyers to avoid an additional tax for a larger engine.
In some markets, the lower-end LT was equipped with the single carbureted four-cylinder 2T engine displacing 1,600 cc, while the ST came with a twin downdraft-carburetor 2T-B engine. The 2T-G that powered the high-end GT model was a DOHC 1,600 cc engine equipped with twin Mikuni-Solex Carburetors.
PERFORMANCE: 1600/1600 GT
- max speed about 103 mph, 165 km/h (1400)
- power-weight ratio 24 lb/hp, 10.9 kg(1400)
- max power (DIN) 105 hp at 6,000 rpm
- max torque (DIN) 101 1b ft, 14 kg m at 4,200 rpm
- max power (DIN):115hp at 6,400 rpm: (GT)
- max torque (DIN): 105 1b ft. at 5.200 rpm (GT)
- max engine rpm: 6,800 (GT)
- specific power: 66.1 hp/l
- power-weight ratio: 18.1.' lb/hp, 8.2 kg, hp(GT)
- acceleration: standing 1/4' mile 16.5 sec(GT)
- fuel consumption: 26.9 m: imp gal. 22.4 m: US gal(GT)
The first Celica for North America, 1971 ST was powered by 1.9-liter 8R engine. The 1972–1974 models have 2.0-liter 18R-C engines. For 1975–77, the engine for the North American Celica is the 2.2-liter 20R. The Celica GT and LT models were introduced in the U.S. for the 1974 model year. The top-line GT included a 5-speed manual transmission, rocker panel GT stripes, and styled steel wheels with chrome trim rings. The LT was marketed as an economy model. Mid-1974 saw minor changes in the Celica's trim and badges and slightly different wheel arches. The A30 automatic transmission became an option on North American ST and LT models starting in the 1973 model year. For 1975, the 1974 body was used, but body-color plastic fascia and sturdier chrome and black rubber bumpers, replaced the chrome bumpers used in the earlier cars (in accordance with US Federal bumper laws). Unfortunately the early 8R and 18R series engines proved to be less than durable, with early failures common. The 1974 18R-C engine's durability was improved somewhat, but the 20R introduced for 1975 proved to be a better engine in most respects.
1972 Minor Update

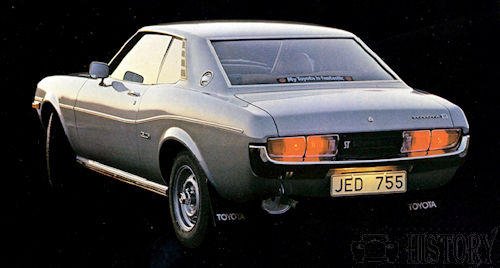

In August 1972, the tail lights were updated from 1 piece tail light (affectionately called 1-tail) to tail lights with distinctive turn signals. The rear center garnish was also redesigned. The fuel tank was moved from the trunk bottom to behind the rear seats; the fuel filler was moved from a concealed location between the tail lights to the left C pillar.

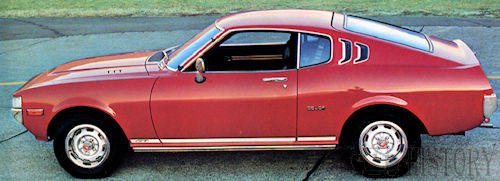

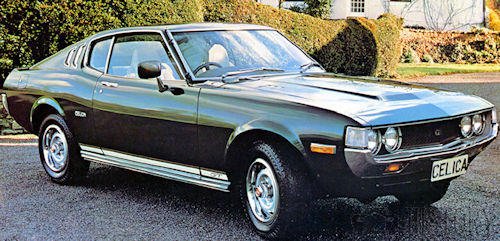

The Liftback was introduced for Japanese market in April 1973, but not until 1976 for export models. Models for home market Liftback were 1600ST, 1600GT (TA27), 2000ST, and 2000GT (RA25 and RA28). The American Liftback was only offered as GT (RA29) with a 2.2-liter 20R engine. All the Liftback models have flat noses. Although there is no "B" pillar in the Liftback, the rear windows do not roll down (as they do in the hardtop coupe).
The Liftback was often called the "Japanese Mustang" or the "Mustang Celica" because of the styling similarities to the Ford Mustang pony car, including the triple bar tail lights that are a signature Mustang styling cue and the overall homages to the muscle-car era.

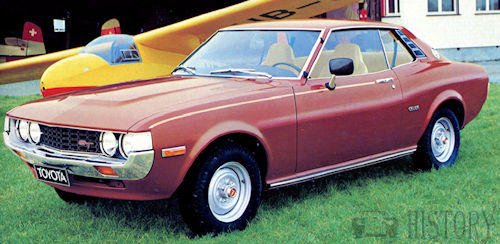

Facelift export models
In October 1975, The entire Celica lineup was given a facelift, with a revised front bumper and grille arrangement. The new model codes for facelift hardtop coupe were RA23 for general worldwide market with 18R engine, or RA24 for the American spec with 20R engine. The Liftback were coded RA28 for worldwide or RA29 for US. Also available was the TA23, which was similar to the RA23, but with the 2T engine. The RA23 and RA28 had a more distinctive bulge hood, which was lacking in the TA22 or RA20 Coupe and in the TA27 and RA25 Liftback Celica. The TA22 Celica also had removable vents mounted in the hood, which the RA23 and RA28 lacked. The RA series also had an elongated nose to accommodate the larger engine. The door vents, fuel filler cap, and interior were also different between the TA and RA series.
For 1976–1977, the non-US GT Liftback was released with the 18R-G Twincam engine with a Yamaha head and running gear. This engine produced significantly more power than the 18R-C. Peak power was about 100 kW (134 hp) at 6,000 rpm.
In Australia, the Celica was first released in the 1.6 L 2T motor. The later 1975–1977 Celica was released with the 2.0 L 18R motor.
Toyota Celica 1st gen Technical details and specifications (1970–1977)
bore and stroke 3.15 x 2.76 in, 80 x 70 mm
engine capacity 85.9 cu in. 1,407 cu cm
8.5 compression ratio
max power (DIN) 86 hp at 6,000 rpm
max torque (DIN) 85 1b ft. 11.7 kg m at 3,800 rpm
61.1 hp/l specific power
2 valves per cylinder, overhead, push rods and rockers
1 side camshaft
1 Aisan downdraught twin barrel carburettor.
ENGINE: 1600 1600 GT
location front, 4 stroke: 4 cylinders: in line
bore and stroke: 3.35 x 2.76 in, 85 x 70 mm
engine capacity: 96.9 cu in. 1.588 cu cm
compression ratio: 9.8 (option) 9.4 compression ratio
cylinder block: cast iron
cylinder head: light alloy
crankshaft bearings: 5
valves- 2 per cylinder. over- head, Vee-slanted, thimble tappets
camshafts: 2. overhead;
lubrication: rotary pump. full flow filter
lubricating system capacity: 6.7 imp pt. 8 US pt. 3.8 1
carburation: 2 Aisan downdraught twin barrel carburettors.
carburation: 2 Mikuni Solex N 40 PHH3 horizontal carburettors (GT)
fuel feed: mechanical pump
cooling system: water
driving wheels: rear
clutch: single dry plate (diaphragm)
gearbox: mechanical 5 plus reverse;
synchromesh gears: all.
gearbox ratios I 3.587, II 2.022. III 1.384, IV 1. V 0.861
gearbox 4 + reverse, gearbox ratios I 3.587, II 2.022, III 1.384, IV 1, rev 3.484
auto-matic gearbox with 3 ratios I 2.400, II .1.479, III 1, rev 1,920, 4.111 axle ratio).
final drive: hypoid bevel
axle ratio: 4.111
front suspension: independent. by Mc-Pherson. coil springs: telescopic damper struts, lower wish. bones (trailing links) anti.roll bar
rear suspension rigid axle, lower trailing arms, upper torque arms. transverse linkage bar. coil springs, telescopic dampers.
turns of steering wheel lock to lock: 3.50.
front disc. rear drum. servo
lining area' front 24.2 sq in, '56 sq cm, rear 54 sq ln. 348 sq cm. total 78.2 sq in. 504 sq cm.
generator type: alternator. 40 A
ignition distributor: Denso
DIMENSIONS AND WEIGHT
wheel base: 95.47 in. 2.425 mm
front track: 50.39 in. 1280 mm: rear track: 50.59 in. 1.285 mm
overall length; 163.98 in, 4.165 mm
overall width: 629 in. 1.600 mm
overall height: 51.57 in. 1310 mm
ground clearance: 6.89 in, 175 mm
dry weight: 2,073 lb. 940 kg
distribution of weight: 57.4% front axle. 42.6% rear axle
turning circle (between walls): 34.1 ft.
© Motor car History
Toyota Celica 1st gen maintenance and Service Guide (1970–1977)
Fuel: 100 oct petrol:
Engine oil: 6.7 imp pt. 8 US Pt. 3.8 1, SAE 20W/30, change every 3,100 miles, 5,000 km (1600)
Lubricating system capacity: 6.7 imp pt. 8 US pt. 3.8 1 (1600)
Gearbox oil: 2.6 imp pt, 3.2 US pt, 1.5 1, SAE 80, change every 18,600 miles, 30,000 km
Final drive oil: 1.8 imp pt, 2.1 US pt, 1 1, SAE 90, change every 18,600 miles, 30,000 km
Cooling capacity: 13 imp pt. 15.6 US pt.
Tappet clearances: inlet 0.011 in, 0.29 mm, exhaust 0.013 in, 0.34 mm (1600 GT)
Valve timing: inlet opens 20° before tdc and closes 40° after bdc, exhaust opens 52° before bdc and closes 16° after tdc (1600 GT)
Normal tyre pressure: front 26 psi, 1.8 atm, rear 26 psi, 1.8 atm.
Width of rims: 4.5".
Tyres: 6.45 H x 13.
Carrying capacity: 706 lb. 320 kg
Tank capacity: 11 imp gal, 13.2 US gal, 50 L
