Toyota Lexus AD engine

2005 on
Toyota AD engine ranges
Overview
ManufacturerToyota Motor Corporation
Production2005–



The Toyota AD engine family is a series of 16 valve DOHC inline-4 turbo diesel engines with electronic common rail direct injection. The AD engine is offered in 2.0 and 2.2 liter versions. These engines were produced mainly for Europe, but few are exported in other areas such as India or New Zealand.

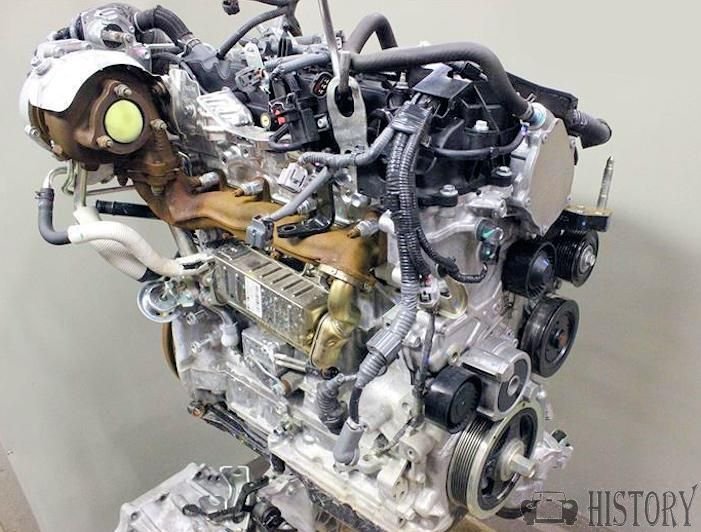

1AD-FTV

TOYOTA 1AD-FTV engine range
Overview
ManufacturerToyota
Production2005-present
Combustion chamber
Displacement1998 cc
Cylinder bore86mm
Piston stroke86mm
Compression ratio15.8:1
Combustion
Fuel typediesel
Output
Power output126 bhp (94 kW)
Torque output310 N·m (229 lb·ft) at 1600 - 2200 rpm
  • Turbocharged

Applications:

  • 2006–2009 Toyota Avensis 2.0 D4D
  • 2009–2012 Toyota Avensis 2.0 D4D
  • 2006–2012 Toyota Auris 2.0 D4D
  • 2006–2009 Toyota Corolla Verso 2.0 D4D
  • 2006–2013 Toyota Corolla 2.0 D4D
  • 2009-2013 Toyota Verso 2.0 D4D
  • 2013-* Toyota RAV4 2.0 D-4D

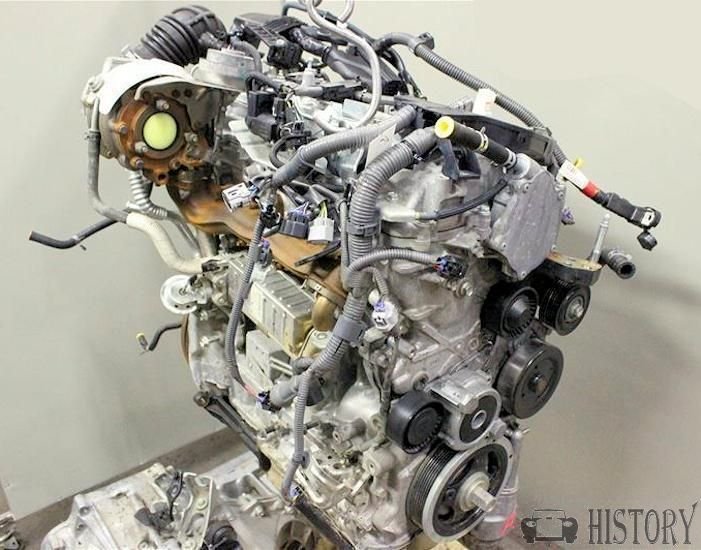

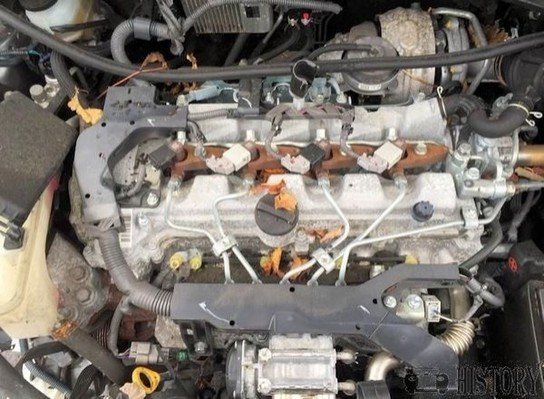

2AD-FTV

TOYOTA 2AD-FTV engine range
Overview
ManufacturerToyota
Production2005-present
Combustion chamber
Displacement2231 cc
Cylinder bore86mm
Piston stroke96mm
Compression ratio15.7:1
Combustion
Fuel typediesel
Output
Power output100 kW (136 PS),
110 kW (150 PS)
Torque output310 N·m (229 lb·ft) at 1600 - 2400 rpm (136 bhp variant),
340 N·m (251 lb·ft) at 2000 - 2800 rpm (15O ps variant)
  • Turbocharged

Applications:

  • 2005–2008 Toyota Avensis 2.2 D-4D 110 kW (150 PS; 148 hp)
  • 2005–2009 Toyota Corolla Verso MC2 D4D 100 kW (136 PS; 134 hp)
  • 2007–2012 Toyota RAV4 2.2 D-4D 100 kW (136 PS; 134 hp),110 kW (150 PS; 148 hp)
  • 2010–2013 Lexus IS200d

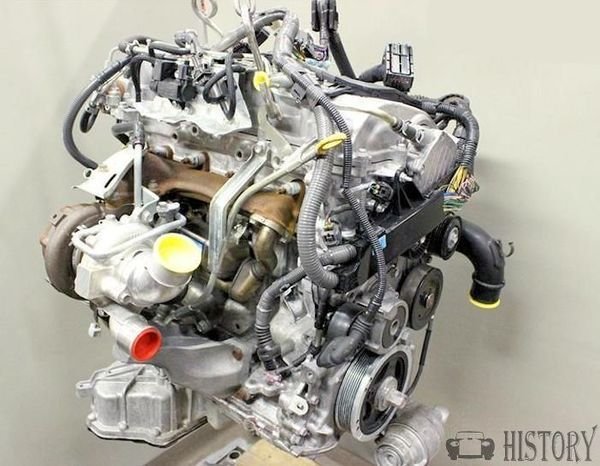

2AD-FHV

TOYOTA 2AD FHV engine range
Overview
ManufacturerToyota
Production2005-present
Combustion chamber
Displacement2,231 cc
Cylinder bore86mm
Piston stroke96mm
Compression ratio15.7:1
Combustion
Fuel typediesel
Output
Power output110 kW (150 PS),
130 kW (177 PS)
Torque output340 N·m (251 lb·ft) at 2000 - 2800 rpm (variant 150ps),
400 N·m (295 lb·ft) at 2000 - 2800 rpm (variant 177ps)

Applications:

  • 2005–2013 Lexus IS 220d (177 bhp)
  • 2005–2008 (Toyota Avensis D-4D T180 or D-CAT)
  • 2006–2012 Toyota RAV4 D-CAT 130 kW (177 PS; 174 hp)
  • 2007–2012 Toyota Auris 2.2 D-CAT 130 kW (177 PS; 174 hp)
Related items
Toyota Avensis | Toyota Rav4 | Toyota Corolla | Toyota related | Straight-4 Engines | Lexus IS | Diesel engines

Technical

Technical
  • Toyota AD engine Technical details and specifications (2005-)

    Engine code: 2AD-FHV 2.2D

    No. of cylinders 4/DOHC
    Capacity 2231cc
    Compression ratio 15.8:1
    Injection sequence 1-3-4-2
    Thermostat opens 86-90°C
