Toyota SZ engine

 Toyota SZ engine range

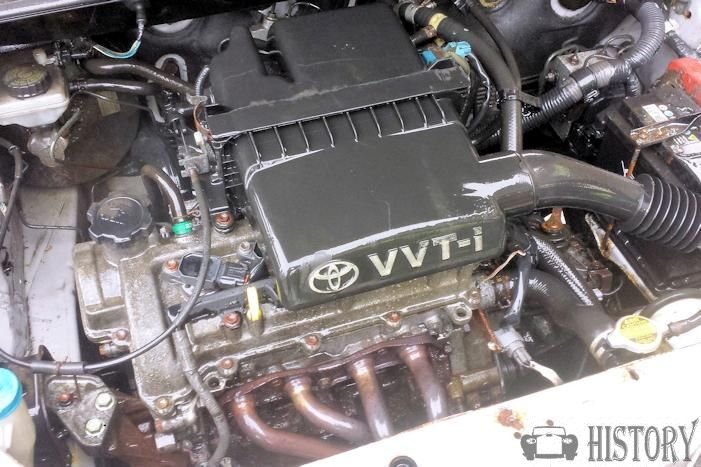

The Toyota SZ engine family is a straight-4 piston engine series with its exhaust facing forward.This engine was jointly developed by Daihatsu. codes are 1SZ-FE (1.0L), 2SZ-FE (1.3L) 3SZ-VE (1.5L)

1SZ-FE

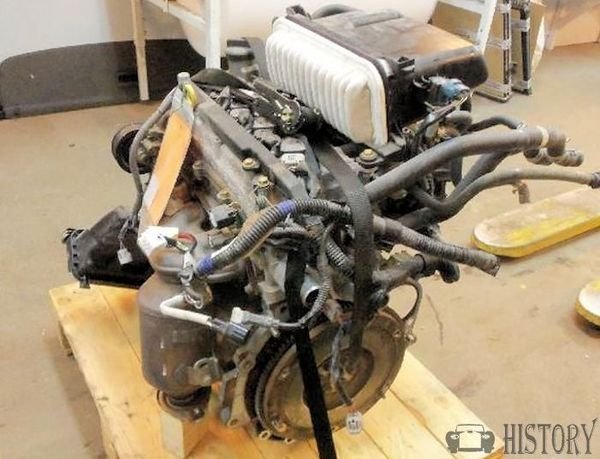

TOYOTA YARIS engine 1SZ-FE.

The 1SZ-FE is 1.0 L (997 cc). Bore is 69 mm and stroke is 66.7 mm, with a compression ratio of 10.0:1. Output is 51.5 kW (69 hp) at 6000 rpm with 95 Nm of torque at 4000 rpm. It features VVT-i, off-set type crankshaft which reduces friction losses and narrow-angle valves. Engine weight of 68 kg was achieved by using cast-iron cylinder block produced by cold-box method.

Applications:

  • Toyota Yaris/Echo/Vitz

2SZ-FE

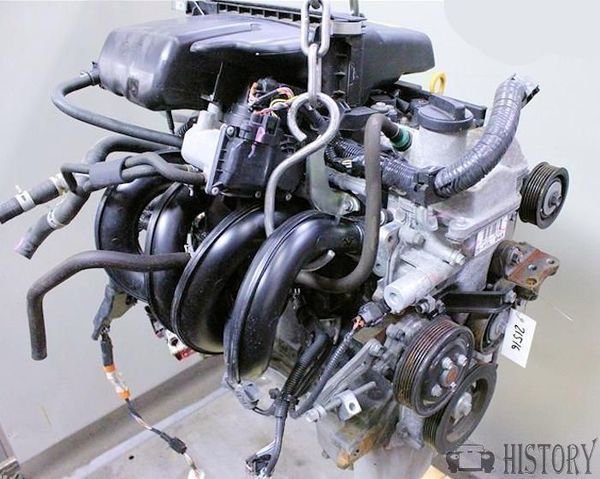

TOYOTA YARIS engine 2SZ-FE

The 2SZ-FE is 1.3 L (1297 cc). Bore is 72 mm and stroke is 79.6 mm, with a compression ratio of 11.0:1. Output is 64 kW (86 hp) at 6000 rpm with 122 Nm of torque at 4200 rpm. It features VVT-i.

Applications:

  • Toyota Yaris/Vitz
  • Toyota Belta

3SZ-VE

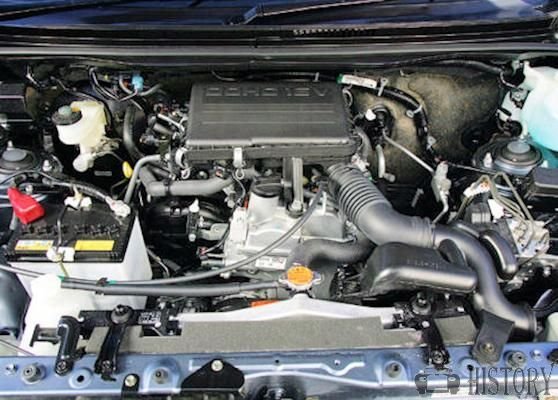

DAIHATSU TERIOS 1.5 3SZ-VE engine

The 3SZ-VE is 1.5 L (1495 cc). Bore is 72 mm and stroke is 91.8 mm, with a compression ratio of 10.0:1 and redline of 6500 rpm. Output is 80 kW (107 hp) at 6000 rpm with 141 Nm of torque at 4400 rpm. It features VVT-i.

Applications:

  • Daihatsu Terios
  • Daihatsu Taruna (2004-2006)
  • Daihatsu Gran-Max
  • Daihatsu Luxio
  • Daihatsu Materia / Daihatsu Coo
  • Toyota bB
  • Toyota Passo Sette
  • Toyota Avanza
  • Toyota Rush
  • Perodua Alza
  • Perodua Myvi SE

Production

The 1.3L and 1.5L SZ engines are built in Tianjin FAW Toyota Engine Co., Ltd. (TFTE) plant No.1.

Technical

  • Toyota SZ engine Technical details and specifications

    Toyota Aris 1.0L Engine code: SZ-FE (1999-2006)

    No. of cylinders 4/DOHC
    Capacity 998 cc
    Ignition system Make Toyota Type TCCS
    Diagnostic socket Yes
    Firing order 1-3-4-2
    Fuel system Regulated pressure 3.0-3.4bar
    Injector 13.4-14.2 Ohm
    Thermostat opens 80°C

    © Motor car History



Service

  • Toyota SZ engine Service details


    Toyota Aris 1.0L Engine code: SZ-FE (1999-2006)

    Spark plugs Original equipment Denso Type K16R-U
    Spark plugs Electrode gap 0.8mm
    Spark plugs Tighten 18 Nm
    Spark plugs Make NGK Type BKR5EYA
    Engine oil grade - normal climate 5W/30SAE Semi-synthetic or 15W/40SAE
    Engine oil grade - cold climate 5W/30SAE Semi-synthetic
    Engine oil grade - hot climate 10W/30SAE Semi-synthetic
    Engine oil with filter 3.2 litres
    Manual gearbox oil grade 75W/90 SAE
    Manual gearbox oil 4/5 speed 1.4 litres
    Cooling system 4.7 litres
    Brake fluid Type DOT 3
    Power steering fluid Type Dexron III 0.7 litres
    Valve clearance -INLET 0.15-0.24mm cold
    Valve clearance -EXHAUST 0.22-0.31mm cold

    © Motor car History
