Subaru Legacy second generation

Subaru Legacy second generation history
ManufacturerSubaru
Production1995-1999
PredecessorLegacy 1st gen
SuccessorLegacy 3rd gen
Body style"B" pillar Hardtop and Wagon
LayoutFF layout '93-'95 standard F4 layout '95 optional, '96 & up, standard (NA-spec)
Engine

2.0 L SOHC 135 hp (101 kW) EJ20 H4 2.0 L DOHC 150 hp (110 kW) EJ20 H4 2.2 L SOHC 137 hp (102 kW) EJ22 H4 2.5 L DOHC 165 hp (123 kW) EJ25 H4

2.0 L DOHC twin turbo EJ20 276 hp (206 kW)
Transmission4-speed automatic 5-speed manual
Wheelbase2,630 mm (103.5 in)
Length1995-97 Sedan: 4,590 mm (180.9 in) 1998-99 Sedan: 4,610 mm (181.5 in) 1998-99 Wagon: 4,690 mm (184.5 in) 1995-96 Wagon: 4,670 mm (183.9 in)
Width1,710 mm (67.5 in) (Int'l) 1,695 mm (66.75 in) (Japan)
HeightWagon: 1,450 mm (57.1 in) 2.5GT Wagon: 1,530 mm (60.3 in) Sedan: 1,400 mm (55.3 in) 2.5GT Sedan: 1,410 mm (55.7 in)
Curb weight1,422 kg (3,135 lb) max
RelatedSubaru Outback



The second-generation Subaru Legacy was marketed in Japan from model year 1993, and 1995 marked the second generation in North America with a full body and chassis revision. The exterior was designed by Olivier Boulay, who was hired by Subaru on a short-term basis. The tail light appearance on both the sedan and wagon was influenced by the taillights on the SVX.

North American models

In 1996, Subaru decided to make AWD standard equipment in all vehicles produced for the North American market from that year to today's current date.

30th Anniversary Edition (1999)

It was a version commemorating the 30th anniversary of Subaru. It includes upgraded interior and sunroof, spoiler, and alloy wheels on the "L" trim level cars.

Japanese models

Subaru still offers a choice between front- and all-wheel-drive for its domestic market vehicles. The MOMO black leather steering wheel installed on the GT and RS model designations continued, but the style changed from a four spoke design to a three spoke. The previous steering wheel was afixed with six allen head screws to an adapter hub that incorporated the cruise control activation switch which was replaced with an integrated hub inside the three spoke steering wheel and is not compatible with the BC-BJ-BF series first generation Legacy cruise control arrangement.

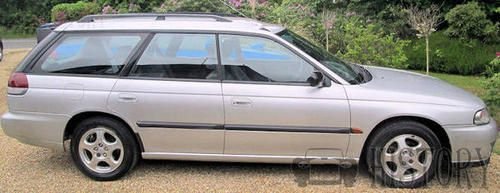

Subaru Legacy second generation side view

GT

Introduced on launch in 1993, the Gen 2 GT introduced Subaru's new Sequential Twin Turbo. These models were still using an EJ20 2.0 L DOHC engine, shared with the RS.

RS

The RS simply was the GT sedan for the Gen 2's, and available in manual or auto. This was a change from the first generation RS, which was manual only, and featured different interiors. There was still a GT sedan offered however, and was full leather, and automatic transmission only.

GT-B (1996-1998)

Was a Japanese model station wagon introduced in June 1996 (BG5B). It includes front and rear Bilstein struts, with the upgrade also available on the RS. The "B" designation stood for Bilstein. The Legacy GT was available for sale around the same time as the Nissan Avenir Salut turbocharged 2.0 L with AWD. The GTB also offered larger brakes, sway bars, wheels, and some different interior options. Manual GTB's and RSB's also featured the EJ20R twin turbo motor, which was the first legacy to offer 206KW. The manual also shared the TY752VBCAA manual transmission from the Version 3 STi. Auto GTB's and RSB's however kept the less powerful EJ20H. Though the EJ20H was revised in 96 for the B revision.

TS-R

Or TS type R, was a 2.0L naturally aspirated DOHC, and had comparable trim to the GT's. B spec TS-R's were also available, with the same body kit, interior, wheels, and Bilstein suspension. The TS-R did not receive projector headlights with the 'Rev B' face lift unlike the 250T and GT's

250T

The 250T was a 2.5L naturally aspirated DOHC, and was available in full GT trim. B spec 250T's were also available, with the same body kit, wheels, and Bilstein suspension.

GT-B Limited (1997-1998)

Offered only for the BG5C revision (MY97), the limited offered an altered front bumper, with additional large spotlights. Other differences included a woodgrain momo wheel and gear knob, not otherwise available. Mechanically they are identical to standard BG5C GTB's though. Limiteds were not available in sedan.

European models

LPG models

According to the French Wikipedia, LPG was introduced as an alternative fuel source on European models with the 2.0 L and 2.2 L engines, built by company Necam Koltec. The fuel tank was installed in the spare tire compartment, with the spare tire installed vertically on the left side of the trunk or cargo area.

Legacy Twin Turbo

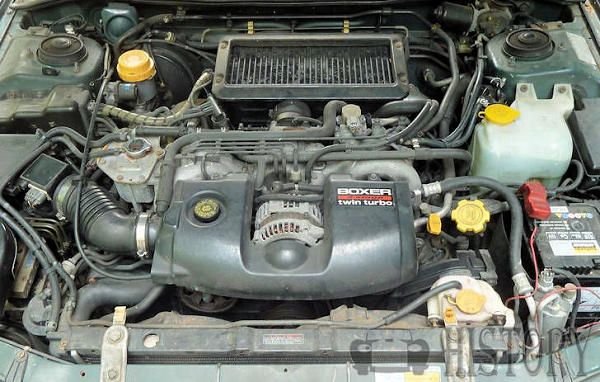

Subaru Legacy second generation Twin-Turbo engine.



Turbocharged versions continued to be available in most international markets. Specialty touring and racing versions were available in Japan, as well as the DOHC 2 liter twin sequential turbocharged (EJ20H & EJ20R) version on both the Legacy sedan and wagon, listed as "Boxer 2-stage Twin Turbo" on the engine cover shroud. This engine was popular with Japanese buyers due to reduced tax liability based on Japanese vehicle size legislation; the car offered performance advantages over larger cars sold in Japan with bigger engines but with a smaller tax bill. The twin turbo can only be installed on right-hand drive vehicles because the turbo on the left side interferes with both the brake master cylinder and steering linkage, among other things. A minor performance problem with the twin turbo is there was a "turbo dead zone" that surfaced between the transition from the first turbo before the second turbo would kick in around 4700-5200 rpm. A continuous traction delivery system, called VTD by Subaru, was used with all JDM turbocharged vehicles with the automatic transmission. The VTD AWD system is a permanent AWD due to its 36% / 64% split.

Trim levels

The Brighton trim level also carried over from the facelifted first generation version that was priced below the "L" trim option.

The "GT" trim level appeared in 1996. The term "Limited" appeared on the "GT", known as the "GT Limited" in 1998. The term "Limited" was used by itself on the Outback in 1998.

GT models, first offered as a wagon trim package for the USA version in 1994, became a full-blown upgrade in 1996, using the new DOHC 2.5L EJ25D flat-4 engine. GT models continue to the present model, with Limited editions available, offering heated leather or cloth seats and trim and a tinted glass moonroof. Driver and front passenger airbags were added with the redesigned interior. New equipment added to the list of features included RF remote keyless entry, fog lights on the upper trim levels and speed-sensitive power steering.

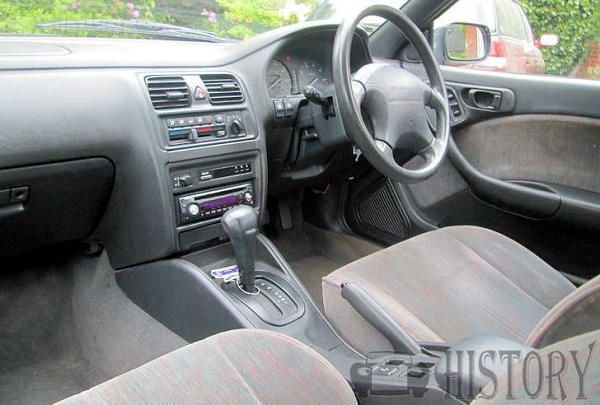

Subaru Legacy second generation interior

Legacy SUS

The Legacy SUS (for "Sport Utility Sedan")was launched with a limited production test run sold in New England (USA) in 1998 and, based on its success, was rolled out in North America only the following year. The "Limited" trim level package for the Outback wagon was standard equipment on the sedan body, with the addition of a hood scoop and trunk-mounted rear wing. Despite the appearance of the front hood scoop, the SUS was not installed with a turbocharged engine; the only engine installed from Subaru was the naturally-aspirated EJ25D engine. The "SUS" moniker was removed with the introduction of the Second Generation. Plastic side cladding was not present on the side doors of the Outback; the lower half of the doors were painted a contrasting color also found on the front and rear bumper covers.

Specifications

Chassis types

CodeBody style
BDSedan
BGStandard 'stepped' roof wagon
BKflat roof wagon

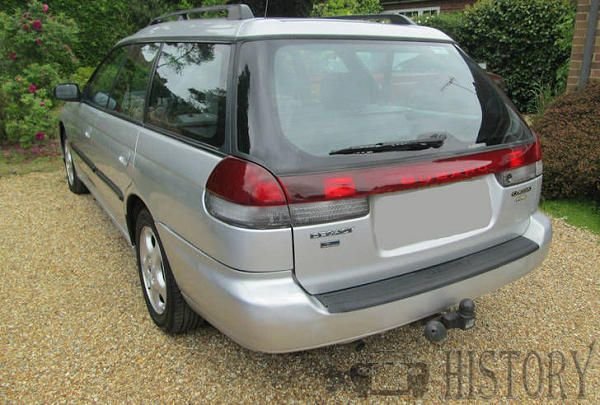

Subaru Legacy second generation  rear view

Related items
Japanese Vehicles from 1990s | Vehicles launched in 1995 | Subaru Legacy | Boxer Engine

Rating

Have you Say: Rate this
Overall Vote
80% - 2 votes
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Service
  • Subaru Legacy 2nd gen Maintenance and Service Guide (1995-1999)

    Engine 2.0L EJ20

    Spark plugs Original equipment NGK Type BKR6E-11
    Spark plug Electrode gap 1.0-1.1mm
    Spark plugs Tighten 18-24 Nm
    Spark plug Make Bosch Type FR7DCX
    Valve clearance -INLET Hydraulic
    Valve clearance -EXHAUST Hydraulic
    Drive belt tension alternator/PAS/AC 9-11mm
    Drive belt tension AC 9-10 mm
    Engine oil grade - normal climate 10W/40 SAESAE or 10W/30 SAE
    Engine oil grade - cold climate 5W/30 SAE
    Engine oil grade - hot climate 20W/50 SAE
    Engine oil change with filter 4.0 litres
    Sump oil drain bolt Tighten 44 Nm


    Manual gearbox oil grade 75W/90 SAE
    Manual gearbox oil 4.0 litres
    Automatic transmission fluid Type Dexron II
    Differential oil grade front 80W/90 SAE
    Differential oil front/AT 1.2 litres(AT)
    Differential oil grade rear 75W/90SAE
    Differential rear oil 0.8 litres
    Cooling system 6.0 litres
    Brake fluid Type DOT 3/4
    Power steering fluid Type Dexron II
    Power steering fluid 0.7 litres
    Road wheels Tighten 78-98 Nm
    Parking brake travel 7-8 notches

    © Motor car History

Technical
  • Subaru Legacy 2nd gen Technical details and specifications (1995-1999)

    DIMENSIONS

    Length overall -4595mm(181 in) Estate 4670 (184 in)
    Width overall -1695mm(66.7in)
    Height overall -1405mm(55.3in)
    Weight-kerb -1240kg(27341b) Estate 1290(2844in)
    Ground clearance -160mm (6.3in)
    Wheelbase -2630mm (103.6in)

    BRAKES

    Type -Diagonal dual circuit (ABS GLS)
    Power assistance -Vacuum servo 180+205mm
    Front -Ventilated discs 260x24mm
    Rear -Drums 228,6mm
    Handbrake -Mechanical on rear wheels

    STEERING

    Type -Rack and pinion PAS

    SUSPENSION

    Front type -Coil springs/struts, anti roll bar
    Rear type -Coil springs/struts, trailing arms, transverse

    ELECTRICAL

    Battery - 12V 48Ah; neg earth
    Alternator -70A
    Starter motor -1.O kW; Auto


    Engine 2.0L EJ20
    No. of cylinders Type /OHC
    Capacity 1994cc
    Combined ignition and fuel ECM Yes
    Diagnostic socket Yes
    Ignition coil Make Diamond Type F-569-01R
    Firing order 1-3-2-4 (1# front)
    System pressure 2.35-2.65 bar
    Injector 11-12 Ohm
    Oil pressure 2.9/5000 bar/rpm
    Radiator cap 0.78-0.98 bar
    Thermostat opens 76-80°C
    Maximum cranking amps 140-172 A
