Saab 95
![]() |
|
|
Manufacturer |
Saab |
|
Production |
1959 to 1978 |
|
Class |
Motor Car |
|
Body style |
3-door station wagon, van |
|
Layout |
FF layout |
|
Related |
Saab 93, 96 |
|
Engine |
841 cc 2-stroke I3 |
|
Transmission |
4-speed manual |
|
Wheelbase |
2,500 mm (98.4 in) |
|
Length |
4,300 mm (169.3 in) |
The Saab 95 is a seven-seater, two-door station wagon The station wagon version 95 (and 95 B) ran parallel to the 96 at the Saab headquarters Trollhättan .which was produced by Saab from 1959 to 1978.
Based on the Saab 93 sedan,followed closely that of the Saab 96 after the 93 production ended. Saab's two-door station wagon was introduced in June 1959, with a larger three-cylinder engine but still two-stroke. Bore was increased from 66 to 70 mm, but stroke retrained the same size. The new engine had a 12-bolt head, versus eight bolts for the smaller three-cylinder version, to solve the previous problem of blown head gaskets It had a four-speed manual transmission. Only 40 were made in 1959.
Fitted with a handle on the dash that,, put the car into a freewheeling type mode to coast downhill .A restyled rear end followed the line of the door window (instead of the sedan's familiar look).

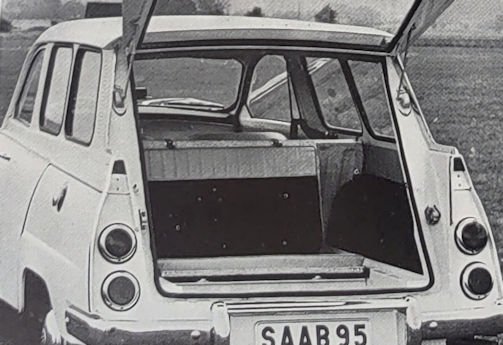

the rear fenders formed with Twin round tail lamp pairs were mounted one over the other with the license plate between its overriders.
The 95 wagon could carry as many as seven people. Initial Type 95 wagons retained the rear-hinged doors of the 93B then switched to front-hinged doors as on the 93F. Both rear seats fold to create a long cargo area, or be used even as a bed.. Tires now larger to 5.60x15 size, and the gas tank had a larger capacity. Available luggage space with 2 passengers, floor area 63X 37 in., height of space 30 in. Weight capacities: driver plus 1,120 lb. of luggage, driver plus 1 passenger plus 935 lb., driver plus 4 passengers plus 375 lb. Overall length 14 ft; weight 1,958 lb.
PERFORMANCE:
Engine capacity: 51.44 cu in, 841 cu cm;
Fuel consumption: 37.6 m imp gal, 31.5 m US gal, 7.5 1 x 100 km;
Max speed:: 74.5 mph, 120 km h;
max power (SAE): 42 hp at 5000 rpm
max torque (SAE)61 1b ft, 8.4 kgm at 2800 rpm
max number of engine rpm: 5500
specific power:62 hp/l
power-weight ratio: 44.1 lb/hp, 20 kg/hp;
max speed in 1st gear: 21.7 mph, 35 km/h; max speed in 2nd gear: 37 mph, 60 km/h; max speed in 3rd gear: 61 mph, 98 km/h max speed in 4th gear: 74.5 mph, 120 km/h
Related
Technical
-
ENGINE:
front, 2 stroke; cylinders: 3, In line, slanted
bore and stroke 2.76 x 2.87 in, 70 x 72.9 mm
engine capacity: 51.44 cu in, 841 cu cm
compression ratio: 7.3 : 1
cylinder block: cast iron
cylinder head: light alloy
crankshaft bearings: 4 on ball bearings
lubrication: mixture 1 : 33
carburation: 1 Solex 40 Al or Zenith single barrel downdraft carburettor
fuel feed: electic pump
cooling system: waterTRANSMISSION:
driving wheels: front
clutch: single dry plate
gear box:mechanical; gears: 4 + reverse
ratios: (I) 3.56, (II) 2.10, (III) 1.28, (IV) 0.84, (Rev) 3.25
gear lever: steering column
final drive: spiral bevel
ratio: 5.43 : 1.CHASSIS:
integral
front suspension: independent, wishbones, coil springs,anti-roll bar, telescopic dampers
rear suspension: rigid axle, swept back ends,swinging trailing lower radius levers, U-shaped central transverse linkage, coilsprings, telescopic dampers.STEERING:
rack-and-pinion
turns of steering wheel lock to lock: 2.25.BRAKES:
drum, 2 front leading shoes
braking surface: total 104.62 sq in,675 sq cm.ELECTRICAL EQUIPMENT:
voltage: 12 V
battery: 33 Ah
dynamo: 160 W
ignition distributor: BoschDIMENSIONS AND WEIGHT:
wheel base: 97.95 in, 2488 mm
front track: 48.03 in,1220 mm
rear track: 48.03 in, 1220 mm
overall length: 162.20 in, 4120 mm
overall width: 61.81 in, 1570 mm
overall height: 58.07 in, 1475 mm
ground clearance: 7.48 in, 190 mm
dry weight: 1921 1b, 871 kg
-Note: More Specifications and Repair Manuals available for registered users-
© Motor car History
Service
-
fuel: petrol, 80-85 oct and oil
gearbox and final drive oil: SAE 90, change every 7500 miles, 12000 km
greasing: every 900 miles,11 points
cooling system capacity: 6.7 imp qt, 8.0 US qt, 7.6 1.
tyre pressure front 21 psi, 1.5 atm, rear 23 psi, 1.6 atm.
tyres: 5.60 - 15
fuel tank capacity: 9.57 imp gal
width of rims: 4"-Note: More Specifications and Repair Manuals available for registered users-
