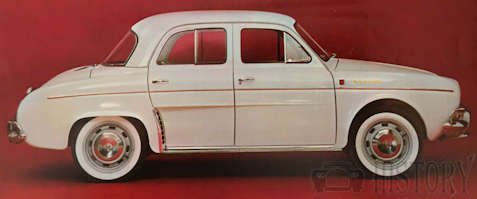

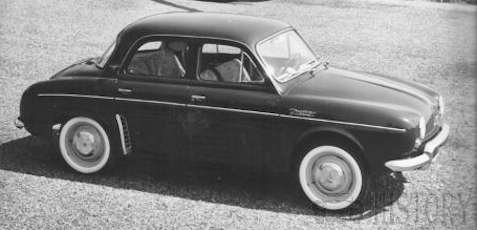

Renault Dauphine Gordini car History from 1957 to 1967
![]() | |
Manufacturer | Renault |
Years of production | 1957 to 1967 |
Class | Sports car |
Engine | Petrol 845 cm 3 |
The Renault Dauphine Gordini is an automobile model that was manufactured by Renault which include a sports version the Dauphine Gordini and a model for the race (homologated on the road): the Dauphine 1093 .
History
Renault uses Amédée Gordini to build a more efficient version. The "Sorcerer" then makes a little preparation, so was born the Dauphine Gordini (type R1091) in 1957 .
The power of the block increases to 33 hp DIN and the top speed to 126 km / h thanks to a new cylinder head , the increase in the compression ratio and the use of a 32 mm carburetor , springs harder valves and enlarged intake-exhaust ducts. The first modifications made by Amedée Gordini (vertical head) will however not be kept on the standard model for cost reasons.The gearbox changes to four gears and the body is lowered slightly. The tires are 145x380 instead of the standard 135x380.
For the 1964 and 1965 models , the Dauphine Gordini is replaced by the Dauphine Export (type R1094) with the same finish as the standard 28hp DIN engine and a synchronized four-speed gearbox. Like the new normal Dauphine (type R1094), it is equipped with the four disc brakes of the R8 . From the 1966 models , the Dauphine Gordini type R1095 is the only Dauphine to survive until the end of the series at the end of 1967 . The name Gordini no longer appears on the bodywork.The R 1091 "Americanized" Dauphine Gordini was also be exported to the USA.
Spanish manufacturer FASA to assemble at its plant in Valladolid of Renault 4CV with bodies manufactured by Cointra body, In 1965, thanks to a relaxation of the Spanish rules, a stake in FASA which is renamed Fasa-Renault .In total, the production of Dauphine, 44,861 Gordini models produced from 1961 to 1967.
Argentina: IKA Dauphine I in 1959 to manufacture Renault models under license. The production of the Dauphine begins in July 1960 with the assembly of the first Dauphine adapted to the local road network. A more uprated version appears at the end of the year, named Gordini. and 34,566 Gordini made from 1960 to 1970.
The Dauphine 1093 (type R1093) is the competition version of the Dauphine. It was manufactured between November 1961 and April 1963 to 2140 units in two series (In 1961-1962 1650 vehicles and in 1963 490 vehicles) Both series were equipped with the same improved Gordini engine. The vehicles of 1962 and 1963 are distinguished by finishing details (in particular by the color of the white body Réjane in 1962 and white-gray Valois in 1963 and by the color of the dashboard).
Externally, the 1093 differs from the Dauphine Gordini by its large diameter front headlamps (180 mm ) borrowed from the USA version, its two blue stripes (adhesive canvas) stuck in the axis of the vehicle and its initials 1093 on the back cover as well as on the right front fender for the 1962 series. The dashboard is made of beige anti-reflective metal for the 1962 version and frosted black for the 1963 version. Both versions have a mechanical tachometer (driven by a 'Jaeger' lighter plug) with yellow and red warning zone starting at 5500 rpm and 6000 rpm and a specific speedometer (tachometer) measuring up to 180 km / h .
The engine of the 1093 is the engine of the Dauphine Gordini whose power has been increased to 49 CV DIN (instead of 36 HP). This increase in power was made possible by the installation of pistons with convex head (compression ratio increased to 9.1), a twin- shaft carburetor Solex inverted type 32 PAIA 3 , a specific camshaft by modification of the intake phase, a work on the cylinder head (reduction of its height to 93.5 mm and a volume of the rooms reduced to 25 cm 3 instead of 27.3 cm 3 ), the valves are with double springs and it is mounted a direct tubing of admission - exhaust of Autoblue brand. To cope with this increase in power, the distribution gears are reinforced as well as the clutch (Ferodo type PKH 5/2). The cooling radiator is in copper bundles instead of being steel. The 1093 was sold for a maximum speed of 140 km / h.
PERFORMANCE
FUEL CONSUMPTION 47 m/imp gal, 39.2 m/US gal, 6 1 x 100 km
MAX SPEED 78.3 mph, 126 km/h
max power (SAE): 38 hp at 5,000 rpm
max torque (SAE): 43 1b ft, 5.9 kg m at 3,300 rpm
max engine rpm: 5,200
specific power: 47.3 hp/l
power-weight ratio: 37.7 lb/hp, 17.1 kg/hp
speed in top at 1,000 rpm: 15.2 mph, 24.5 km/h.
max speeds:22.4 mph, 36 km/h in 1st gear;36 mph, 58 km/h in 2nd gear;54.7 mph, 88 km/h in 3rd gear;78.3 mph, 126 km/h in 4th gear
1093 is equipped with a box of 4-speed specific speeds (including 3 synchronized) derived from the standard box 318 of the Gordini ( 4 e slightly longer).
The braking system is the original one with drums, but the hot resistance of braking is improved by the mounting of specific front drums with cooling fins.
The suspension is that of Dauphines exports type "bad roads" but with shorter springs. The 'bad roads' suspension was characterized by the adoption of front suspension springs with higher taring, a front torsion bar of 12 mm instead of 8 mm and the mounting of a front landing strut bar. The 'bad roads' equipment also included the fitting of a fuel tank protection plate.
The 1093 is the only Dauphine (except the "Ferlex" and automatic "Jaeger" semi-auto clutch versions) to have been marketed in France with 12-volt electrical equipment similar to exports (USA) instead of the 6-volt version. 'origin.
Despite its very sporty character for "mister everyone", the "serial 1093" could not be competitive without being prepared. The preparation was to modify and polish the existing mechanics because the new sports regulations in force since 1960 prohibited any increase in engine capacity and changes of parts. Ferry took care of many competition Dauphine 1093 that became "1093 improved".
The 1093 is the most sought after of all the Dauphines. Today, it is estimated that a hundred hundred of 1093 have survived, half of which are in working order. Only one Dauphine 1093 has been known to date (2016) in perfect working condition in its original state without having been restored (Perhaps there are others at the back of garages or private collections?)
In 1962 , the Dauphine 1093 won the Tour de Corse rally . However, its late launch and the modest modifications did not allow for a long sporting career. The 1093 remains an endearing car that ensures the transition between the 4CV 1063 craft and the R8 Gordini, which will revolutionize the "series tourism" automobile competition.
Pierre Ferry is an engineer, motor racing enthusiast who runs in 4CV at the time. With the arrival of Dauphine Gordini, he changes his mount and takes the opportunity to make some changes:
- specific camshaft including the famous No. 12;
- intake pipe 30 mm in diameter instead of 28 of origin;
- harder valve springs;
- pistons 60 mm in diameter instead of 58 mm .
These modifications allow the Dauphine to reach a speed of 145 km / h instead of the 126 km / h of the Gordini.
Ferry even built for Dauphine engine of 1000 cm 3 based on the original motor. The new power of nearly 80 hp allowed to reach 180 km / h . He also designed a large number of parts such as oil pans or camshafts.
Rating
Technical
-
Renault Dauphine Gordini Technical details and specifications (1957-1967)

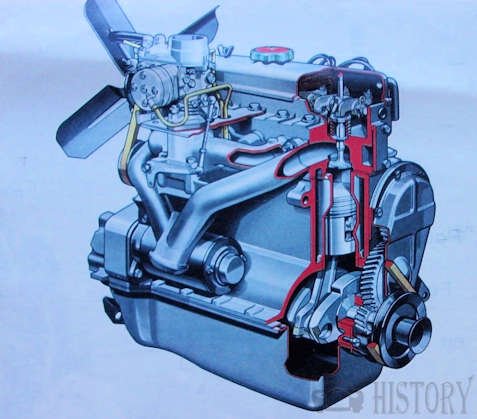

ENGINE
CAPACITY 51.56 cu in, 845 cu cm rear, 4 stroke
cylinders: 4, vertical, in line
bore and stroke: 2.28 x 3.15 in, 58 x 80 mm
engine capacity: 51.56 cu in, 845 cu cm
compression ratio: 8
cylinder block: cast iron, wet liners
cylinder head: light alloy
crankshaft bearings: 3
valves: 2 per cylinder, overhead, in line, push-rods and rockers
camshafts: 1, side
lubrication: gear pump, filter in sump
lubricating system capacity: 4.40 imp pt, 5.28 US pt, 2.5 1
carburation: 1 Solex 32 PIBT downdraught single barrel carburettor
fuel feed: mechanical pumpTRANSMISSION
driving wheels: rear
clutch: single dry plate
gearbox: mechanical
gears: 4 + reverse
synchromesh gears: 1st, 2nd, 4th
gearbox ratios: 1 3.610, 2 2.250, 3 1.480, 4 1.030, rev 3.080
final drive: hypoid bevel
axle ratio: 4.375.CHASSIS
integral
front suspension: independent, wishbones, coil springs, anti-roll bar, telescopic dampers with auxiliary rubber springs
rear suspension: independent, swinging semi-axles, coil springs, auxiliary air rubber springs, telescopic dampers.STEERING
rack-and-pinion, pull-off spring; turns of steering wheel lock to lock: 4.50
BRAKES
disc (diameter 10.28 in, 261 mm); area rubbed by linings: total 342.95 sq in, 2,212 sq cm.ELECTRICAL EQUIPMENT
voltage: 6 V; battery: 84 Ah; generator type: dynamo, 34 Ah; ignition distributor: Ducellier or Paris RhöneDIMENSIONS AND WEIGHT
wheel base: 89.37 in, 2,270 mm
front track: 49.21 in, 1,250 mm
rear track: 48.11 in, 1,222 mm
overall length: 155.31 in, 3,945 mm
overall width: 59.84 in, 1,520 mm
overall height: 54.53 in, 1,385 mm
ground clearance: 5.51 in, 140 mm
dry weight: 1,433 1b, 650 kg
distribution of weight: 38.1% front axle, 61.9% rear axle
turning circle (between walls): 32.1 ft, 9.8 m© Motor car History
-
Renault Dauphine Gordini Service instructions (1957-1967)
fuel: 90-95 oct petrol
fuel tank capacity: 6.4 imp gal, 7.7 US gal, 29 1.
engine sump oil: 4.40 imp pt. 5.28 US pt. 2.5 1, SAE IOW-40, change every 3,100 miles, 5,000 km
gearbox and final drive oil: 3.34 Imp pt. 4.02 US pt. 1.9 1, SAE 80, change every 6,200 miles, 10,000 km
greasing: every 12,400 miles, 20,000 km, 1 point
cooling system: water; cooling system capacity: 8.10 imp pt, 9.72 US pt, 4.6 1.
tappet clearances: Inlet 0.006-0.008 in, 0.15-0.18 mm, exhaust 0.008-0.009 in, 0.18-0.22 mm
valve timing: Inlet opens 7° before tdc and closes 45° after bdc, exhaust opens 45° before bdc and closes 7° after tdc
tyres: 135 x 380 normal tyre pressure: front 14 psi, 1 atm, rear 23 psi, 1.6 atm.
carrying capacity: 772 1b, 350 kg© Motor car History
