About
Technical
-
Petrol Technical data
2.2 16V
3.2 V6
Construction period
1998-2000
2000-2004
1998-2004
variants
Three-door,
five-doorfive-door
engine type
R4 petrol engine
V6 petrol engine
Number of valves per cylinder
4
valve control
DOHC, timing belt
mixture preparation
manifold injection
engine charging
-
cooling
water cooling
motor identification
X22SE
Y22SE
6VD1-W
Bore × stroke
86.0 × 94.6 mm
93.4 × 77.0 mm
capacity
2198 cc
3165 cc
compression ratio
9.6: 1
9.4: 1
Max. power
100 kW
(136 hp)
at 5200 rpm151 kW
(205 hp)
at 5400 rpmMax. torque
202 Nm
at 2500 rpm290 Nm
at 3000 / mindrive
Rear-wheel drive with switchable four- wheel drive
Gearbox, standard
5-speed manual transmission
Gear, optional
-
4- speed automatic transmission
Front suspension
Independent suspension on double wishbones, spring bars
Rear suspension
Live axle, coil springs
brakes
Disc brakes front, Ø 257 mm, drum brakes rear
body
Sheet steel, on sheet steel box frame
length
Three-door: 4268 mm (base) / 4407 mm (RS)
Five-door: 4658 mm (base) / 4702 mm (Limited)width
1787 mm (base) / 1814 mm (RS / Limited)
Height (unloaded)
Three-door: 1692 mm (base) / 1755 mm (RS)
five-door: 1740 mm (base) / 1748 mm (Limited)wheelbase
Three-door: 2462 mm / five-door: 2702 mm
Track in front
1515 mm
Gauge rear
1520 mm
ground clearance
208 mm (base) / 216 mm (RS / Limited)
top speed
161 km / h
192 km / h
with automatic: 188 km / hAcceleration, 0-100 km / h
14.0 s
9.7 s
with automatic: 10.0 sFuel consumption per 100 km (combined)
11.4 l s
12.6 l S
with automatic: 13.6 l SCO 2 emission (combined)
273 g / km
303 g / km
with automatic: 326 g / kmemission standard
Euro 2
Euro 3
Euro 2
from 2000: Euro 3Diesel Technical data
2.2 DTI 16V
1998-2000
2000-2002
2002-2004
Three-door,
five-doorR4 diesel engine
4
OHC, chain
direct injection
Turbocharger, intercooler
water cooling
X22DTH
Y22DTH
84.0 × 98.0 mm
2171 cc
18.5: 1
85 kW
(115 hp)
at 3800 rpm88 kW
(120 hp)
at 3800 rpm260 Nm
at 1900 rpm280 Nm
at 1900 rpmpower transmission
Rear-wheel drive with switchable four- wheel drive
5-speed manual transmission
4- speed automatic transmission
-
Independent suspension on double wishbones, spring bars
Live axle, coil springs
Disc brakes front, Ø 257 mm, drum brakes rear
Body and dimensions
Sheet steel, on sheet steel box frame
Three-door: 4268 mm (base) / 4407 mm (RS)
Five-door: 4658 mm (base) / 4702 mm (Limited)1787 mm (base) / 1814 mm (RS / Limited)
Three-door: 1692 mm (base) / 1755 mm (RS)
five-door: 1740 mm (base) / 1748 mm (Limited)Three-door: 2462 mm / five-door: 2702 mm
1515 mm
1520 mm
208 mm (base) / 216 mm (RS / Limited)
154 km / h
with automatic: 157 km / h158 km / h
13.9 s
with automatic: 15.0 s14.5 s
9.2 l D
with automatic: 9.8 l D8,3 l D
247 g / km
with automatic: 263 g / km224 g / km
Euro 2
Euro 3
Manuals
Opel Frontera B
|
|
|
|
Production period: |
1998 to 2004 |
|
Body versions: |
Combi, Cabriolet |
|
Engines: |
Gasoline : 2.2-3.2 Liters (100-151 kW) |
|
Length: |
4326-4508 mm |
|
Width: |
1788 mm |
|
Height: |
1704-1758 mm |
|
Wheelbase: |
2462-2702 mm |
|
Curb weight: |
1735-1872 kg |

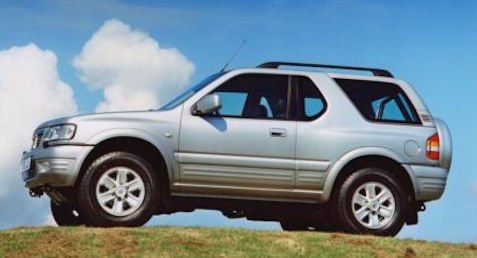

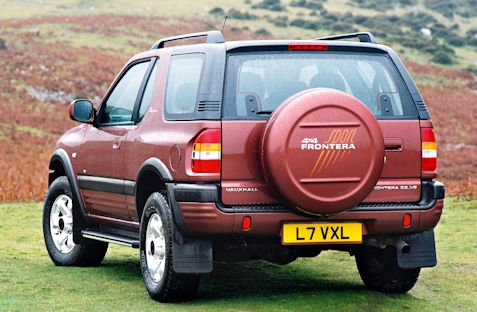

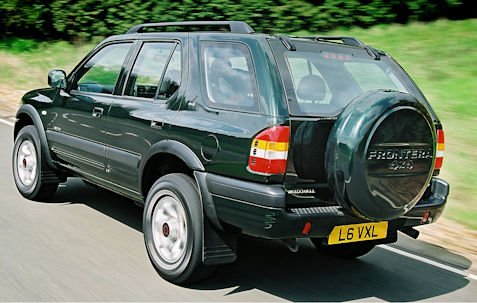

In September 1998, the new Frontera B was introduced based from the Isuzu MU but made in the UK. The vehicle was available, as its predecessor (Frontera A), as a three-door short wheelbase (Sport) and a five-door with a long wheelbase with special versions and limited editions.
The Frontera B (five-door) was a bit shorter, but a little wider. The Frontera B now had a 2.2-l 16V petrol engine as standard engine. A 2.2-l DTI-16V and a larger 3.2-l V6 supplied by Isuzu were offered for a surcharge from the Isuzu MU.
In the summer of 2001, there was a facelift with a different grille and clear glass headlights.
The sale of the Frontera in Europe was discontinued at the beginning of 2004, production also ended in the UK for the Vauxhall version.
|
