Chassis
Wheel suspension front: independent, McPherson struts, coil springs, telescopic shock absorbers
Wheel suspension rear: Torsion beam axle with Panhard rod, coil springs, longitudinal arms
Anti roll bar: frontDrive axle: front wheel drive
Transmission, type: manual
Clutch, type: dry single plate
Vivaro 1.9 DI 60kW/82hp 5-speed combi
Engine data
Engine, location: front, transverse on axle, 6° backward inclined
Cooling system: with liquid, sealed circuit
Cylinders, number: 4
Bore (mm): 80
Stroke (mm): 93
Displacement (cc): 1870
Compression ratio: 18.3:1
Engine, type: in line; 5 Main bearings
Cylinder block/head, material: cast iron / aluminum
Camshaft(s), location: 1 overhead (OHC), driven by toothed belt
Valve train: bucket tappets
Valve, arrangement: parallel; 2 per cylinder
Valve adjustment: automatic - hydraulic
Fuel system: diesel direct injection, common rail
Emission control system: oxidizing catalytic converter
Charger system: turbo with intercooler
Output (kW/hp CEE at 1/min): 60 / 82 at 3500
Specific power (kW/l; hp/l): 32.1; 43.9
Max. torque (Nm at 1/min): 190 at 2000
Specific torque (Nm/liter): 101.6
Mean effective pressure at max. power/max. torque (kPa): 1100.1 / 1277.4
Average piston speed (m/s): 10.9
Engine oil, capacity (l): 4.5
Battery 12 V, capacity (Ah): 85
Alternator 12 V, capacity (W): 1620
The Vivaro was offered with the following engines:2.0
1.9 DI 1
1.9 DTI 1
Construction period
07 / 2002-06 / 2006
07 / 2006-08 / 2011
06 / 2001-06 / 2006
Motor characteristics
engine code
F4R 720
F4R 820
F9Q 762
F9Q 760
engine type
R4 gasolineengine
R4 diesel engine
engine charging
-
turbocharger
capacity
1998 cm³
1870 cc
Max. Power
at min -188 kW (120 hp)
475086 kW (117 hp)
470060 kW (82 hp)
350074 kW (100 hp)
3500Max. Torque
at min -1190 Nm
3750190 Nm
2000240 Nm
2000power transmission
drive
front-wheel drive
Gearbox, standard
6-speed manual transmission
5-speedmanual transmission
6-speed manual transmission
Gear, optional
-
readings
top speed
160 km / h
138 km / h
155 km / h
Acceleration, 0-100 km / h
14.6 s
Fuel consumption in l / 100 km (combined)
9.8-10.1 S2
10.3 s
7,4-7,7 D 2
CO 2 emissions (combined)
241-244 g / km
247 g / km
197-205 g / km
tank capacity
90 l
emission standard
Euro 3
Euro 4
Euro 3
2.0
2.0 CDTI
2.5 DTI1
2.5 CDTI
Construction period
07 / 2006-08 / 2011
07 / 2006-07 / 2014
07 / 2003-06 / 2006
07 / 2007-03 / 2010
07 / 2006-08 / 2011
Motor characteristics
engine code
F4R 820
M9R 780
G9U 730
G9U 630
engine type
R4 gasolineengine
R4 diesel engine
engine charging
-
turbocharger
capacity
1998 cm³
1995 cm³
2463 cc
Max. Power
at min -186 kW (117 hp)
470066 kW (90 hp)
350084 kW (114 hp)
350099 kW (135 hp)
350084 kW (114 hp)
3500107 kW (146 hp)
3500Max. Torque
at min -1190 Nm
3750240 Nm
1500-2250290 Nm
1600-2250310 Nm
2000320 Nm
1500-2250power transmission
drive
front-wheel drive
Gearbox, standard
6-speed manual transmission
6-speed manual transmission
Gear, optional
-
6-speed automatic transmission
-
6-speed automatic transmission
readings
top speed
160 km / h
145 km / h
160 km / h [160 km / h]
163 km / h
170 km / h [170 km / h]
Acceleration, 0-100 km / h
14.6 s
13.3 s [k. A.]
Fuel consumption in l / 100 km (combined)
10.3 s
6.9-7.9 D
6.9-7.9D
[ 7.6D ]8.6 D
8.7 D
[8.2 D]CO 2 emissions (combined)
247 g / km
180-214 g / km
180-214 g / km [200-213 g / km]
228 g / km
229 g / km [215 g / km]
tank capacity
90 l
emission standard
Euro 4
Euro 4/5 3
Euro 3
Euro 4
[] Values in square brackets refer to Easytronic ( automated 6-speed manual transmission )
1 As of 01/2004, the names of diesel variants were renamed CDTI
2 Super (S), Diesel (D)
3 Euro 4 07 / 2006-11 / 2011, Euro 5 12 / 2010-07 / 2014, occasionally both versions available
Note:
All engines and full specifications available for registered users© Motor-car.net
Service
-
Maintenance
Service Intervals: Inspection: after 24 months or every 30,000 kmNote:
All engines and full specifications available for registered users© Motor-car.net
Manuals

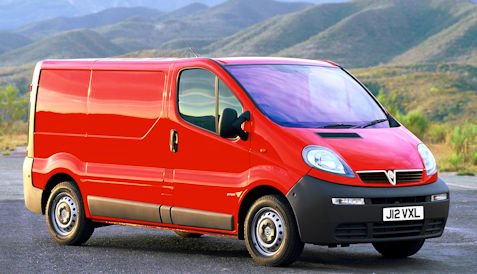

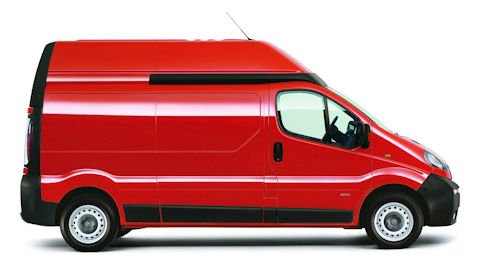

Vauxhall Opel Vivaro A
 |
|
|
Production period: |
2001 to 2014 |
|
designs: |
Panel van , flatbed ,minibus |
|
Engines: |
Gasoline engines : 2.0 liters |
|
Length: |
4782-5182 mm |
|
Width: |
1870-1980 mm |
|
Height: |
1940-2497 mm |
|
Wheelbase: |
3098-3498 mm |
|
Payload: |
0.84-0.985 t |
|
Perm. Total weight: |
2.76-2.96 t |
The Opel Vivaro is a Van ,pickup truck and up to Vivaro B also minibus of the brand Opel , which is manufactured since the beginning of 2001 and is the successor to the Opel Arena . As a minibus, it will be replaced from Vivaro C by the Opel Zafira Life .
In January 2001 began the production of the Vivaro, which replaced the outdated arena. Due to operational delays the delivery of the vehicles took place in 2001. until September
Like the Movano , the Vivaro is a joint product of Opel and Renault - Nissan . His sister models are Renault Trafic and Nissan Primastar . After the re-launch of the Renault Trafic II in the summer of 2001, both this and the Vivaro were voted Van of the Year 2002.
The production sites in England, where the car under the name Vauxhall Vivaro ran off the line, were Luton and Ellesmere Port .
In July 2006 , the Vivaro was a slight facelift subjected in which also the entire engine range has been replaced. In the version as minibus depending on the variant, the additional designations "Combi", "Tour" or "Life".
In July 2014, the production of the Vivaro A. ended
|
