Vauxhall Opel Astra H
|2004 to 2010|
|Also called||Chevrolet Astra|
Opel Astra Classic III (Poland)
Opel Astra Family (Russia)
|Production||2004–2014 (Opel), ongoing in Russia|
2007–2011 (Chevrolet Vectra)
Brazil: São Caetano do Sul (GM do Brasil)
Egypt: 6th of October City (GME)
Russia: St. Petersburg
United Kingdom: Ellesmere Port
|Body and chassis|
|Body style||3-door hatchback (GTC)|
4-door sedan / saloon
5-door wagon / estate
2-door convertible (TwinTop)
3-door sedan delivery (panel van)
|Related||Opel Zafira B|
|Engine||1.4 L Z14XEL I4 (petrol)|
1.4 L Z14XEP I4 (petrol)
1.6 L Z16XEP I4(petrol)
1.6 L Family I I4 (turbocharged petrol)
1.8 L Z18XE I4 (petrol)
2.0 L Z20LEL I4 (turbochargedpetrol)
2.0 L Z20LER I4 (turbocharged petrol)
2.0 L Z20LEH I4 (turbocharged petrol)
2.2 L Z22SE I4 (Australia)
1.3 L CDTI Diesel I4
1.7 L CDTI Diesel I4
1.9 L CDTI Diesel I4
2.0 L Flexpower I4 (Brazil)
2.4 L Flexpower I4 (Brazil)
|Transmission||5-speed F17 manual|
4-speed Aisin 60-40LE automatic
|Wheelbase||Hatches & TwinTop: 2,614 mm (102.9 in)|
Sedan & Wagon: 2,703 mm (106.4 in)
|Length||5-door hatch: 4,249 mm (167.3 in)|
3-door GTC: 4,288 mm (168.8 in)
Sedan: 4,587 mm (180.6 in)
Wagon: 4,515 mm (177.8 in)
TwinTop: 4,476 mm (176.2 in)
|Width||1,753 mm (69.0 in)|
TwinTop: 1,759 mm (69.3 in)
|Height||5-door hatch: 1,467 mm (57.8 in)|
3-door GTC: 1,415 mm (55.7 in)
Sedan: 1,458 mm (57.4 in)
Wagon: 1,500 mm (59.1 in)
TwinTop: 1,411 mm (55.6 in)
|Successor||Chevrolet Cruze (Brazil and Mexico)|
Buick Verano (Saturn Astra)
Opel Combo (Astravan)
Opel Cascada (TwinTop)

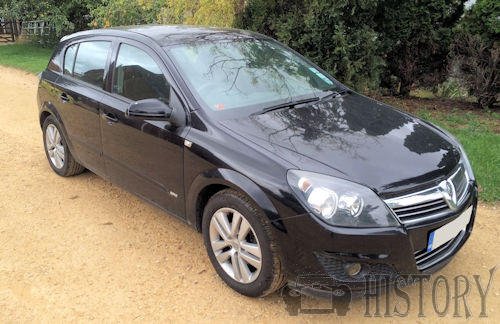

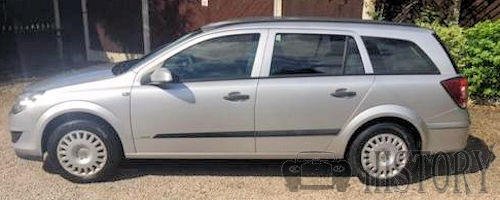

The Astra H was launched in March 2004 as a five-door hatchback, whilst a five-door estate launched late 2004 and a sporty three-door hatchback, designated the GTC (Gran Tourismo Compact) for European markets, Sport Hatch in the UK and the Coupé in Australia, launched in 2005. The GTC has the option of a windscreen called "panoramic windscreen" (unique for a production car at the time of its launch) which extends into the roof area. Based on the updated T-platform, its size was increased compared to the previous version. Production came until the end of 2009, excepting the TwinTop which continued to be manufactured until November 2010.
The aging Vectra B was replaced in Brazil with a sedan version of the Astra H, named Chevrolet Vectra, until it was replaced by the Chevrolet Cruze in 2009. The model was matched with the others models offered in Brazil. This version was offered as an Opel in some Eurasian markets in 2006, following a debut at the international auto show in Istanbul, Turkey, including Ireland in 2008. This was manufactured in Gliwice, Poland. Also in 2006, the Astravan, a 3-door van variant of the estate, was launched. In September 2007, a version of the 5-door Astra was launched in Brazil, marketed as Chevrolet Vectra GT to differentiate from the already existing Astra, which was replaced by the Chevrolet Cruze hatchback in 2011.
GM Russia launched SKD assembly of Astra on a temporary production site near Saint Petersburg in February 2008, with a potential capacity of 25,000 vehicles annually.
The Chevrolet Astra was withdrawn from Mexico in 2008 as a result of withdrawal of Opel products from the brand, replaced by the Chevrolet Cruze sedan for the 2010 model year.
A first for any major European car is the availability of digital radio on some versions of the new Astra, while for the Astra product class first are electronically controlled chasiss (IDS+) and AFL (Adaptive Forward Lighting).
The Opel Astra Classic III from Bochum was offered for sale as 5-door hatchback and estate in some Eastern European markets
At the end of 2012, the Astravan was replaced by the new Opel Combo D (whom the Astra H had already ended).
During 2005, Opel introduced the OPC version of the Astra GTC (sold as the Astra VXR in the UK) which is powered by an updated version of the 2.0 L turbo Family II engine (Z20 LEH) producing 240 PS (177 kW, 237 bhp) and 320 N·m (236 lb·ft) of torque. Standard features of the OPC version include sports bodykit and recaro interior, a six-speed manual gearbox, xenon headlamps and 18-inch alloy wheels amongst others.
Vauxhall Opel Astra H VXR side view
This vehicle was sold until late 2009 in Australia and New Zealand by Holden Special Vehicles as the HSV VXR. HSV VXRs are sold as standard with full leather trim, climate control, 6 disc CD and 19-inch alloy wheels. HSV VXRs were badged as per the UK Vauxhall Spec models, but without the usual rear boot badge. Inside the Opel Blitz appears on the steering wheel with an OPC dashboard. The Astra OPC was also sold as the Chevrolet Astra OPC in Chile.
In 2006, the Astra TwinTop arrived. The "TwinTop" name also applies to the smaller Tigra refers to a folding hard-top coupé version of the car. In the case of the Astra, the TwinTop has a three-part folding metal roof which sits in the upper half of the boot space, leaving considerable luggage space below it. Still marketed as a four-seater, the rear seating space is smaller than a "normal" Astra. The TwinTop was available in three trim levels with a range of engines in each, including a 200 PS (147 kW; 197 hp) 2.0 L turbo and the 1.9 CDTI diesel in 150 PS (110 kW; 148 hp) form. The TwinTop was discontinued in November 2010 along with the 3-door GTC.
Stock Car Brazil
In Brazil, Chevrolet Vectra (Astra H) substituted the Chevrolet Astra on Stock Car. The V8 is still the same, apart that now they use Ethanol instead of Petrol.
The Saturn Astra debuted during the 2007 Chicago Auto Show. Intended to replace the Ion as the brand's smallest model, the Saturn Astra was a captive import built in Antwerp, Belgium. It was offered only in three and five-door hatchback body styles, with sales starting on 2 January 2008. Only one engine was available: a 1.8 L U18XER inline-4-cylinder gasoline engine with variable-valve technology producing 138 hp (103 kW) and with an available five-speed manual transmission or a four-speed automatic transmission.
The Astra XE was available only on the five-door hatchback bodystyle version; this was the basic trim level for the Saturn Astra. The upmarket XR trim level was available in both the three and five-door hatchback. 17-inch (430 mm) alloy wheels were standard with the XR, while the XE made do with steel wheels and plastic covers.
In Insurance Institute for Highway Safety (IIHS) crash tests the Astra earned a Good overall score in frontal impacts, while in side impacts it received a Marginal overall rating. Front and rear head curtain airbags and front seat-mounted torso airbags were standard.
General Motors predicted sales of between 30,000–40,000 vehicles a year in the United States. Sales were slow, due initially to a large glut of unsold Ions and later the uncertainty surrounding the Saturn brand's future. In 2008 only 11,968 were sold in the US and in 2009 this fell to 6,298.
With a large number of unsold cars remaining on dealer lots, GM announced it would end import of the Astra. In June 2009, GM announced its intention to sell the Saturn Corporation to Penske Automotive Group but this never was concluded and in 2010 General Motors discontinued the Saturn brand.
Engines were available with 5 and 6 speed manual transmission, Easytronic semi-automatic gearbox with 5 speed, and also 4 and 6 speed automatic transmission. In the beginning there were petrols 1.4 90 PS, 1.6 105 PS, 1.8 125 PS and new 2.0 Turbo engine with two versions: 170 PS and 200 PS.
2.0T 16V VXR Performance
|Top Speed||152 mph|
|0-60 mph||6.2 secs|
|Torque||320 Nm, 236 ft-lb|
|CO2 Emissions||221 g/km|
|Euro Emissions Standard||4|
|Miles Per Tank||343 miles|
Diesel lineup were 1.3 CDTI with 90 PS, 1.7 CDTI with 80 PS, 100 PS, and 1.9 CDTI engines with 120 and 150 PS. During production some engine got more power like 1.6, 1.8, 1.7, 1.9 and 2.0 Turbo with 240 PS was introduced in 2005 in OPC/VXR version. 1.3 CDTI 90 PS was introduced in 2005 and he replaces 1.7 CDTI with 80 PS.
After restyle at end of 2006 / beginning of 2007, new engines were introduced: 1.6 Turbo engine with 180 PS which replace 2.0 Turbo with 170, and 1.7 CDTI with 125 PS.
Petrol engine Model Engine Displacement Power Torque Note CO2 emission (g/km) Years 1.4 VVT I4 1398 cc 90 PS (66 kW; 89 hp) at 6000 rpm 125 N·m (92 lb·ft) at 4000 rpm 129 100 PS (74 kW; 99 hp) at 6000 rpm 1.6 VVT 1598 cc 105 PS (77 kW; 104 hp) at 6000 rpm 150 N·m (111 lb·ft) at 4000 rpm 158 2004–'07 115 PS (85 kW; 113 hp) at 5500 rpm 155 N·m (114 lb·ft) at 4000 rpm 155 2006– 1.6 Turbo 180 PS (132 kW; 178 hp) at 5500 rpm 230 N·m (170 lb·ft) at 2200–5400 rpm 168 2006–'09 1.8 VVT 1796 cc 125 PS (92 kW; 123 hp) at 6000 rpm 170 N·m (125 lb·ft) at 4000 rpm 187 2004–'06 140 PS (103 kW; 138 hp) at 6000 rpm 175 N·m (129 lb·ft) at 4000 rpm 169 2005–'09 2.0 Turbo 1998 cc 170 PS (125 kW; 168 hp) at 5400 rpm 250 N·m (184 lb·ft) at 1950 rpm 218 2004–'06 200 PS (147 kW; 197 hp) at 5400 rpm 262 N·m (193 lb·ft) at 4200 rpm 226 2004–'10 240 PS (177 kW; 237 hp) at 6000 rpm 320 N·m (236 lb·ft) at 2400 rpm OPC/VXR 223 2005–'10 Diesel engine Model Engine Displacement Power Torque Note CO2 emission (g/km) Years 1.3 CDTI I4 1248 cc 90 PS (66 kW; 89 hp) at 3800 rpm 200 N·m (148 lb·ft) at 1700–2500 rpm 109 2005–'09 1.7 CDTI 1686 cc 80 PS (59 kW; 79 hp) at 3800 rpm 170 N·m (125 lb·ft) at 1700–2500 rpm 119 2004–'05 100 PS (74 kW; 99 hp) at 4000 rpm 240 N·m (177 lb·ft) at 2300 rpm 138 2004–'10 110 PS (81 kW; 108 hp) at 4000 rpm 260 N·m (192 lb·ft) at 2300 rpm 138 2007– 125 PS (92 kW; 123 hp) at 4000 rpm 280 N·m (207 lb·ft) at 2300 rpm 119 2007–'09 1.9 CDTI 1910 cc 100 PS (74 kW; 99 hp) at 4000 rpm 260 N·m (192 lb·ft) at 1750–3250 rpm 154 2005–'09 120 PS (88 kW; 118 hp) at 4000 rpm 280 N·m (207 lb·ft) at 1750–3250 rpm 159 2004–'09 150 PS (110 kW; 148 hp) at 4000 rpm 320 N·m (236 lb·ft) at 2000 rpm 159 2004–'09 Options: Equipment included on some trim levels
- Air conditioning
- Alloy wheels
- Audio remote
- Body coloured bumpers
- CD Multichanger
- Climate control
- Cloth seat trim
- Cruise control
- Electric driver`s seat
- Electric mirrors
- Electric passenger`s seat
- Front fog lights
- Heated mirrors
- Heated seats
- Leather seat trim
- Lumbar support
- Partial leather seat trim
- Rear electric windows
- Roof rails
- Sports seats
- Steel wheels
- Traction control
