Nissan Laurel 4th generation (C31)
![]() | |
Production period: | 1980-1984 |
Body versions : | Saloon |
Engines: | Gasoline : 1.8-2.8 liters (77-107 kW) |
Length: | 4635 mm |
Width: | 1690 mm |
Height: | 1360 mm |
Wheelbase : | 2670 mm |
Curb weight : | 1245 kg |

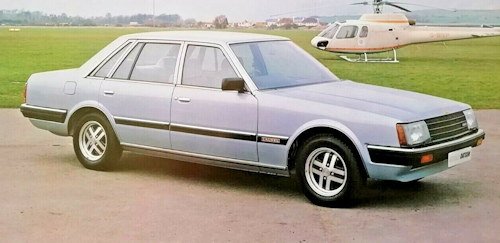

The Nissan Laurel 4th generation (C31) introduced in November 1980
History
The Laurel 4th generation debuted in Europe as a low-cost six-cylinder automobile to mixed reviews. The new body, which had three side windows and a bevelled front end, resembled the Opel Senator. The 1.8-liter four-cylinder remained the base engine, followed by a two-liter four-cylinder, a two-liter six-cylinder (also available as a turbo), a 2.4-liter inline six-cylinder, and diesel engines with displacements of 2.0 and 2.8 litres. The coupe was dropped from the lineup, leaving only four-door sedans with or without B-pillars. The Laurel was available with six-cylinder gasoline engines (2 or 2.4 litres, 71 to 83 kW / 96 to 113 horsepower) or a 2.8-liter diesel engine (60 kw / 82 hp) starting in May 1981.
In the fall of 1983 accounted for the two-liter, the performance of the 2.4-liter was raised to 88 kW / 120 hp, at the same time was renamed Nissan Laurel. In combination with the 2.4-liter gasoline engine and the 2.8-liter diesel mandatory higher-quality features including power windows on all four doors, central locking, power steering, headlight washer and high quality velor seat cushions supplied. For a surcharge there was, also for the diesel, a three-stage (from 1983: 4-speed) automatic transmission and an electric steel sunroof and Metalliclackierung. Alloy wheels and air conditioning could be retrofitted on request from the dealer with original parts from Japan, where it already had this equipment from the factory.
The performance and fuel consumption of the C31 were at about 172 km / h and 12.5 l / 100 km of regular gasoline in the 2.4-liter 6-cylinder gasoline engine with 5-speed manual transmission (3-speed automatic: 165 km / h). h, 13.5 l / 100 km, 4-speed automatic: 165 km / h, at about 12.8 l / 100 km). The 2.8-liter diesel with 5-speed manual transmission reached 160 km / h at approximately 9.0 l / 100 km diesel fuel (3-speed automatic: 155 km / h at about 9.5 l / 100 km, with the later available 4-speed automatic transmission: 155 km / h at about 9.2 l / 100 km) The 4-speed automatic transmission brought a significant reduction in noise at lower fuel consumption in both gasoline and diesel Engine speeds with it, which improved the comfort noticeably.The top version of the Laurel made 114 kW / 155 hp.
Description
Technical
-
Nissan Laurel 4th gen Technical details and specifications (1980-1984)
Nissan Laurel 4th gen engineering features
Full-concealed wiper
Improved visibility
Halogen headlamps
Shock-absorbing front bumper
Directional and braking stability
Brakes 9-inch brake booster
Electric remote control door mirror
Collapsible steering
Strengthened steering gear
Ventilated front disc brakes
Child-proof door Jocks
3-point ELR seat beltEngine CA18S
No. of cylinders 4/OHC
Capacity 1809 cc
Firing order 1-3-4-2
Compression ratio 8,8:1
Suitable for unleaded petrol Yes
Minimum octane rating 98/95 RON
Ignition system Type SZ/TSZ-i CB/Trans-i
Fuel system Make Nikki Type 21E304 Carb-2V
Ignition coil Make Hitachi Type C6R-206
Distributor Make Hitachi part No.D408-57
Fuel system pressure 0,17-0,24 bar
Compression pressure 9,1-12,0 bar
Radiator cap pressure 0,88 bar
Thermostat opens 82°C
Starter motor Make Hitachi Type S114-320
Minimum starting voltage 11,0V
Maximum cranking amps 162-198A
Alternator Make Hitachi Type LR160-104
Voltage regulator Type TL1Z-57G
Regulated voltage 14,4-15,1V© Motor car History
-
Nissan Laurel 4th gen Service Guide (1980-1984)
Engine CA18S
Spark plugs Electrode gap 0,8-0,9mm
Spark plugs Tighten 15-20 Nm
Spark plugs Original equipment NGK Type BPR6ES
Spark plugs Make Bosch Type WR7DC
Spark plugs Make Champion Type RN9YCC
Distributor Contact breaker gap 0,5 mm
Distributor Dwell angle 49-55° (54-61%)
Valve clearance -INLET 0,30mm check hot
Valve clearance -EXHAUST 0,30mm check hot
Drive belt size - alternator 9,5x875mm
Drive belt tension - alternator 11-14mm
Engine oil grade - normal/moderate climate 10W/30 SAE or 20W/50 SAE
Engine oil chnge with filter 3,9litres
Cooling system 7,3 litresTightening torques Cylinder head
Stage 1 Tighten 30 Nm
Stage 2 Tighten 50 Nm
Stage 3 Tighten 69-78 Nm
Stage 4 Tighten Run engine 15 minutes
Stage 5 Tighten 69-78 Nm
