Morris Sixteen
![]() | |
Make: | Morris |
Production period: | 1935 to 1937 |
Class : | Motor car |
Body versions : | Saloon,Coupe |
Engines: | Gasoline : 2.1 liters |
Length: | 4801 mm |
Width: | 1778 mm |
Wheelbase : | 2972 mm |
Curb weight : | 1435 kg |

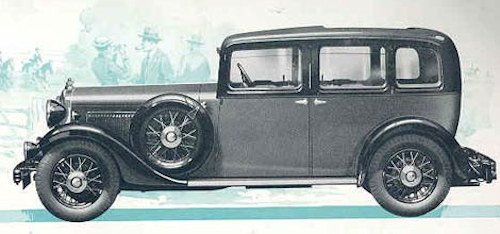

The Morris Sixteen was a car of which Morris Motors built in 1935 untill 1937 as a successor to the Oxford 6 .
History
The Morris Sixteen known as Morris Big Six comprised the Morris Sixteen, Eighteens and Morris Twenty and Twenty five with same body with diffrent trim and engines as the Twenty. This successor was initially also sold as Oxford 6 , later renamed Oxford 16 , and finally the name Oxford fell away altogether.
The Morris 16 was for sale from £250 less than the Twenty and Twenty five ,It had, like its predecessor, a side-mounted six-cylinder in-line engine with 2062 cc capacity and 15.9 hp, and fitted with a 3 speed gearbox and a semi-elliptic leaf-spring suspension set up . The vehicles were available as four-door sedans and 2 door special coupe body. Already in the same year the appearance of the model Morris Eighteen with a stronger engine was also available.
Description
Technical
-
Morris Sixteen Technical details and specifications (1934-1935)
ENGINE:
No. of Cylinders - 6
Rating - 15.9 h.p.
cubic capacity - 2062 c.c.
B.H.P - 48 max
Bore -65.5 mm.
Stroke - 102 mm.
Compresion Ratio -5.9—1
Cooling System - water impeller and Fan
Firing order - 1-5-3-6-2-4
Exhaust Valve Diameter -30 mm.
Inlet Valve Diameter -30 mm.BRAKES:
Brake Drum Diameter -12 inSTEERING:
Steering Box Ratio -9.46—1DIMENSIONS AND WEIGHT:
Overall Length -15ft. 7in.
Overall Width -5ft. 10in.
Track - 4ft. 6in.
Turning Circle - 43 ft
Wheel Base - 9ft. 9in.
Minimum Ground Clearance - 6.5in.
Weight (average) -27cwtELECTRICAL EQUIPMENT:
Starter Ratio - 9.46:1
Battery -12 V. 60 A.H. Lucas© Motor car History
-
Morris Sixteen Maintenance and Service Guide (1934-1935)
Firing order - 1-5-3-6-2-4
Plug Make -Champion L.10
Tyre Size -3.62in. x17in.
Tyre Pressure, Front - 27psi
Tyre Pressure, Rear - 30psi
Sump oil — - 17 pints
Gear Box oil - 2 pints
Rear Axle oil - 2 pints
Radiator water -25 pints
Petrol—galls - 10 pints© Motor car History
