MG Magnette Mark IV

Production	1961 to 1968
Class	Motor Car
Body	4 door saloon
Engine	1.6 L B-Series I4
Wheel base	100.25 in, 2546 mm
Length	177.95 in, 4520 mm
Width	63.00 in, 1600 mm
Height	58.00 in, 1473 mm
Dry weight	2452 1b, 1112 kg

The MG Magnette Mark IV was a car built By BMC under the MG Brand name in the 1960s

History

The previous  Mark III was updated in 1961 as the Mark IV the car now had a longer wheelbase of 100 inches and wider track with  large wrap-round bumpers front and rear with over-riders  giving the car a distribution of weight 54.6 % to front axle, and 45.4 % at rear axle. From the outside not much had change, the Mark IV was almost identical to the Mark III shape, but less pointed tailfins bring the car into the 60s fashion. built with the same British Motor Corporation (BMC) ADO38 platform with the mono-construction 4-door saloon body that incorporates the body shell. floor, bulkhead, frame members and Wing valances as the also made Austin A60 Cambridge, MG Magnette Mark IV, Morris Oxford Series VI, Riley 4/72/Comet, and Wolseley 16/60 that came  fitted with luxury features such as deep, well-sprung upholstery with foam-rubber seat cushions; leather upholstery with leather-cloth on non-wearing parts; walnut-veneer fascia and door cappings.large luggage boot (trunk),with  19 cu.ft capacity, with counterbalanced lid the spare wheel is also stowed in special carrier below luggage boot.

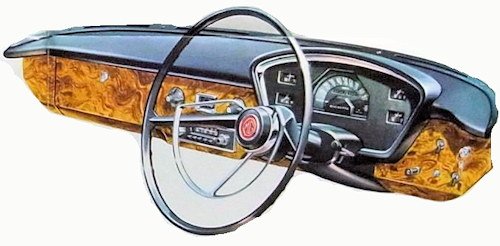

Inside a Speedometer and oil gauge; ammeter, engine temperature a Lighting panel combined windshield wiper switch: mixture indicator control on steering-column Safety glass laminated glass pile carpets with under-felt; 4 ashtrays; 2 sun visors; door fixed handles and push-button lock release: front seats vidual adjustment; folding arm-rest in rear seat: arm-rests box in fascia with locking lid; sponge-rubber parcel tray ; provision for fitting H.M.V. radio.

A larger 1.6 L (1622 cc) 4 cylinder B-Series engine, with capacity increased by increasing the bore to 76.2 mm, was fitted With traditional rear wheel drive and mechanical 4 speed gear box with synchromesh gears on  2nd, 3rd, 4th, also an Borg-Warner Automatic transmission was offered as an option. Suspension at the front independent, wishbones,the rear suspension rigid axle, semi-elliptic leaf-springs with lever dampers andanti-roll bars front and rear. For stoping power 9 in. (22.9 cm.) diameter brake drums front and rear on 14" Ventilated disc-type wheels with 4-stud fixing and Dunlop 590-14 tubeless tyres.

PERFORMANCE:

• Engine capacity: 99.20 cu in, 1622 cu cm
• Fuel consumption: 28.2 m imp gal, 23.5 m US gal
• Max speed: 86 mph, 138.5 km h
• Max power (SAE): 71 hp at 5000 rpm
• Max torque (SAE): 89 1b ft, 12.3 kgm at 2500 rpm
• Max number of engine rpm: 5700
• Specific power: 43.8 hp/l
• Power-weight ratio: 34.6 lb/hp, 15.7 kg/hp
• Acceleration: O—50 mph (0—80 km/h) 13.2 sec
• Max speed in 1st gear: 25 mph, 40.2 km/h; max speed In 2nd gear: 40 mph, 64.4 km/h; max speed in 3rd gear: 62 mph. 99.8 km/h;
  Max speed in 4th gear: 86 mph, 138.5 km/h

Body and inside trim colours : Single colours. Smoke Grey with Blue upholstery and Bluecarpet. Tartan Red with Grey upholstery and Red carpet. Rose TaupeTerracotta upholstery and Rose Taupe carpet. Connaught Green Green upholstery and Green carpet. Old English White with Terracotta upholsteryand Rose Taupe carpet. Black with Grey upholstery and Red carpet.Terracotta upholstery and Rose Taupe carpet.Duotone colours: Connaught Green and Old English Rose Taupe Old English White. Smoke Grey and Old English White. Old White and Sandy Beige.The first colour is always the top colour, and the upholstery and carpet are the same as those available for the top colour in the single-tone.

 14,320 Mark IVs were built up to 1968 the last sold by 1969. the Magnette was finally discontinued without a successor.
