Lancia Flaminia 3C 2.5L GT Coupé
 |
|
| Overview | |
|---|---|
| Manufacturer | Lancia Turin, Italy |
| Production | 1962 to 1963 |
| Class | Sports car |
| Layout | Front engine, rear drive |
| Engine | Six Cylinder 2.5L |
| Max Speed | 118.6 mph, 191 km h |
| Transmission | Four-speed manual |
| wheel base | 99.21 in, 2520 mm |
| overall length | 177.17 in, 4500 mm |
| overall width | 65.35 in, 1660 mm |
| overall height | 51.42 in, 1305 mm |

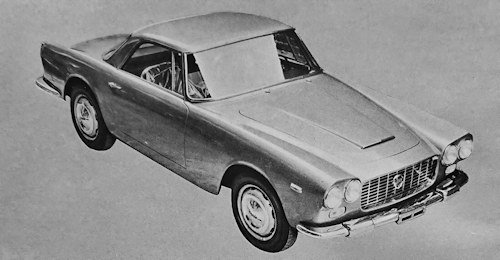

The Lancia Flaminia 3C GT Coupé 2.5-liter is an Italian sports car built only in the early 1960s.
History
In, 1962 Lancia presented new versions of the Flaminia sportive Touring and Zagato, with now three powerful Weber double-barrel carburettors. Deliveries to customers begin on February 1, 1962 the Flaminia 3C GT Coupé remains in production until the release of the new version with a 2.8-liter engine (September 1963) but appears in the Lancia price lists until October 1968, evidently for the disposal of stocks of two-and-a-half-litre engines. It should be noted that in September 1963, at the end of the production of the 2.5-liter Flaminia range, the 3C GT Coupé was joined by a new version with 2 plus 2 seats, generally defined as GTL.
This sporty 2-door coupé with some changes inside to the controls and instrumentation (the tachometer scale, for example, now reaches 6500), improvements in the finishings, the affixing, on the edge of the doors, of a light-warning light that signals the opening and the addition of two rear lights for the reverse, which are inserted in the centre of the optical unit in place of the reflectors, which in turn are housed in the small space between the optical unit and the boot opening. with split front seats (with adjustable backrest angle) with a so-called “trefoil” shape and folding to facilitate access to the rear compartment (without seats). with three-spoke steering wheel with central button for horn. at the rear trunk (boot) illuminated compartment; spare wheel under the loading floor (covered by a lid and a rubber mat).controls under the dashboard: two levers for control and adjustment of the ventilation and heating on the left side, lever for locking the bonnet, parking brake lever, trip odometer reset, clock adjustment, starter, heater activation lever, levers for control and adjustment of ventilation and side heating right, speed change control.
controls on the dashboard : windshield washer sprayer, light switch lever and direction indicator operation, indicator light and direction indicator lights, windscreen wiper, ashtray, cigarette lighter, lockable storage drawer, fan, passenger compartment lighting, instrument lighting (with adjustable intensity), ignition position lights and headlamps, service insertion key. joined in two circular instruments; the instrument on the left includes the speedometer with a scale up to 220 Km. per hour, the petrol level indicator, the oil pressure, water temperature, oil temperature indicators and the two odometers (total and partial); the instrument on the right includes the tachometer (graduated up to 6500 rpm) and the clock
The new power supply system, which takes place via a needed electric rather than a mechanical pump, determines a significant increase in power maximum, which goes up from 119 to 140 hp, and of the torque, which goes from 19 to 20.7 mkg. Other changes concern the bridge ratio, which is a little less downgraded (3.615 instead of 3.692), several updates in the electrical system (including a new dynamo and a different type of spark plugs), traction on the rear wheels; clutch, gearbox and differential in a single group, fixed to the frame and arranged at the rear; transmission shaft of tubular type, without intermediate support the distribution of weight ( at max load) was 47% to the front axle,and 53 % at rear axle.The weight increases a lot but the performance is increased with the maximum speed declared by the manufacturer which rises by 11 kilometres per hour, from 180 to 191.
PERFORMANCE:
- max power (CUNA): 140 hp at 5600 rpm
- max torque specific power: 56.9 hp/ l20.7 mkg at 3600 rpm
- Engine Capacity 150.33 cu in, 2458 cu cm;
- Fuel Consumption 21.7 m/imp gal, 18.1 m US gal, 13 1 x 100 km;
- Max Speed 118.6 mph, 191 km h
- max speed in 1st gear: 38.5 mph, 62 km/h; max speed in 2nd gear: 57.8 mph, 93 km/h; max speed in 3rd gear: 87.0 mph, 140 km/h
- max speed in 4th gear: 118.6 mph, 191 km/h
- power-weight ratio: 20.5 lb/hp, 9.3 kg/hp
- useful load: 353 1b, 160 kg
- acceleration (max load): 0 —50 mph (O —80 km/h) 7 sec
- speed in direct drive at 1000 rpm: 21.0 mph, 33.9 km/h.
built from January 1962 to September 1963 (the 3C GT Coupé with 2.5-liter engine appears in the price lists until October 1968, after which it disappears permanently) The model Types as 824.10, 2-door, 2-seat, LHD coupe and Type 824.11, 2-door, 2-seat, right-hand drive coupe type 824.10 / 824.11 (together with 824.13): from 3001 to 3856.The total produced 682 (of which 672 left-hand drive and 10 right-hand drive); it should be noted that the other 174 units, which are missing to cover the range from 3001 to 3856 (856 specimens), were of the Sport type (Zagato) and were marked with the initials 824.13.
Technical
-
Lancia Flaminia 3C GT 2.5L Coupé Technical details and specifications (1962-1963)
Engine
Engine position : front longitudinal
Engine type : 6 cylinders in V (60 °) type "823.10"; monobloc
Displacement : total 2457.98 cm³
Bore 80.00 mm-stroke 81.50 mm
firing order: 1-4-3-6-5-2
cylinder numbering: on the left 1-3-5, on the right 2-4-6, starting from the fan
cylinder body in aluminum with cast iron liners
pistons in aluminum alloy, with three rings (two sealing rings and one oil scraper)
cylinder head in aluminum with valve seats
steel connecting rods with bronze piston pin bushings
Lubrication forced, with gear pump and pressure relief valve; "cartridge"
crankshaft rotating on 4 supports
suspension of the engine group on 4 supports, on double rubber pads
Compression ratio : 9.00: 1
camshaft, in the crankcase, in a central position controlled by chain with automatic hydraulic tensioner
overhead valves (two per cylinder) inclined to each other, operated by push rods and rocker arms
hemispherical combustion chambers
Fuel system : 1 Weber 35 DCNL 3 double-barrel inverted carburettor with starter and 2 Weber 35 DCLN 2 double-barrel inverted carburetors without starter
Bendix type electric pump located on the left side of the luggage compartment
air filter on the carburetor, with filtering element (oil bath filter on request)
Distributor Marelli BZR201A
ignition distributor Marelli S 82 B; fixed advance 6 °, automatic advance 23 °
Cooling water , forced circulation, with centrifugal pump coaxial with the 4-blade auxiliary fansystem is regulated by two thermostats,
Electrical system
12 V - 45 Ah battery ( located in the front hood)
dynamo Marelli DN 62 D of 300 W
electric starter motor Marelli MT 32 LA-0,8 / 12 D9
three-core controller Marelli IR 50 EGearbox
Drive : rear
Clutch : dry single plate
Gearbox : in block with clutch and 4-speed differential + reverse
all forward gears are synchronized
ratios: I = 3.09: 1; II = 2.05: 1; III = 1.41: 1; IV = 1: 1; RM = 3.35: 1
final reduction ratio, with Hypoid 13/47 bevel gear (3.615: 1)Dimensions and weights
wheel base: 99.21 in, 2520 mm
front track: 53.90 in, 1368 mm
rear track: 53.94 in, 1370 mm
overall length: 177.17 in, 4500 mm
overall width: 65.35 in, 1660 mm
overall height: 51.42 in, 1305 mm
ground clearance: 4.33 in, 110 mm
dry weight: 2888 1b, 1310 kg
distribution of weight (max load): 470/0 front axle, 53 0/0rear axle
Chassis
type "Superleggera" patented by Touring bodywork , with aluminum panels fixed on a light steel base structureSuspension
front: with independent wheels with transversal quadrilateral, helical springs and stabilizer bar; double-acting
rear: telescopic hydraulic shock absorbers: semi-independent wheels (De Dion), by means of an axle with transverse reaction bar and stabilizer bar, longitudinal leaf springs and double-acting telescopic hydraulic shock absorbersBrakes
front: Dunlop disc / rear: Dunlop disc, with vacuum brake booster and independent front and rear wheel circuits
disc diameter 29.2 cm at the front and 30.5 cm at the rear
braking surface: total 32.12 sq in, 207.20 sq cm.
mechanical parking brake acting on the rear axle (the handbrake control handle is positioned under the dashboard)Wheels
Tires 165x400;
Rims : disc, in pressed steel, 185x400
width of rims: 7.2"Steering
globoidal screw and roller
ball joints (lubricated only for assembly)
steering wheel can be moved forward or backward by 40 mm, with locking sleeve
turning radius (between walls): 18 ft. 5.5 mTechnical characteristics of the Lancia Flaminia 3C GT Coupé
Configuration
Bodywork: coupé
Engine position: front longitudinal
Drive: rear
Dimensions and weights
Overall dimensions (length × width × height in mm): 4500 × 1660 × 1305
Minimum turning diameter:
Wheelbase: 2520 mm
Track: front 1368 - rear 1370 mm
Minimum height from the ground: 110 mm
Total seats: 2
Trunk:
Tank: capacity 57 liters, of which about 7 are reserve; level indicator on the instrument panel of the dashboard
Masses
empty: 1,290 kg / in running order: 1,360 kg
Mechanics
Engine type: 6 cylinders in V (60 °) type "823.10"; monobloc, cylinder body in aluminium with cast iron liners; pistons in aluminium alloy, with three rings (two sealing rings and one oil scraper); cylinder head in aluminium with valve seats; steel connecting rods with bronze piston pin bushings; crankshaft rotating on 4 supports; suspension of the engine group on 4 supports, on double rubber pads. Compression ratio: 9.00: 1
Displacement: (bore 80.00 mm - stroke 81.50 mm); total 2457.98 cm³
Distribution : camshaft, in the crankcase, in a central position (i.e. placed in the corner formed by the two rows of cylinders) controlled by chain with automatic hydraulic tensioner; overhead valves (two per cylinder) inclined to each other, operated by push rods and rocker arms; hemispherical combustion chambers; timing of distribution: a) intake: opening 22 ° before TDC (Top Dead Point), closing 60 ° (66 ° according to some sources) after PMI (Bottom Dead Point): b) exhaust: opening 60 ° (66º second some sources) before PMI, closing: 22 ° after TDC with valve clearance, special for control, 0.4 mm; normal valve clearance with cold engine: inlet 0.20 mm, exhaust 0.30 mm.
Fuel system: 1 Weber 35 DCNL 3 double-barrel inverted carburettor with starter and 2 Weber 35 DCLN 2 double-barrel inverted carburettors without starter; Bendix type electric pump located on the left side of the luggage compartment; adjustment data: diffuser 30 mm, main jet 1.30 mm, minimum jet 0.55, air brake 2.40 mm; air filter on the carburettor, with filtering element (oil bath filter on request); fuel tank located at the rear, under the luggage compartment
Engine performance
Power: 140 hp at 5,600 rpm (measured with the CUNA system, which leads to results similar to those calculated according to the most popular DIN system) / Torque: 20.7 mkg at 3600 rpm
Ignition: distributor; Marelli BZR201A reel; ignition distributor Marelli S 82 B; fixed advance 6 °, automatic advance 23 ° more than the fixed advance; firing order: 1-4-3-6-5-2; cylinder numbering: on the left 1-3-5, on the right 2-4-6, starting from the fan; Marelli CW 6 SL spark plugs; distance between the electrodes of the spark plugs 0.5-0.6 mm; distributor contacts opening mm 0.42-0.48 (0.37-0.43 according to some sources)
Electrical system: 12 V - 45 Ah battery (located in the front hood); dynamo Marelli DN 62 D of 300 W; electric starter motor Marelli MT 32 LA-0,8 / 12 D9; three-core controller Marelli IR 50 E
Clutch: dry single plate; pedal travel 20-25 mm; to adjust the pedal stroke, the rear fork of the control rod must be rotated
Gearbox: in block with clutch and 4-speed differential + reverse; all forward gears are silent and synchronized; ratios: I = 3.09: 1; II = 2.05: 1; III = 1.41: 1; IV = 1: 1; RM = 3.35: 1; central control lever, joystick; powertrain oil capacity (gearbox-differential) 4.10 liters (equal to 3.70 kg)
Chassis
Car body
type "Superleggera" patented by Touring bodywork, with aluminium panels fixed on a light steel base structure
Steering
with globoidal screw and roller; guide box oil capacity 0.31 liters (0.28 kg); oil introduction through the cap on the box lid (the level is normal when the oil covers the globoidal screw); ball joints (lubricated only for assembly); pressure grease nipple on the return pin; starting from the summer of 1960 a telescopic hydraulic shock absorber was inserted in the wheelhouse; the driving position is on the left; steering wheel can be moved forward or backward by 40 mm, with locking sleeve
Suspensions
front: with independent wheels with transversal quadrilateral, helical springs and stabilizer bar; double-acting / rear telescopic hydraulic shock absorbers: semi-independent wheels (De Dion scheme), by means of an axle with transverse reaction bar and stabilizer bar, longitudinal leaf springs and double-acting telescopic hydraulic shock absorbers
Brakes
front: Dunlop disc / rear: Dunlop disc, with vacuum brake booster and independent front and rear wheel circuits, disc diameter 29.2 cm at the front and 30.5 cm at the rear; mechanical parking brake acting on the rear axle (the handbrake control handle is positioned under the dashboard); the front brakes are normally mounted on the wheels, the rear ones are mounted at the exit from the clutch-gearbox-differential unit
Tires
measures 165x400; inflation pressures (cold): 2.10 kg / cm² at the front and 2.50 kg / cm² at the rear / Rims: disc, in pressed steel, 185x400
Performance
Speed: 191 km / h; maximum speeds in the various gears: 62 km / h in I, 93 in II, 140 in III, 191 in IV: in reverse 57 km / h
Acceleration:
Consumption
calculated according to CUNA standards (in 4th gear, at a constant speed equal to 2 / 3-3 / 4 of the maximum speed, i.e., in this case, at about 130-140 km / h) 13 liters of super fuel (with a minimum NO of 92) every 100 km.
Lubrication
forced, with gear pump and pressure relief valve; "cartridge" type filter located on the left side of the engine, mesh filter in the sucker; circuit capacity approx. 6.60 liters (equal to 6.0 kg), including filters and pipes; oil cooler with radiator on the left side of the water cooler
Cooling
water, forced circulation, with centrifugal pump coaxial with the 4-blade auxiliary fan, driven by a V-belt; the system is regulated by two thermostats, one on the pipes and the other which controls the shutter to the radiator; circuit capacity (radiator and engine) 10 liters (including 1 litre of heaters); introduction of water by opening the cap on the radiator; water drainage by means of a tap located on the right side of the engine
Transmission
traction on the rear wheels; clutch, gearbox and differential in a single group, fixed to the frame and arranged at the rear; transmission shaft of tubular type, without intermediate support.
Report to the bridge
final reduction ratio, with Hypoid 13/47 bevel gear (3.615: 1).
Bodywork, furnishings and accessories
bodywork: 2-door coupé (doors hinged at the front, that is, with opening against the wind); three-spoke steering wheel.
seats : split front seats (with adjustable backrest angle) with a so-called “trefoil” shape and folding to facilitate access to the rear compartment (without seats).
engine compartment : illuminated.
trunk : illuminated compartment; spare wheel under the loading floor (covered by a lid and a rubber mat).
steering wheel controls : central button for electro-acoustic warning.
pedal controls : brake, clutch and accelerator (the latter of the sole type); all three pedals are rubber coated.
controls under the dashboard: two levers for control and adjustment of the ventilation and heating on the left side, lever for locking the bonnet, parking brake lever, trip odometer reset, clock adjustment, starter, heater activation lever, levers for control and adjustment of ventilation and side heating right, speed change control.
controls on the dashboard : windshield washer sprayer, light switch lever and direction indicator operation, indicator light and direction indicator lights, windscreen wiper, ashtray, cigarette lighter, lockable storage drawer, fan, passenger compartment lighting, instrument lighting (with adjustable intensity), ignition position lights and headlamps, service insertion key.
instrumentation: joined in two circular instruments; the instrument on the left includes the speedometer with a scale up to 220 Km. per hour, the petrol level indicator, the oil pressure, water temperature, oil temperature indicators and the two odometers (total and partial); the instrument on the right includes the tachometer (graduated up to 6500 rpm) and the clockMaximum slopes that can be overcome
in first gear = 39%; in II = 23%; in III = 15%; in IV = 10%.; reverse 40%
Service
-
Lancia Flaminia 3C GT 2.5L Coupé maintenance and Service Guide (1962-1963)
fuel: petrol, 92 Oct
timing intake: opening 22 ° before TDC (Top Dead Point), closing 60 ° after PMI (Bottom Dead Point): exhaust: opening 60 ° before PMI, closing: 22 ° after TDC with valve clearance,
normal valve clearance with cold engine: inlet 0.20 mm, exhaust 0.30 mm.
carburettor adjustment: diffuser 30 mm, main jet 1.30 mm, minimum jet 0.55, air brake 2.40 mm
Marelli CW 6 SL spark plugs
spark plugs electrodes gap 0.5-0.6 mm
distributor contacts opening mm 0.42-0.48
Oil type filter located on the left side of the engine, mesh filter
Oil capacity approx. 6.60 liters (equal to 6.0 kg) SAE 20W-30 (winter) 30-40 (summer), change every 1900 miles, 3000 km
powertrain oil capacity (gearbox-differential) 4.10 liters (equal to 3.70 kg) change every 6000 miles, 9000 km
Steering box oil SAE 90 capacity 0.31 liters (0.28 kg); oil introduction through the cap on the box lid
greasing: every 1900 miles, 3000 km, 17 points
Cooling capacity (radiator and engine) 10 liters (including 1 liter of heaters);
Cooling location cap on the radiator; water drainage by means of a tap located on the right side of the engine
Clutch :pedal travel 20-25 mm; to adjust the pedal stroke, the rear fork of the control rod must be rotated
fuel tank located at the rear, under the luggage compartment
Tank : capacity 57 liters, of which about 7 are reserve; level indicator on the instrument panel of the dashboard
Tires 165x400; inflation pressures (cold): 2.10 kg / cm² at the front and 2.50 kg / cm² at the rear© Motor car History
