Motor Cars

South Korea

2010s

Hyundai Tucson Third generation (TL)


Production:	since 2015
Type:	SUV
Body versions :	station wagon
Engines:	Gasoline: 1.6 liters (97-130 kW) Diesel : 1.6-2.0 liters (85-136 kW)
Length:	4475 mm
Width:	1850 mm
Height:	1645 mm
Wheelbase :	2670 mm
Curb weight :	1454-1690 kg

At the Geneva Motor Show 2015, the third generation was presented. The car replaces the Hyundai ix35 worldwide, and has been available since the second half of 2015.

History

The full 5 Stars in the Euro NCAP - crash test in 2015,the new Tucson is 1.65 meters high, 1.85 meters wide and 4.47 meters long.

It’s a mid-size SUV and has spacious, hardwearing interior. It has a load capacity of 513 liters - a maximum of 1,503 liters (when the rear seats are moved forward) the back seats fold down in a 60:40 split. The vehicle is closely related to the Kia Sportage 4th Generation. inside has Apple CarPlay and Android Auto smartphone connectivity

.A six-speed manual or a seven-speed DSG gearbox avalable. The top of the range engine is the 185hp 2.0-litre CRDi.Traction and stability control system, tyre-pressure monitoring.hill-start assist, two Isofix child seat points in the rear as standard.

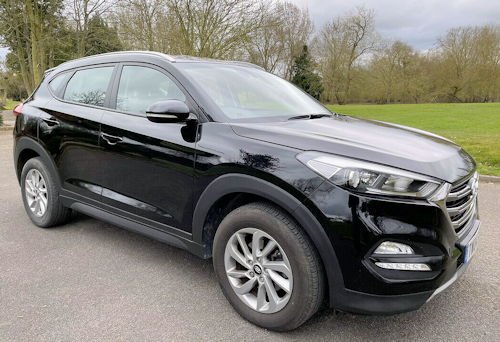

Hyundai Tucson Third generation (TL)

The car is available in four equipment lines. The entry is the ' Classic' variant, which comes as standard with LED daytime running lights, air conditioning and audio system including Bluetooth handsfree. The ' Trend' offers more comfort, which also features automatic climate control, heated steering wheel, front seat heating or rear parking aid. External features include roof rails and underride protection, fog lights and LED taillights. The ' Style' trim level features front and rear parking assistance, reversing camera, rain sensor, automatically dimming rearview mirror or radio navigation system.

In the summer of 2018, the Tuscon was subjected to a facelift.

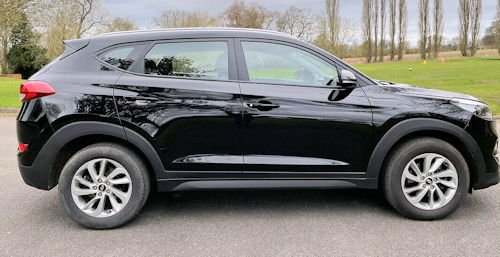

Hyundai Tucson Third generation side (TL)

Rating

Have you Say: Rate this

Overall Vote

1. Performance & Specification

Built to last?

2. Appearance Overall *Cool factor*

How good it looks ?

Technical

Hyundai Tucson 3rd gen Technical data

Petrol engines

parameters	blue 1.6 GDI	1.6 GDI	1.6 T-GDI
Construction period	07 / 2015-07 / 2018	since 07/2018	07 / 2015-07 / 2018	since 07/2018	07 / 2015-07 / 2018	since 07/2018
Motor characteristics
engine type	R4 petrol engine
mixture preparation	direct injection
engine charging	-		turbocharger
capacity	1591 cm³
Max. power	97 kW (132 hp) at 6300 rpm		130 kW (177 hp) at 5500 rpm
Max. torque	161 Nm at 4850 rpm		265 Nm at 1500-4500 / min
power transmission
Drive, standard	front-wheel drive				all wheel drive
Gearbox, standard [optional]	6-speed manual transmission		6-speed manual transmission [7-speed dual-clutch transmission]
readings
top speed	182 km / h		205 km / h [201 km / h]		202 km / h [201 km / h]
Acceleration, 0-100 km / h	11.5 s		9.2 s [8.9 s]		9.5 s [9.8 s]
Fuel consumption per 100 km (combined)	6.3 l super	7.2 l super	7.3 l Super [7.1 l Super]	7.6 l Super [7.2 l Super]	7.6 l Super [7.5 l Super]	7.9 l Super [7.6 l Super]
CO ₂ emission (combined)	147 g / km	165 g / km	169 g / km [165 g / km]	175 g / km [165 g / km]	177 g / km [175 g / km]	180 g / km [175 g / km]
tank capacity	62 l
Emission standard according to EU classification	Euro 6	Euro 6d TEMP	Euro 6	Euro 6d TEMP	Euro 6	Euro 6d TEMP

Diesel engines

parameters	1.6 CRDi			blue 1.7 CRDi		blue 2.0 CRDi			2.0 CRDi
Construction period	since 07/2018			07 / 2015-07 / 2018	04 / 2016-07 / 2018	07 / 2015-07 / 2018			since 07/2018
Motor characteristics
engine type	R4 diesel engine
mixture preparation	Common rail direct injection
engine charging	turbocharger
capacity	1598 cc			1685 cc		1995 cm³
Max. power	85 kW (116 hp) at 4000 rpm	100 kW (136 hp) at 2750-4000 / min		85 kW (116 hp) at 4000 rpm	104 kW (141 hp) at 4000 rpm	100 kW (136 hp) at 2750-4000 / min		136 kW (185 hp) at 4000 rpm	136 kW (185 hp) at 2750-4000 rpm
Max. torque	280 Nm at 1500-2750 / min	320 Nm at 2000-2250 / min		280 Nm at 1250-2500 / min	340 Nm at 1750-2500 / min	373 Nm at 1500-2500 / min		400 Nm at 1750-2750 / min
power transmission
Drive, standard	front-wheel drive		all wheel drive	front-wheel drive			all wheel drive
Gearbox, standard [optional]	6-speed manual transmission	6-speed manual transmission [7-speed dual-clutch transmission]		6-speed manual transmission	7-speed dual clutch transmission	6-speed manual transmission	6-speed manual transmission [6-speed automatic transmission]		6-speed manual transmission [8-speed automatic transmission]
readings
top speed	175 km / h	180 km / h [180 km / h]		176 km / h	185 km / h	186 km / h	184 km / h [184 km / h]	201 km / h [201 km / h]
Acceleration, 0-100 km / h	11.8 s	11.2 s [11.8 s]	11.4 s [12.0 s]	13.7 s	11.5 s	10.6 s	10.9 s [12.0 s]	9.9 s [9.5 s]
Fuel consumption per 100 km (combined)	5.0 l diesel	5.0 l diesel [4.9 l diesel]	5.2 l diesel [5.2 l diesel]	4.6 l diesel	4.9 liters of diesel	4.8 l diesel	5.2 l diesel [6.0 l diesel]	5.9 l diesel [6.5 l diesel]	5.4 l diesel [5.8 l diesel]
CO ₂ emission (combined)	132 g / km	132 g / km [129 g / km]	138 g / km [138 g / km]	119 g / km	129 g / km	127 g / km	139 g / km [160 g / km]	154 g / km [170 g / km]	142 g / km [153 g / km]
tank capacity	62 l
Emission standardaccording to EU classification	Euro 6d TEMP			Euro 6					Euro 6d TEMP
