 Honda D13 petrol engine

Honda D13 petrol engine

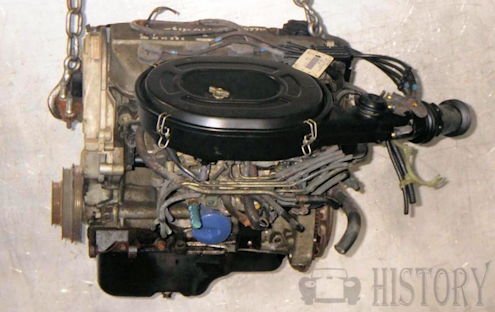

Honda D13 petrol engine civic D13B2

 The Honda D13 petrol engine was installed in various compact cars from Honda. It is mostly found in the Civic but also in the Logo, city and some other models. Early engines are equipped with single carburettors with later cars having Multi-point fuel Injection, (PGM-F). with two or four valves per cylinder options

The engine capacity ranges from 1.3 liters and the engines are available in SOHC versions. Some SOHC models are equipped with VTEC . The performance range is from 64 to 136 hp. The production was recorded in 1986 and ended in 2002 with the Honda City.

D13B1

  • 1988–1995 Honda Civic EC (European Market)
    • Displacement : 1,343 cc (82.0 cu in)
    • Bore and Stroke : 75.0 mm × 76.0 mm (2.95 in × 2.99 in)
    • Compression : 9.5:1
    • Power : 76 PS (56 kW; 75 hp) at 6300 rpm
    • Torque: 102 N⋅m (10.4 kg⋅m) at 3100 rpm
    • Valvetrain : SOHC (4 valves per cylinder)
    • Fuel Control : Single Carburetor PGM-CARB

D13B2

  • 1992–1995 Honda Civic DX (European Market)
    • Displacement: 1,343 cc (82.0 cu in)
    • Bore and Stroke: 75.0 mm × 76.0 mm (2.95 in × 2.99 in)
    • Compression: 9:1
    • Power: 75 PS (55 kW; 74 hp) at 6300 rpm
    • Torque: 102 N⋅m (10.4 kg⋅m; 75 lb⋅ft) at 3100 rpm
    • Valvetrain: SOHC, four valves per cylinder
    • Cam Gear: 38 teeth
    • Piston Code: PM1G
    • Head Code: PM3
    • Fuel Control: Single electronic carburettor PGM-CARB
    • ECU: P01 OBD-0

D13B4

  • 1996–2002 Honda City LXi/EXi/DX, 1995-2000 Honda Civic EK2
    • Displacement : 1,343 cc (82.0 cu in)
    • Bore and Stroke : 75.0 mm × 76.0 mm (2.95 in × 2.99 in)
    • Compression: 9.75:1
    • Power: 95 PS (70 kW) at 6500 rpm (City)
       91 PS (67 kW) at 6,300 rpm (Civic)
    • Torque: 119 N⋅m (12.1 kg⋅m; 88 lb⋅ft) at 4700 rpm (City)
       114 N⋅m (11.6 kg⋅m; 84 lb⋅ft) at 4800 rpm(Civic)
    • Valvetrain : SOHC (four valves per cylinder), 16 valves
    • Fuel Control : Multi-point fuel Injection, PGM-FI

Honda D13 petrol engine

Later Honda D13 petrol engine D13B7

D13B7

  • 1998–2001 Honda Logo 3D/5D
    • Displacement : 1,343 cc (82.0 cu in)
    • Bore and Stroke : 75.0 x 76.0 mm
    • Compression : 9.2
    • Power : 66 PS (48.5 kW; 65.1 hp) at 5000 rpm
    • Torque : 11.3 kg⋅m (110.8 N⋅m; 81.7 lbf⋅ft) at 2500 rpm
    • Valvetrain : SOHC (2 valves per cylinder)
    • Fuel Control : Multi-point fuel Injection, PGM-FI

D13C

  • 1989–1994 Honda City CE, CE Fit, CE Select, CG, CR-i, CR-i limited, CZ-i, New Fit (Japanese Market)
    • Displacement : 1,296 cc (79.1 cu in)
    • Bore and Stroke : 73.7mm x 76.0 mm
    • Compression : 9.6:1
    • Power : 100 PS (73.5 kW; 98.6 hp) at 6500 rpm
    • Torque : 11.6 kg⋅m (113.8 N⋅m; 83.9 lb⋅ft) at 5500 rpm
    • Valvetrain : SOHC (4 valves per cylinder)
    • Fuel Control : Multi-point fuel Injection, PGM-FI

Engine specifications

D13

D13B1 and D13B2 engines are equipped with single carburettors. For D13B4 and D13B7 engines, PGM-FI is responsible for the fuel control.

codecapacityBore × strokecompressionkW atmin -1Nm atmin -1camshaftVTECmodels
D13B11343 cc75 mm × 76 mm9.5: 155/6300102/3100SOHCNoCivic EC8
D13B21343 cc75 mm × 76 mm9: 155/6300102/3100SOHCNoCivic IV EC8; Civic V EG3 - G-CAT
D13B41343 cc75 mm × 76 mm9.75: 170.8 / 6500127/4200SOHC 1996-2002 Honda Civic LXi / EXi / DX
D13B71343 cc75 mm × 76 mm9.2: 148/5000108/2500SOHCNo1998-2001 logo
D13C1296 cc73.7mm × 76mm9.6: 173.5 / 6500113.8 / 5500SOHCNo1989-1994 Honda City CE, CE Fit, CE Select, CG, CR-i, CR-i limited, CZ-i, New Fit (Japanese Market)
Related items
Honda City | Honda Logo | Honda related | Petrol Engines | Straight-4 Engines | Honda Civic

Technical

  • Honda D13 engine Technical details and specifications (1988-2002)


    Honda 1.3 L Engine code: D13B1

    No. of cylinders 4/OHC
    Capacity 1343cc
    Firing order 1-3-4-2
    Compression ratio 9.0:1
    Suitable for unleaded petrol Yes
    Fuel system Make Keihin ED 33A Carb
    Ignition coil Make Hitachi
    Distributor Make Hitachi
    Oil pressure 4.6 bar @ 3000 rpm
    Thermostat opens 78°C
    Maximum cranking amps 122-149A
    Alternator Make ND/Mitsubishi Type 60A
    Regulated voltage 13.9-15.1V

    © Motor car History



Service

  • Honda D13 engine  Service Guide (1988-2002)


    Honda 1.3 L Engine code: D13B1

    Spark plugs Original equipment NGK Type BCPR6E-11
    Spark plugs Electrode gap 1.1mm
    Spark plugs Tighten 18 Nm
    Spark plugs Make Autolite Type APP3923
    Spark plugs Make Bosch Type FR7DCX
    Spark plugs Make Champion Type RC9YCC4
    Valve clearance -INLET 0.17-0.22mm check cold
    Valve clearance -EXHAUST 0.22-0.27mm check cold
    Engine oil grade - moderate climate 10W/40 SAE or 15W/40 SAE
    Engine oil grade - cold climate 5W/30 SAE
    Engine oil grade - hot climate 20W/40 SAE
    Engine oil change 3.5 litres
    Engine oil Sump drain bolt Tighten 45 Nm
    Manual gearbox oil 10W/30-40 SAE 1.8 litres
    Automatic transmission oil Dexron II 2.4 litres
    Cooling system 5.4 litres
