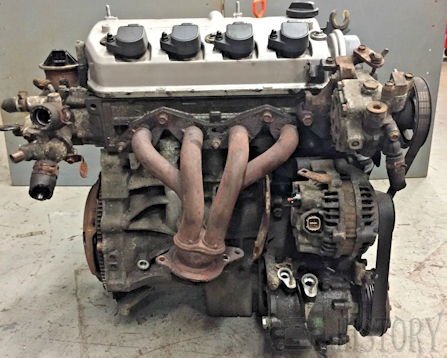

 Honda D17 engine

Honda D17 engine



 The Honda D engine was installed in various compact cars from Honda It is mostly found in the Civic with engine codes D17A1,D17A2,D17A8,D17A9,. The engine capacity is 1.7 liters and the engines are available in SOHC and DOHC versions. Some SOHC models are equipped with VTEC . The production was recorded in 2001 and ended in 2005 with the presentation of the eighth generation of the Civic.



D17 series engines (1.7 liter)

D17A

  • Found in: 2001–2005 Honda Civic (Japan, Canada)
    • Displacement : 1,668 cc (101.8 cu in)
    • Bore and Stroke: 75 × 94.4 mm (3.0 × 3.72 in)
    • Compression : 10.5:1
    • Power : (lean burn) 120 hp (85.8 kW, 120 ps) at 4900 rpm; 140 hp (96.9 kW, 140 PS) at 6750 rpm
    • Torque : 160 N⋅m (118 lb⋅ft) at 4800 rpm
    • Rev-limiter : 7200 rpm
    • Valvetrain : SOHC (4 valves per cylinder)
    • Fuel Control : OBD-2 MPFI

D17A1

  • Found in:2001–2005 Honda Civic DX/LX/VP
    • Displacement : 1,668 cc (101.8 cu in)
    • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
    • Compression : 9.5:1
    • Power : 115 hp (85.8 kW, 117 ps) at 6100 rpm
    • Torque : 110 lb·ft (15.2 kg/m, 149 Nm) at 4500 rpm
    • RPM redline: 6750 rpm
    • Rev-limiter : 7200 rpm
    • Valvetrain : SOHC (4 valves per cylinder)
    • Fuel Control : OBD-2 MPFI

D17A2 SOHC VTEC

  • Found in:
    • 2001–2005 Honda Civic EX (US only)
    • 2001–2005 Honda Civic LX (Europe)
    • 2001–2005 Honda Civic Si (Canada only)
    • 2001–2005 Acura 1.7 EL (Canada only)
    • 2000–2007 Honda Stream 1.7 (Japan)
    • 2004-2007 Honda FR-V 1.7 (Europe)
      • Displacement: 1,668 cc (101.8 cu in)
      • Bore and Stroke: 75 mm × 94.4 mm (2.95 in × 3.72 in)
      • Rod Length: 137 mm
      • Rod/Stroke: 1.48
      • Compression: 9.9:1
      • Power (North America): 127 hp (95 kW; 129 PS) at 6,300 rpm
        Japan: 125 PS (92 kW; 123 hp) at 6,300 rpm
      • Torque (North America): 114 lb·ft (15.8 kg/m, 154 Nm) at 4,800 rpm
        Japan: 154 N⋅m (114 lb⋅ft) at 4,800 rpm
      • RPM redline: 6,800 rpm
      • Rev-limiter: 7,200 rpm
      • Valvetrain: SOHC VTEC, four valves per cylinder
      • VTEC Switchover: 3,200 rpm
      • Fuel Control: OBD-2 MPFI

D17A5 VTEC-E

  • Found in:
    • 2001–2005 Honda Civic 170i VTEC (South Africa)
    • 2004 Honda Stream VTEC (Indonesia)
      • Displacement : 1,668 cc (101.8 cu in)
      • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
      • Compression : 9.9:1
      • Power : 130 hp (97 kW; 132 PS) at 6,300 rpm
      • Torque : 155 N⋅m (114 lb⋅ft) at 4,800 rpm
      • Valvetrain : SOHC VTEC-E Lean Burn (4 valves per cylinder)
      • VTEC Switchover : 3,200 rpm
      • Fuel Control : OBD-2 MPFI

D17A6 VTEC-E

  • Found in: 2001–2005 Honda Civic HX
    • Displacement : 1,668 cc (101.8 cu in)
    • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
    • Compression : 9.9:1
    • Power : 117 hp (87 kW; 119 PS) at 6,100 rpm
    • Torque : 111 lb⋅ft (150 N⋅m) at 4,500 rpm
    • Valvetrain : SOHC VTEC-E Lean Burn (4 valves per cylinder)
    • VTEC Switchover : 2,300 rpm
    • Fuel Control : OBD-2 MPFI

D17A7

  • Found in:2001–2005 Honda Civic GX
    • Fuel CNG (Compressed Natural Gas)
      • Displacement : 1,668 cc (101.8 cu in)
      • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
      • Compression : 12.5:1
      • Power : 100 hp (75 kW; 101 PS) at 6,100 rpm
      • Torque : 98 lb·ft (13.5 kg/m, 133 Nm) at 4,000 rpm
      • Valvetrain : SOHC (4 valves per cylinder)
      • Fuel Control : OBD-2 MPFI

D17A8

  • Found in: 2001-2005 Honda Civic Coupé LS (Europe)
    • Displacement : 1,668 cc (101.8 cu in)
    • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
    • Compression : 9.9:1
    • Power : 85.8 kW (117 PS; 115 hp) at 6100 rpm
    • Torque : 110 lb·ft (15.2 kg/m, 149 Nm) at 4500 rpm
    • RPM redline : 6750 rpm
    • Rev-limiter : 7200 rpm
    • Valvetrain : SOHC (4 valves per cylinder)
    • Fuel Control : OBD-2 MPFI

D17A9 VTEC-E

  • Found in: 2001–2005 Honda Civic Coupe ES (Europe)
    • Displacement : 1,668 cc (101.8 cu in)
    • Bore and Stroke : 75 mm × 94.4 mm (2.95 in × 3.72 in)
    • Rod Length : 140 mm
    • Rod/Stroke : 1.48
    • Compression : 9.9:1
    • Power : 125 PS (92 kW; 123 hp) at 6,300 rpm
    • Torque : 145 N⋅m (107 lb⋅ft) at 4,800 rpm
    • RPM redline: 6,800 rpm
    • Rev-limiter: 7,200 rpm
    • Valvetrain: SOHC VTEC-E, four valves per cylinder
    • VTEC Switchover: 2,500 - 3,200 rpm
    • Fuel Control: OBD-2 MPFI

D17Z3 VTEC

  • Found in:
    • 2001–2006 Honda Civic EX (Brazil only)
    • 2005–2006 Honda Civic LXL (Brazil only)
      • Displacement: 1,668 cc (101.8 cu in)
      • Bore and Stroke: 75 mm × 94.4 mm (2.95 in × 3.72 in)
      • Rod Length: 140 mm
      • Rod/Stroke: 1.48
      • Compression: 9.9:1
      • Power: 130 hp (97 kW; 132 PS) at 6,300 rpm
      • Torque: 114 lb·ft (15.8 kg/m, 154 Nm) at 4,800 rpm
        Japan: 154 N⋅m (114 lb⋅ft) at 4,800 rpm
      • RPM redline: 6,800 rpm
      • Rev-limiter: 7,000 rpm
      • Valvetrain: SOHC VTEC, four valves per cylinder
      • VTEC Switchover: 4,800 rpm
      • Fuel Control: OBD-2 MPFI

D17Z2 SOHC

  • Found in:
    • 2001–2006 Honda Civic LX (Brazil only)
    • 2004 Honda Civic LXL (Brazil only)
      • Displacement: 1,668 cc (101.8 cu in)
      • Bore and Stroke: 75 mm × 94.4 mm (2.95 in × 3.72 in)
      • Rod Length: 140 mm
      • Rod/Stroke: 1.48
      • Compression: 9.9:1
      • Power: 115 hp (86 kW; 117 PS) at 6,300 rpm
      • Torque: 114 lb·ft (15.8 kg/m, 154 Nm) at 4,800 rpm
        Japan: 154 N⋅m (114 lb⋅ft) at 4,800 rpm
      • RPM redline: 6,800 rpm
      • Rev-limiter: 7,000 rpm
      • Valvetrain: SOHC, four valves per cylinder
      • Fuel Control: OBD-2 MPFI
Related items
Honda Stream | Honda FR-V | Acura Related | Honda related | Petrol Engines | Straight-4 Engines | Honda Civic

Technical

  • Honda D17 engine Technical details and specifications (2001-2007)

    codecapacityBore × strokecompressionkW at min -1models
    D17A11668 cc75 mm × 94.4 mm9.5: 185/6100
    D17A21668 cc75 mm × 94.4 mm9.9: 192/6300FR-V
    D17A81668 cc75 mm × 94.4 mm9.9: 188/6200Civic VII EM2
    D17A91668 cc75 mm × 94.4 mm9.9: 192/6300Civic VII EM2
    codecapacityNm at min -1camshaftVTECOBD-Versionmodels
    D17A11668 cc149/4500SOHC OBD-2
    D17A21668 cc154/4400SOHCVTECOBD-2FR-V
    D17A81668 cc152/4500SOHC OBD-2Civic VII EM2
    D17A91668 cc154/4800SOHCVTECOBD-2Civic VII EM2

    Honda Civic Engine code: D17A2 1.7 (2001-2006)
    No. of cylinders 4/OHC
    Capacity 1668 cc
    Firing order 1-3-4-2
    Compression ratio 9.9:1
    Suitable for unleaded petrol Yes
    Ignition Fuel system Type PGM-FI
    Air metering Type MAP
    Combined ignition and fuel ECM Yes
    Diagnostic socket Yes
    Fuel system pressure with vacuum 2,7-3,2bar
    Injector 10-13 Ohm
    Oil pressure 3,5 bar @ 3000 rpm
    Radiator cap 0,95-1,25 bar
    Thermostat opens 76-80 °C

    © Motor car History



Service

  • Honda D17 engine Service details (2001-2007)

    Honda Civic Engine code: D17A2 1.7 (2001-2006)
    Spark plugs Original equipment NGK Type ZFR6J-11
    Spark plugs Electrode gap 1.0-1.1 mm
    Spark plugs Make NGK Type ZFR6J-11
    Valve clearance -INLET 0.18-0.22mm
    Valve clearance -EXHAUST 0.23-0.27mm cold
    Engine oil grade - normal climate 10W/30 SAE or 10W/40 SAE
    Engine oil grade - cold climate 5W/30 SAE
    Engine oil grade - hot climate 10W/40 SAE
    Engine oil with filter 3.5 litres
    Manual gearbox oil 4/5 speed 1.6 litres
    Automatic transmission fluid Type Honda ATF-Z1 2.7 litres
    Cooling system 4.0 litres
    Brake fluid Type DOT 4
    Power steering fluid 1,0 litres

    © Motor car History
