Germany
Motor Cars
1960s

Glas 1004

Glas 1004 / 1204 / 1304 from 1962 to 1968
ManufacturerHans Glas GmbH
Productioncoupé May 1962 – October 1965
saloon January 1963 – December 1967
cabriolet January 1963 – July 1967
estate September 1966 – 1967/1968
40,703 units
AssemblyDingolfing
Body stylecoupé, saloon, cabriolet,estate
LayoutFR layout
Engine4-cylinder in-line 992 cc
Transmission4-speed manual all-synchromesh
Wheelbase82.68 in, 2,100 mm
Length150.98 in, 3,835 mm
Width59.05 in, 1,500 mm
Heightsaloon & estate: 1,370 mm (54 in)
coupe & cabriolet: 1,355 mm (53.3 in)


The Glas 1004 is a small two-door, four-seater automobile produced by Hans Glas GmbH at Dingolfing. It was first exhibited in public, in coupé form, at the Frankfurt Motor Show in September 1961. Volume production of the 1004 coupé started in May 1962, and in January 1963 saloon/sedan and cabriolet versions joined the range along with the more powerful Glas 1204. September 1965 saw a yet more powerful variant, the Glas 1304. In September 1966, a fastback estate was added.

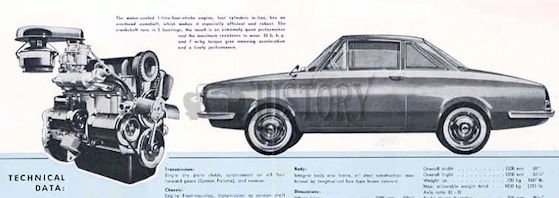

In 1960 the company’s research workshop came up with an engine that used an unconventional camshaft drive. Product developer Leonhard Ischinger, who had joined Glas from BMW, had produced a four-cylinder OHC engine with valve gear driven using a toothed rubber cam-belt, which at that time was a novel idea. The 992 cc engine provided a maximum output of 31 kW (42 PS) at 5,000 rpm. During 1961 the company added a modern coupé body using the chassis of the Glas Isar which for this application had been lengthened by 10 cm. The result was the 1004 prototype which appeared at the Motor Show in September of that year.

An updated entry level 1004 was introduced, horsepower on the 992 cc engine now reduced to 40 PS (29 kW). The car featured a slightly higher compression ratio than the original 1004 in 1963 and a different carburetor.

Glas 1004 / 1204 / 1304 from 1962 to 1968

S 1004

Volume production began in May 1962 and the first cars were delivered in August. The car retained the water cooled 992 cc engine of the prototype which at this stage still delivered a claimed 31 kW (42 PS) of maximum power at 5,000 rpm. Drive was to the rear wheels via a four-speed manual transmission incorporating – still slightly unusually for this size of car  synchromesh on all four forward speeds.

The S 1004 came with a steel monocoque steel body strengthened, from the start on this model, by reinforcing box sections under the floor. Commentators noted the contrast between the car’s relatively short 2,100 mm wheelbase and the overall 3,835 mm length of the car, which may, by later standards, have compromised the handling but did permit the use of a relatively short drive-shaft.

Front suspension used trailing arms and independent springs in combination, while at the back a rigid “swing” axle was supported by leaf springs. Both at the front and at the back the suspension was enhanced with “rubber air-filled hollow springs”.The hydraulically controlled drum brakes operated on all four wheels while the hand brake operated via a cable linkage to the rear wheels. Steering was of the then common worm and roller type.

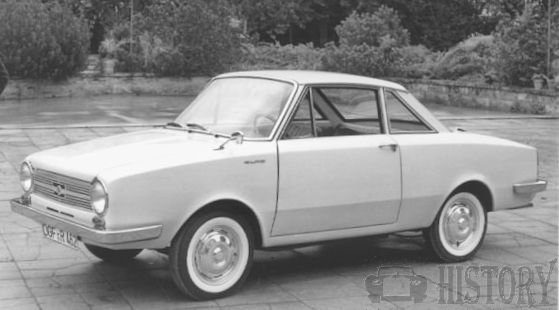

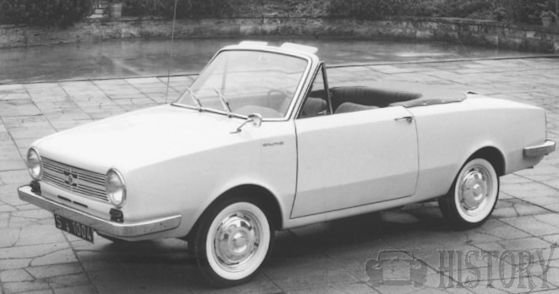

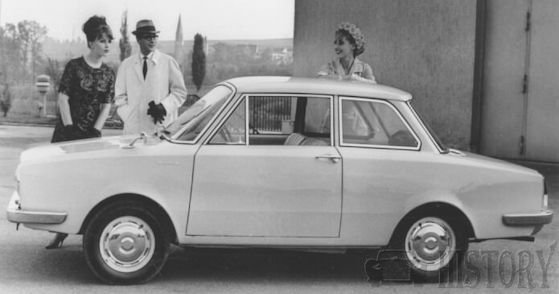

The 2+2 coupé, commended in the manufacturer’s publicity for its “convincingly simple lines” in November 1963. From January 1963 the cabriolet was also offered. The Glas 1004 had the smallest engine in the range, and this was offered in combination with the full four seater sedan/saloon only from September 1965. A still unusual optional extra from August 1963 was disc brakes on the front wheels.

Press comment in a country where technical innovation generates enthusiasm was very positive in respect of the car’s status as the world’s first production car to be fitted with a belt driven camshaft, but criticised the unresponsiveness of the standard drum brakes and the heavy clutch. The car’s tendency to pitch under acceleration or sharp braking which was attributed to its short wheel base also drew criticism as did the “back to front” gear box which, as on the existing Isar, had originally been intended for a (never produced except as a prototype) front-wheel-drive small car and accordingly positioned first and third gears nearest to the driver, with second and fourth gears nearest the front of the car.

  • PERFORMANCE: S 1004
  • Engine capacity: 60.53 cu in, 992 cu cm
  • Fuel consumption: 41.5 m/imp gal. 34.6 mlUS gal, 6.81 x 100 km
  • Max speed: 80.8 mph, 130 km/h
  • Max power (DIN): 42 hp at 5,000 rpm
  • Max torque (DIN): 51 '1b ft, 7 kg m at 2,500 rpm
  • Max number of engine rpm: 5,500
  • Specific power: 42.3 hp/l

Glas 1004 / 1204 / 1304 from 1962 to 1968





1004 TS

In November 1963 Glas added twin carburettor version were branded as the Glas 1004 TS. Claimed maximum horsepower output on these twin carburettor powered cars were 46 kW (63 PS) at 6,000 rpm. The TS powered versions of the car came with front disc brakes included in the price which provided, according to a contemporary report, “good stopping power with little effort”.

 Glas 1004 / 1204 / 1304 from 1962 to 1968

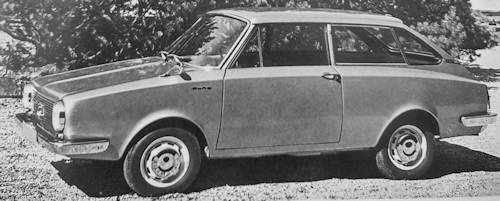

1004 CL

A fastback bodied kombi-limousines (estate cars) arrived in August 1966. Estate cars of this size were still relatively uncommon. The kombi-limousines could be purchased as 1004 CL with the "CL" standing for Combi Limousine. The Glas estate cars met with little success in the market place. Despite the rear tailgate, luggage space and rear leg room was severely limited thanks to the car’s short wheelbase.

1004 CL Glas 1004 (1962-1968)

Categories
Glas
Title
Glas 1004 (1962-1968)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
German Automotive 1960s

Technical

Technical
  • Glas 1004 Technical details and specifications (1962-1968)


    ENGINE
    location front
    4 stroke; cylinders: 4, in line
    bore and stroke: 2.83 x 2.40 in, 72 x 61 mm
    engine capacity: 60.53 cu in, 992 cu cm
    compression ratio: 8.2
    cylinder block: cast iron
    cylinder head: light alloy
    crankshaft bearings: 5
    valves: 2 per cylinder, overhead, Vee-slanted at 30°, rockers
    camshafts: 1, overhead, cogged belt
    lubrication: gear pump, full flow filter
    carburation: 1 Solex 32 PICB downdraught single barrel carburettor
    fuel feed: mechanical pump
    cooling system: water

    STEERING
    worm and roller
    turns of steering wheel lock to lock: 2.50.
    turning circle (between walls): 31.2 ft, 9.5 m

    BRAKES
    drum front and rear
    lining area: front 37.83 sq in, 244 sq cm
    lining area: rear 37.83 sq in, 244 sq cm
    lining area: total 75.66 sq in, 488 sq cm.

    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate
    gearbox: mechanical; gears: 4+ reverse
    synchromesh gears: all
    gearbox ratios: 1st 3.925, 2nd 1.992, 3rd 1.327, 4th 1, rev 3.610
    gear lever location: central
    final drive: hypoid bevel
    axle ratio: 4.250

    ELECTRICAL EQUIPMENT
    voltage: 6 V
    battery: 66 Ah
    dynamo: 200 W
    ignition distributor: Bosch

    CHASSIS

    integral
    front suspension: independent, upper trailing arms, lower transverse arms, rubber springs (compression), coil springs, telescopic dampers,
    rear suspension: rigid axle, semi-elliptic leafsprings, rubber springs (compression), telescopic dampers.

    DIMENSIONS AND WEIGHT
    wheel base: 82.68 in, 2,100 mm
    front track: 48.42 in, 1,230 mm
    rear track: 47.24 in, 1,200 mm
    overall length: 150.98 in, 3,835 mm
    overall width: 59.05 in, 1,500 mm
    overall height: 53.15 in, 1,350 mm
    ground clearance: 7.48 in, 190 mm
    dry weight: 1,632 1b, 740 kg
    distribution of weight: 60% front axle, 40% rear axle

    © Motor car History

Service
  • Glas 1004 Maintenance and Service Guide (1962-1968)

    Fuel: 78 oct petrol
    Engine oil change: 4.40 imp pt, 5.28 US pt, 2.5 1, SAE 10W-30 HD, change every 1,900 miles, 3,000 km
    Total lubricating system capacity: 5,10 imp pt, 6.13 US pt, 2.9 1
    Cooling system capacity: 10.56 imp pt, 12.68 US pt, 6 1.
    Gearbox oil: 2.11 imp pt, 2.54 US pt, 1.2 1, SAE 80, change every 14,900 miles, 24,000 km
    Final drive oil: 1.41 imp pt, 1.69 US pt, 0.8 1, SAE 90, change every 14,900 miles, 24,000 km
    Greasing: every 1,900 miles, 3,000 km, 7 points
    Tappet clearances: inlet 0.004 in, 0.10 mm, exhaust 0.004 in, 0.10 mm
    Valve timing: inlet opens 32° before tdc and closes 52° after bdc, exhaust opens 52° before bdc and closes 32° after tdc
    Tyre pressure (normal load): front 23 psi, 1.6 atm, rear 17 psi, 1.2 atm.
    Carrying capacity: 706 1b, 320 kg
    Tyres: 5.20 x 13
    Fuel tank capacity: 8.8 imp gal, 10.6 US gal

    © Motor car History
