Ford Fusion 2nd gen US (2012-)
Motor Cars
USA
2010s

Ford Fusion Fusion Second generation (US)

Ford Fusion Fusion Second generation (US)

Production :

since 2012

Body versions :

saloon

Engines:

Gasoline: 1.5-2.0 liters (132-177 kW)
Diesel : 2.0 liters (132 kW)
Hybrid drive : 2.0 liters (136 kW)

Length:

4869 mm

Width:

1852 mm

Height:

1476 mm

Wheelbase :

2850 mm

At the Detroit Motor Show 2012, Ford introduced the new 2nd generation, which was launched in the fall of the same year.

History

The car was initially produced exclusively in the Mexican Ford plant Hermosillo , later also in the Flat Rock Assembly Plant .

The Fusion is the first model to be built on Ford's new global CD platform . In Europe and Asia, the new generation of the Ford Mondeo , which has been available since autumn 2014 and is largely identical, is also based on this platform.

The new model is available in North America exclusively as a notchback sedan. As engines two are EcoBoost engines offered, and a full-hybrid version and a fusion Energi -called plug-in hybrid version. Ford offers the merger in the North American market in three trim levels.

Ford Fusion inside Second generation (US)

Engines and transmission

The gasoline engines of the EcoBoost generation achieved by turbocharging and gasoline direct injection a relatively high performance with low gasoline consumption, which is further reduced by an automatic start stop feature . The 2.0-liter gasoline engine has a 6-speed powershift - automatic transmission with double clutch technology and is also equipped with all-wheel drive available.

Assistance systems include a lane departure warning system, an adaptive cruise control system, a parking assistant and a blind spot assistant.

Both hybrid versions have lithium-ion batteries and should be able to drive up to a speed of 100 km / h purely electric. The combustion engine is a newly developed four-cylinder with 2.0 liter displacement, which also works on the Atkinson cycle . It provides the same performance as the previous model generation, powered by a 2.5-liter engine, with significantly lower emissions and fuel consumption. This is equivalent to 5.0 to 5.3 liters per 100 km.

Fusion Energi is a plug-in hybrid version, which will be sold in the US from 2013 onwards. The car can drive 32 miles purely electric. The average consumption is 2.7 liters of gasoline per 100 kilometers.

In addition, the hybrid models have an active noise control (Active Noise Control). With the help of the audio system, acoustically disturbing influences from the tires are reduced in favor of the engine sound.

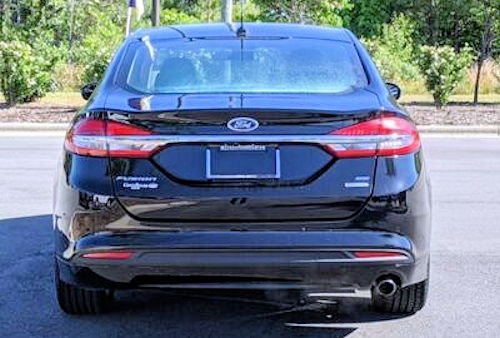

Ford Fusion back virew Second generation (US)



Edited By
MCH
Created
22 May 2021
Updated
03 February 2023
Related items
Ford Fusion | Vehicles launched in 2012 | American Automotive 2010s

Technical

Technical
  • Technical Data



    1.5 EcoBoost

    2.0 EcoBoost

    2.0 TDCi

    Construction period

    since 2015

    Motor characteristics

    engine type

    R4 gasoline engine

    R4 diesel engine

    capacity

    1498 cc

    1998 cm³

    compression ratio

    10.0: 1

    9.3: 1

    16.0: 1

    Max. Power at min -1

    132 kW (179 hp) / 6000

    149 kW (203 hp) / 5400

    177 kW (241 hp) / 5300

    132 kW (179 hp) / 3500

    Max. Torque at min -1

    240 Nm / 1600-4000

    340 Nm / 2300-4900

    400 Nm / 2000-2500

    power transmission

    drive

    front-wheel drive

    Gearbox, standard

    5- speed automatic transmission

    readings

    top speed

    214 km / h

    232 km / h

    240 km / h

    223 km / h

    Acceleration, 0-100 km / h

    9.1 s

    8.7 s

    7.9 s

    8.6 s

    Fuel consumption per 100 km (combined)

    7.4 l super

    7.5 l super

    8.5 l super

    5.1 l diesel

    CO 2 emissions (combined)

    173 g / km

    174 g / km

    187 g / km

    124 g / km

    tank capacity

    62 l
