Info

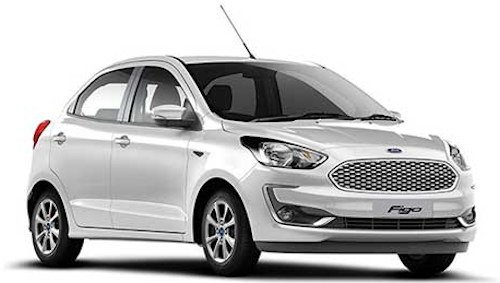

Ford Figo 2nd generation
![]() | |
Make: | Ford |
Class: | Motor car |
Production period: | since 2015 |
Body versions : | sedan |
Engines: | Gasoline :1.2-1.5 liters (64-82 kW) |
Length: | 3886-4254 mm |
Width: | 1695 mm |
Height: | 1525 mm |
Wheelbase : | 2491 mm |
The Ford Figo 2nd generation was built in India since 2015.
History
The successor model was introduced in India in 2015 and also provides the same basis for the European Ka + . The second generation of Figo is built in Sanand .The second generation Figo is now available in three engine options. It will also be marketed in other emerging markets. In contrast to the Ka +, the Figo is also available in a notchback version.
While being sold in South Africa as the Ford Figo Sedan , it is marketed in India as the Ford Aspire . At 3995 mm, the Aspire is around 259 mm shorter than the Figo Sedan, since in India vehicles up to four meters in length are taxed less. It is equipped with an independent MacPherson strut with coil spring and anti-roll bar up front with semi independent twist beam with twin gas and oil filled shock absorbers at the rear. 5-speed manual geabox on base models and a 6-speed Dual-clutch transmission on top models.
Technical
-
Ford Figo 2nd gen Technical data (2015-)
1.2 Ti-VCT
1.5 Ti-VCT
1.5 TDCi
Construction period
since 2015
Motor characteristics
engine type
R4 gasoline engine
R4 diesel engine
capacity
1196 cc
1499 cc
1498 cc
Max. Power at min -1
65 kW (88 hp) / 6300
82 kW (111 hp) / 6300
74 kW (101 hp) / 3750
Max. Torque at min -1
112 Nm / 4000
136 Nm / 4250
215 Nm / 1750-3000
power transmission
drive
front-wheel drive
Gearbox, standard
5-speed manual transmission
Gear, optional
-
[6-speed dual clutch transmission ]
-
readings
top speed
175 km / h
Acceleration, 0-100 km / h
11.8 s
[12.0 s]12.1 s
Fuel consumption per 100 km (combined)
5.9 l Super
[6.0 l Super]4.1 l diesel
CO 2 emissions (combined)
141 g / km
[142 g / km]108 g / km
tank capacity
42 l
40 l
