Ford Kuga Second generation
![]() | |
Production : | 2012 to 2019 |
Type | Motor car |
Body versions : | SUV |
Engines: | Gasoline:1.5-2.0 liters (88-178 kW) |
Length: | 4524-4541 mm |
Width: | 1838-1856 mm |
Height: | 1689-1702 mm |
Wheelbase : | 2690 mm |
Curb weight : | 1579-1716 kg |
At the beginning of 2011, the second model generation of the Ford Kuga was introduced at the LA Auto Show with production from 2012 .
History
The Ford Kuga is a car model of the car manufacturer Ford . It is of an SUV type ,the first generation First debuted in autumn 2007.The second generation appeared in the spring of 2013 on the basis of the Ford Focus '11 and is as a world car largely identical to the already since mid-2012 on the US market offered Ford Escape .
This follows the "One Ford" strategy, similar to the Ford Focus , the second generation is a world car to save development costs. The design of the vehicle is based on the first model generation of the Ford Kuga. In North America , the SUV as a third model generation under the name Ford Escape already since mid-2012 available, the production for the North American market is in Louisville (Kentucky) .
In Europe, the market launch took place on 9 March 2013, the model was first presented at the Geneva Motor Show in March 2012. The vehicles are built for the European market in the Spanish Almussafes plant near Valencia.
The luggage compartment of the second Kuga generation is 46 liters larger than its predecessor. In addition, the folded rear seats together with the height-adjustable luggage compartment floor form a continuous flat loading area.

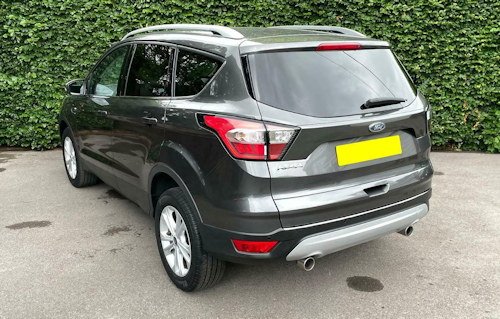

The vehicle was equipped for the first time in Geneva with an automatically opening tailgate with foot sensor. For this purpose, a sensor is mounted under the rear bumper, which detects the foot movement of a person standing directly behind the vehicle and then unlocks the tailgate and electrically opens. Stopping heavy or bulky items is not necessary to open the tailgate.
The Ford Kuga is equipped as standard with an anti-lock braking system with electronic brake force distribution and electronic stability program with traction control and "torque vectoring control" . In addition, it has front and side airbags and head and shoulder airbags front and rear, plus belt tensioners and belt force limiters in the front, safety pedals and Isofix child seat mounts to the two outer seats of the rear row of seats.

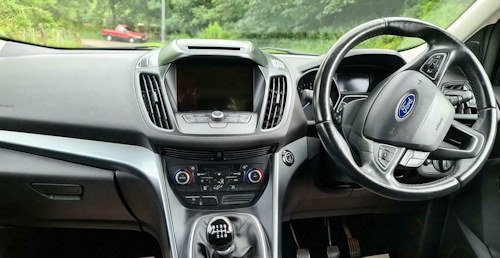

At the end of 2016, the 2017 model was accompanied by a comprehensively revised facelift version of the Kuga. This differs above all by a new, similar to the Ford Edge front design and heavily modified rear design and among other things by additionally integrated assistance systems (eg adaptive cruise control including collision warning, optimized Active City stop, lane and blind spot assistant, traffic sign recognition) one still changed steering characteristics and larger equipment ranges from the previous version. In addition, the dashboard has been made clearer and more modern and introduced the third generation of the Ford SYNC infotainment system. Despite partly significantly upgraded equipment, the starting price of the facelift model remained constant.
The Kuga is available in five different trim levels, "Trend", "Titanium", "Cool & Connect", "ST-Line" and "Vignale", as well as the special equipment "Black & Silver.
The "Trend" version features sports seats, air conditioning, the Ford Power Start function with start button, electric windows front and rear, CD radio with remote control, height and reach adjustable steering column, electrically adjustable and heated mirrors, fog lights, daytime running lights and a split folding rear seat with adjustable backrests.
The "Titanium" equipment also features leather-upholstery with adjustable lumbar support on the driver's side, two-zone automatic climate control, auto-dimming rear view mirror, windshield wiper with rain sensor, cruise control system, day / night headlight, rollover protection system RSC ( "Roll Stability Control"), a rear center armrest with integrated cupholders and 17-inch alloy wheels. In addition, the Ford SYNC voice-controlled connectivity system is standard on Titanium-equipped vehicles.
Since the facelift, the Kuga is also sold in the trim levels "ST-Line" and "Vignale"
Engines
For the Kuga stood in Europe from the beginning of a 1.6-liter EcoBoost engine in two power levels, with 110 kW (150 hp) or 134 kW (182 hp) and a 2.0-liter turbodiesel with 103 kW ( 140 hp) or 120 kW (163 hp).
The smaller engines were only available with a manual six-speed transmission, the stronger gasoline engine with six-speed automatic transmission. The more powerful diesel engine was available with either the smaller engine manual transmission or Ford PowerShift automatic transmission. Vehicles with the two more powerful engines had standard four-wheel drive, which was optional for the smaller diesel engine and not available at the base gasoline engine. These models were instead equipped with front-wheel drive.
In the United States , the Ford Escape is also offered with a 2.5-liter four-cylinder. All engines meet the Euro 5 emission standard .
Since October 2014, there are new engines: in gasoline engines, a 1.5-liter EcoBoost with 110 kW (150 hp) and 134 kW (182 hp) replaced the equally powerful 1.6-liter engine, while the diesel engines in increased performance and an additional, weaker variant with 88 kW (120 hp) were added. Since June 2016, a 1.5-liter EcoBoost engine is also available with 88 kW (120 hp).
In the facelift model, a 2.0-liter gasoline engine with 178 kW (242 hp) has been available since autumn 2017.
The third generation was released in 2019.
Technical
-
Ford Kuga 2nd generation Technical data
Petrol engines
1.5 EcoBoost 2x4
1.5 EcoBoost 4x4
1.6 EcoBoost 2x4
1.6 EcoBoost 4x4
2.0 EcoBoost 4x4
Construction period
06 / 2016-06 / 2018
since 08/2018
10 / 2014-06 / 2018
since 08/2018
10 / 2014-06 / 2018
11 / 2012-09 / 2014
since 05/2019
11 / 2017-06 / 2018
Motor characteristics
engine type
R4 petrol engine
mixture preparation
direct injection
engine charging
turbocharger
capacity
1498 cc
1596 cm³
1999 cm³
Max. power
88 kW (120 hp) at 5500 rpm
110 kW (150 hp) at 6000 rpm
129 kW (176 hp) at 6000 rpm
134 kW (182 hp) at 6000 rpm
110 kW (150 hp) at 5700 rpm
134 kW (182 hp) at 5700 rpm
169 kW (230 hp) at 6100 rpm
178 kW (242 hp) at 5000 rpm
Max. torque
240 Nm at 1600-3000 / min
240 Nm at 1600-4000 / min
240 Nm at 1600-5000 / min
240 Nm at 1600-4000 / min
240 Nm at 1600-5000 / min
366 Nm at 2400 rpm
394 Nm at 2500 rpm
power transmission
Drive, standard
front-wheel drive
all wheel drive
front-wheel drive
all wheel drive
Gearbox, standard
6-speed manual transmission
6-speed automatic transmission
6-speed manual transmission
6-speed automatic transmission
Gear, optional
-
6-speed automatic transmission
-
readings
top speed
180 km / h
195 km / h
197 km / h
200 km / h
195 km / h
200 km / h
205 km / h
212 km / h
Acceleration, 0-100 km / h
12.5 s
9.7 s
11.4 s
10.1 s
9.7 s
9.5 s
8.8 s
Fuel consumption per 100 km (combined)
6.2 l super
7.0-7.2 l super
6.2 l super
7.0-7.2 l [8.8-8.9] Super
8.3-9.0 l Super
7.4 l super
6,6 l super
7.7 l super
9.5 l super
8,7 l super
CO 2 emission (combined)
143 g / km
158-164 g / km
143 g / km
158-164 g / km [201-202 g / km]
184-204 g / km
171 g / km
154 g / km
179 g / km
216 g / km
199 g / km
Emission standard according to EU classification
Euro 6
Euro 6d TEMP
Euro 6
Euro 6d TEMP
Euro 6
5 euro
Euro 6d TEMP
Euro 6
Diesel engines
2.0 TD Ci 2x4
2.0 TDCi 4x4
2.0 TDCi 2x4
2.0 TDCi 4x4
Construction period
10 / 2014-03 / 2019
since 03/2019
11 / 2012-09 / 2014
10 / 2014-03 / 2019
since 03/2019
10 / 2014-03 / 2019
since 03/2019
11 / 2012-09 / 2014
10 / 2014-03 / 2019
since 03/2019
Motor characteristics
engine type
R4 diesel engine
mixture preparation
direct injection
engine charging
turbocharger
capacity
1997 cm³
Max. power
88 kW (120 hp) at 3500 rpm
88 kW (120 hp) at 3600 rpm
103 kW (140 hp) at 3750 rpm
110 kW (150 hp) at 3500 rpm
120 kW (163 hp) at 3750 rpm
132 kW (180 hp) at 3500 rpm
Max. torque
310 Nm at 1750-2750 / min
270 Nm at 1750-2000 / min
320 Nm at 1750-2750 / min
370 Nm at 2000-2500 / min
340 Nm at 2000-3250 / min
400 Nm at 2000-2500 / min
power transmission
Drive, standard
front-wheel drive
all wheel drive
front-wheel drive
all wheel drive
Gearbox, standard
6-speed manual transmission
Gear, optional
-
6-speed Powershift
-
6-speed Powershift
readings
top speed
173 km / h
190 km / h
188 km / h
[187 km / h]194 km / h
192 km / h
[190 km / h]198 km / h
[196 km / h]202 km / h
[200 km / h]Acceleration, 0-100 km / h
12.7 s
12.0 s
10.7 s
[11.2 s]10.1 s
9.9 s
[10.9 s]9.9 s
[10.4 s]9.2 s
[10.0 s]Fuel consumption per 100 km (combined)
4.4 l diesel
5.4-5.7 liters of diesel
5.3 l diesel
5.9 l [6.2 l] diesel
4.7 l diesel
5.4-5.8 liters of diesel
5.2 l [5.4 l] diesel
6.0-6.5 l [6.2-6.5 l] diesel
5.9 l [6.2 l] diesel
5.2 l [5.4 l] diesel
6.2-6.5 l [6.2-6.5 l] diesel
CO 2 emission (combined)
115 g / km
141-149 g / km
139 g / km
154 g / km
[162 g / km]122 g / km
141-152 g / km
135 g / km
[140 g / km]162-169 g / km
[162-168 g / km]154 g / km
[162 g / km]135 g / km
[140 g / km]162-169 g / km
[162-168 g / km]Emission standard according to EU classification
Euro 6
Euro 6d TEMP
5 euro
Euro 6
Euro 6d TEMP
Euro 6
Euro 6d TEMP
5 euro
Euro 6
Euro 6d TEMP
- Values in [] brackets stands for automatic.
