Scagliett aluminum body
290 km / h

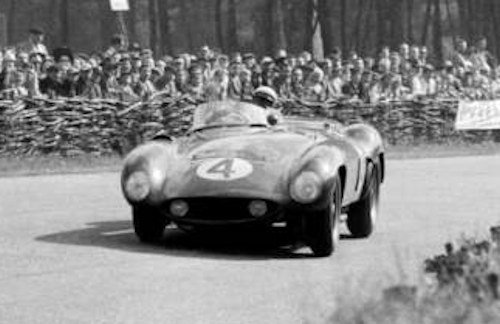

The Ferrari 121LM was a racing sports car from the 1950s that Ferrari built and used by Scuderia in sports car racing in 1955.
Scagliett produced bodywork for four racing cars in 1955. The 121LM was one of Ferrari's first six-cylinder racing vehicles, like the 118LM. The 121LM had a series engine with a displacement of 4412 cc that produced 330 horsepower. The engine was originally conceived as a four-cylinder by Aurelio Lampredi, but it was converted to be able to cope with Mercedes overwhelming competition wins at the time.
For the first time in a race, the 121LM was driven by the Mille Miglia in 1955 with the chassis number 0558LM with a body from Scaglietti and was driven by Eugenio Castellotti . When 24-hour race at Le Mans this year three works cars were registered. Phil Hill and Umberto Maglioli drove the chassis 0558LM, which was already used in the Mille Miglia. The two new vehicles 0532LM and 0546LM were driven by Eugenio Castellotti, Paolo Marzotto , Maurice Trintignant and Harry Schell . All three cars were broken by technical defects, with the car of Harry Schell and Maurice Trintignant with 107 laps still came furthest.
At 1,000 km race from Kristianstad , the 1955 is not the World Sportscar Championship was one, there was the first finish for a factory 121LM. Behind the two Mercedes-Benz drivers Juan Manuel Fangio and Stirling Moss Eugenio Castellotti reached the third overall. Only once there was a factory operation; Umberto Maglioli failed in the Grand Prix of Venezuela with an overheated engine.
After that, all four cars - Maglioli drove in Venezuela chassis 0484LM, a converted 118LM - sold to US private teams that were quite successful with the 121LM. Ernie McAfee won in 1956 with the chassis 0546LM the two SCCA races in Santa Barbara. With the same vehicle, however, he crashed at the 1956 Pebble Beach National Championship Sports Car Road Race . Also, Carroll Shelby , Rory Chery Holmes and Phil Hill won SCCA race with privately reported 121LM.
Ferrari 121LM Technical data (1955)
Four-stroke 6-cylinder inline engine Type 121
Bore × stroke:
102 × 90 mm
3 Weber double carburetor 50 DCO A / 3
330 hp (246 kW) at 6000 rpm
5-speed gearbox (not synchronized),
rear wheel drive, limited slip differential
Frame and body:
Steel tubular frame, aluminum body
worm and sector
Double wishbones, coil springs, lever shock absorbers
De-Dion axle, transverse leaf spring, lever shock absorber
hydraulically operated duplex drum brakes
Track front / rear:
Curb weight (without driver):
up to 290 km / h
