Atkinson cycle Engine
The Atkinson cycle engine is a type of internal combustion engine invented by James Atkinson in 1882. The Atkinson cycle is designed to provide efficiency at the expense of power density, and is used in some modern hybrid electric applications.

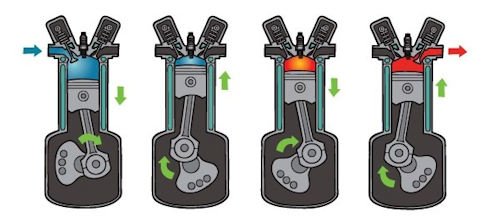

The original Atkinson cycle piston engine allowed the intake, compression, power, and exhaust strokes of the four-stroke cycle to occur in a single turn of the crankshaft and was designed to avoid infringing certain patents covering Otto cycle engines.Due to the unique crankshaft design of the Atkinson, its expansion ratio can differ from its compression ratio and, with a power stroke longer than its compression stroke, the engine can achieve greater thermal efficiency than a traditional piston engine. While Atkinson's original design is no more than a historical curiosity, many modern engines use unconventional valve timing to produce the effect of a shorter compression stroke/longer power stroke, thus realizing the fuel economy improvements the Atkinson cycle can provide.
Modern Atkinson cycle engines
Recently Atkinson cycle has been used to describe a modified Otto cycle engine in which the intake valve is held open longer than normal to allow a reverse flow of intake air into the intake manifold. The effective compression ratio is reduced (for a time the air is escaping the cylinder freely rather than being compressed) but the expansion ratio is unchanged. This means the compression ratio is smaller than the expansion ratio. Heat gained from burning fuel increases the pressure, thereby forcing the piston to move, expanding the air volume beyond the volume when compression began. The goal of the modern Atkinson cycle is to allow the pressure in the combustion chamber at the end of the power stroke to be equal to atmospheric pressure; when this occurs, all the available energy has been obtained from the combustion process. For any given portion of air, the greater expansion ratio allows more energy to be converted from heat to useful mechanical energy meaning the engine is more efficient.
The disadvantage of the four-stroke Atkinson cycle engine versus the more common Otto cycle engine is reduced power density. Due to a smaller portion of the compression stroke being devoted to compressing the intake air, an Atkinson cycle engine does not take in as much air as would a similarly designed and sized Otto cycle engine.
Four-stroke engines of this type with this same type of intake valve motion but with a supercharger to make up for the loss of power density are known as Miller cycle engines.
Rotary Atkinson cycle engine
The Atkinson cycle can be used in a rotary engine. In this configuration an increase in both power and efficiency can be achieved when compared to the Otto cycle. This type of engine retains the one power phase per revolution, together with the different compression and expansion volumes of the original Atkinson cycle. Exhaust gases are expelled from the engine by compressed-air scavenging. This modification of the Atkinson cycle allows the use of alternative fuels like diesel and hydrogen. Disadvantages of this design include the requirement that rotor tips seal very tightly on the outer housing wall and the mechanical losses suffered through friction between rapidly oscillating parts of irregular shape. See External Links for more information.
Vehicles using Atkinson cycle engines
While a modified Otto cycle engine using the Atkinson cycle provides good fuel economy, it is at the expense of a lower power-per-displacement as compared to a traditional four-stroke engine. If demand for more power is intermittent, the power of the engine can be supplemented by an electric motor during times when more power is needed. This forms the basis of an Atkinson cycle-based hybrid electric drivetrain. These electric motors can be used independently of, or in combination with, the Atkinson cycle engine, to provide the most efficient means of producing the desired power. This drive train first entered production in late 1997 in the Japanese-market Toyota Prius.
At this writing, most production full hybrid-electric vehicles use Atkinson cycle engines:
- Chevrolet Tahoe Hybrid electric (four-wheel drive) with a compression ratio of 10.8:1
- Ford C-Max (front wheel drive / US market) hybrid & plug-in hybrid models
- Ford Escape/Mercury Mariner/Mazda Tribute electric (front- and four-wheel drive) with a compression ratio of 12.4:1
- Ford Fusion Hybrid/Mercury Milan Hybrid/Lincoln MKZ Hybrid electric (front-wheel drive) with a compression ratio of 12.3:1
- Hyundai Sonata Hybrid (front-wheel drive)
- Infiniti M35h Hybrid (rear-wheel drive)
- Kia Optima Hybrid (front-wheel drive)
- Lexus CT200h (front-wheel drive)
- Lexus GS450h hybrid electric (rear-Wheel drive) with a compression ratio of 13.0:1
- Lexus HS250h (front-wheel drive)
- Lexus RX 450h hybrid electric (four-wheel drive)
- Mazda 3 SkyActiv (front-wheel drive) with a 13:1 compression ratio (12:1 for North America)
- Mazda CX-5 (front- and all-wheel drive) with a 14:1 compression ratio (13:1 for North America)
- Mercedes ML450 Hybrid (four-wheel drive) electric
- Mercedes S400 Blue Hybrid (rear-wheel drive) electric
- Toyota Camry Hybrid electric (front-wheel drive) with a compression ratio of 12.5:1
- Toyota Highlander Hybrid (2011 and newer)
- Toyota Prius hybrid electric (front-wheel drive) with a (purely geometric) compression ratio of 13.0:1
- Toyota Yaris Hybrid (front-wheel drive) with a compression ratio of 13.4:1
- Honda Accord Plug-in Hybrid
