Japan
Sports Cars
1960s

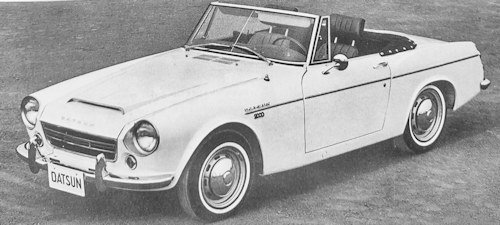

Datsun Sports Fairlady 2000 SRL311/ 2000 SR311

Datsun Sports Fairlady 2000 Technical details and specifications SRL311/ 2000 SR311

Production period:

1967 to 1970

Class:

Sport car

Body versions:

Roadster

Engines:

Gasoline: 1.6-2.0 litres

Power:

99-110 kW

Length:

3955 mm

Width:

1495 mm

Height:

1325 mm

Wheelbase:

2280 mm

Curb weight:

960 kg



The Nissan Fairlady sports SR311 and SRL311 was a small 2 seat open sports car built from 1967 to 1970.

History

The Sports was a family of rear wheel drive roadsters produced by Nissan in the 1960s over five revised forms with two major generation body changes.

The introduction of the new models SR311 and SRL311 in the model year 1967 represented a major revision. The new model was first shown at the 1964 Tokyo Motor Show. The cars were built from March 1967 to April 1970 and had a Nissan U20 engine, a four-cylinder in-line engine with 1982 cc in addition to the previous 1600cc, and then for a production vehicle unusual manual five-speed gearbox, the distribution of weight is  55% to the front axle, and 45% for the rear axle.The new single-overhead camshaft (SOHC) engine delivered 99 kW. Also available was a "competition package" with dual Mikuni / Solex carburettors and a sharper camshaft, which helped the engine to 110 kW of power.

PERFORMANCE 2000cc

  • Engine Capacity 120.94 cu in, 1,982 cu cm
  • Fuel Consumption 23.5 miles imp gal, 19.6 mlUS gal, 12 1 X 100 km
  • Max Speed 124 mph, 199.6 km/h
  • max power (SAE): 150 hp at 6,000 rpm
  • max torque (SAE): 143 1b ft, 19.7 kg m at 4,800 rpm
  • max engine rpm: 7,000
  • specific power: 75.7 hp/l
  • power-weight ratio: 13.4 lb/hp, 6.1 kg/hp
  • acceleration: standing 1/4 mile 15.4 sec, 0—50 mph (0— 80 km/h) 6.4 sec
  • max speeds: 37 mph, 59.6 km/h in 1st gear; 58 mph, 93.4 km/h in 2nd gear; 83 mph, 133.6 km/h in 3rd gear; 108 mph, 173.9 km/h in 4th
  • gear; 124 mph, 199.6 km/h in 5th gear



PERFORMANCE 1600cc

  • max power (SAE) 96 hp at 6,000 rpm
  • max torque (SAE) 104 1b ft, 14.3 kg m at 4,000 rpm
  • max engine rpm 6,000
  • acceleration standing 1.4 mile 17.9 sec

In 1968, the entire series was revised and received a new body with a higher windshield, an integrated rear-view mirror, the first Japanese car to adopt a collapsible steering shaft, the addition of a padded dashboard and headrest, the three-point seat belt, the door outer handle, the switch, The shape of protrusions such as the rear-view mirror has been changed to comply with North American safety standards. The engines got new emission control systems and the 1600s was continued as an additional model even after the actual end of production. By July 1968 also added was a hard top model that does not have a soft top for both SP / SR.

By late 1968 more changes to the Steering gearbox, muffler, wiper, license plate lamp, tail lamp, etc.

The Datsun 2000 was praised as a low-priced sports car. The main reason for his production was to build a Datsun image in racing. John Morton, Paul Newman and others were drivers. May 1967 the Fairlady 2000 finishes 1-2-3 in the " 4th Japan Grand Prix " GT class. The list price was the lowest in his class, but won both the Production C class (with Mikuni Solex carburettor) and the Production D class (with Hitachi SU carburettors) in the SCCA races.A well-prepared Datsun 2000 ran up to 193 km / h and consumed less than 7.8 l of gas per 100 km. The red area of the rev counter began at exactly 7000 rpm, which 224 km / h in fourth gear a five-speed transmission equivalent. The later successor was the, more elegant and popular Z series.

March 1967 - Released "Fairlady 2000" (SR311 type) as an addition to "Fairlady 1600". Equipped with a newly designed in-line 4-cylinder SOHC 1,982cc, U20 type engine (145 horsepower / 6,000 rpm) equipped with two solex carburettors, and a 5-speed transmission. The announced maximum speed is 205km/h, making it the first domestically produced car that exceeds 200km/h, and is also attracting attention as a high-performance car. Later, it became a model praised as the completed form of "Fairlady". 1969 The successor model " Fairlady Z " is announced, but production continues until April 1970.

Categories
Datsun | Nissan
Title
Datsun Sports Fairlady 2000 SR311 (1967-1970)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
Japanese Vehicles from 1960s | Vehicles launched in 1976 | Japanese Sports | Roadster | Sports Cars

Technical

Technical
  • Datsun Sports 2000 SR311 Technical details and specifications  (1967-1970)

    ENGINE 2000 cc
    front, 4 stroke
    cylinders: 4,in line
    bore and stroke: 3.43 x 3.27 in, 87.2 x 83 mm
    engine capacity: 120.94 cu in, 1,982 cu cm
    compression ratio: 9.5
    cylinder block: cast iron
    cylinder head: light alloy
    crankshaft bearings: 5
    valves: 2 per cylinder, overhead, rockers
    camshafts: 1, overhead
    lubrication: gear pump, full flow filter
    lubricating system capacity: 12.50 imp pt, 15.01 US pt, 7.1 1
    carburation: 2 Mikuni-Solex down-draught twin barrel carburettors
    fuel feed: mechanical pump
    cooling system: water
    1600 CC
    engine capacity 97.33 cu in, 1,595 cu cm
    stroke 2.63 in, 66.8 mm
    2 Hitachi HJB-38W-3 carburettors


    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate
    gearbox: mechanical
    gears: 5 + reverse
    synchromesh gears: 1st, 2nd, 3rd, 4th ,5th
    final drive: hypoid bevel
    axle ratio: 3.700.

    CHASSIS
    box-type ladder frame, X reinforcements
    front suspension : independent, wishbones, coil springs, anti-roll bar, telescopic dampers
    rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.

    STEERING
    cam and peg.
    turning circle (between walls): 32 ft, 9.8 m

    BRAKES
    front disc,rear drum

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 50 Ah
    generator type: alternator, 300 W
    ignition distributor: Hitachi

    DIMENSIONS AND WEIGHT
    wheel base: 89.75 in, 2,280 mm
    front track: 50.20 in, 1,275 mm
    rear track: 47.25 in, 1,200 mm
    overall length: 155.70 in, 3,955 mm
    overall width: 58.85 in, 1,495 mm
    overall height: 51.20 in, 1,300 mm
    ground clearance: 5.70 in, 145 mm
    dry weight: 2,006 1b, 910 kg

    © Motor car History

Service
  • Datsun Sports 2000 SR311 Practical Instructions and Service Guide (1967-1970)



    2000cc
    fuel: 98 oct petrol
    engine oil: 12.50 imp pt, 15.01 US pt, 7.1 1, SAE 10W-30, change every 3,000 miles, 4,800 km
    gearbox oil: 4.60 imp pt, 5.50 US pt, 2.6 1, SAE 90, change every 25,000 miles, 40,200 km
    final drive oil: 1.60 imp pt, 1.90 US pt, 0.91, SAE 90, change every 25,000 miles, 40,200 km
    cooling system capacity: 15 imp pt, 17.97 US pt, 8.5 1
    greasing : every 6,000 miles, 9,700 km, 20 points
    tappet clearances: inlet 0.008 in, 0.20 mm, exhaust 0.012 in, 0.30 mm
    valve timing: inlet opens 30° before tdc and closes 70° after bdc, exhaust opens 70° before bdc and closes 30° after tdc
    normal tyre pressure: front 21 psi, 1.5 atm, rear 21 psi, 1.5 atm.
    width of rims: 4"
    tyres: 5.60 x 14
    fuel tank capacity: 9.5 imp gal, 11.3 1-JS gal.
    carrying capacity: 353 1b, 160 kg

    © Motor car History
